Powercall DX-5200 TB3.7 Manual

200/100 watt electronic siren

Hide thumbs

Table Of Contents

WARNING TO ALL

POWERCALL

INSTALLERS

It is IMPERATIVE that you check your speaker wiring of your unit before

installing our siren. If you are replacing an existing unit, the speaker wiring

may not be the same. This could damage your siren beyond repair.

ENSURE THAT YOUR 2 SPEAKER WIRES FROM

YOUR SPEAKER ARE GOING DIRECTLY TO THE

SPEAKER 1+ AND 1– OR SPEAKER 2+ AND 2-.

DO NOT CROSS THEM, WIRE THEM IN

PARALLEL, SERIES OUR COMMON. SPEAKERS

ARE A DIRECT WIRE INSTALLATION.

Table of Contents

Need help?

Do you have a question about the DX-5200 TB3.7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Powercall DX-5200 TB3.7

Page 1 WARNING TO ALL POWERCALL INSTALLERS It is IMPERATIVE that you check your speaker wiring of your unit before installing our siren. If you are replacing an existing unit, the speaker wiring may not be the same. This could damage your siren beyond repair.

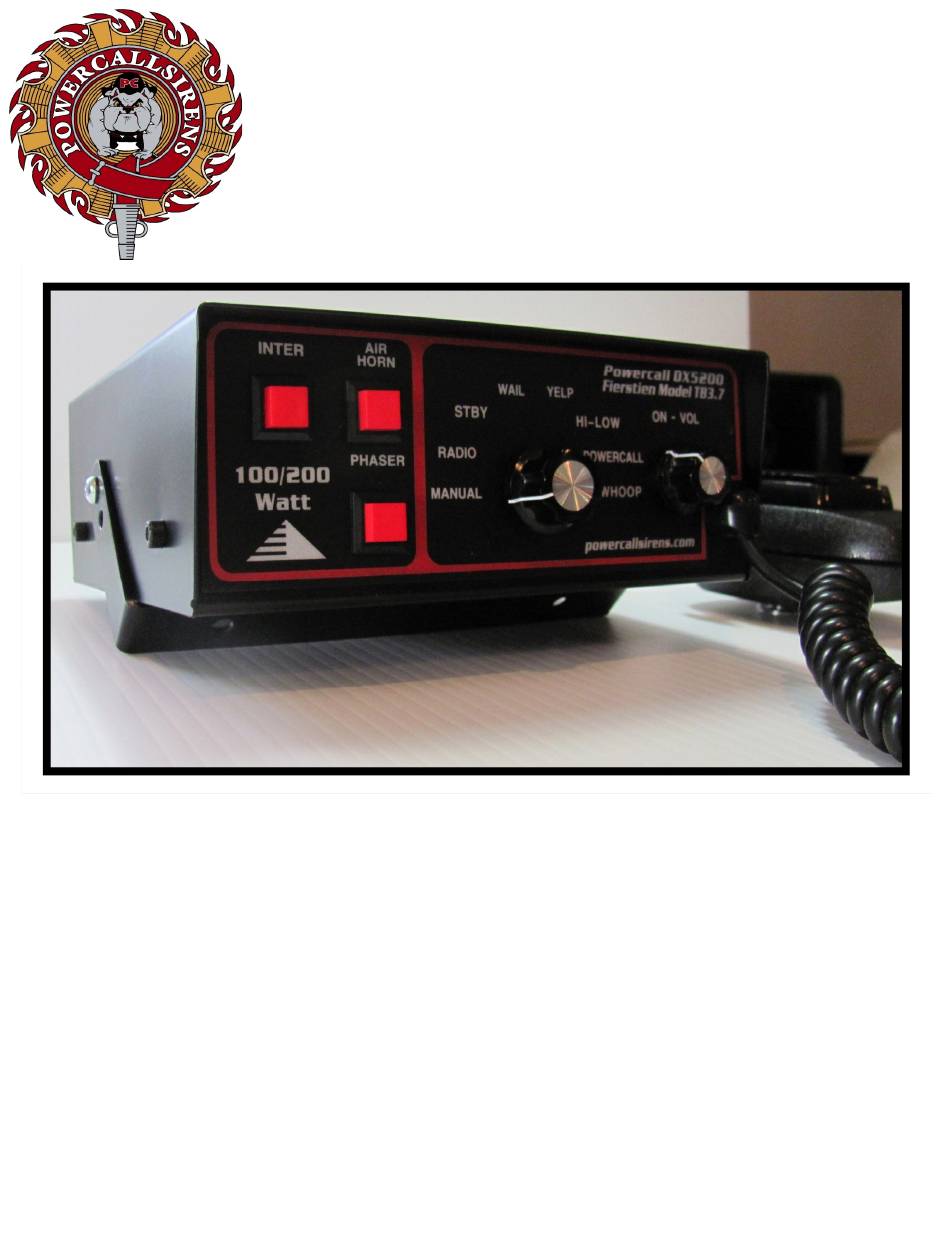

Page 2 TB3.7 200/100 Watt Electronic Siren Thank you for your purchase of the new Powercall DX5200 TB3.7 Electronic Siren. This siren has the “Old School” tones that has been highly requested by our customer base. This is a 200 Watt siren that can be wired for 100 Watts using 1 speaker or 200 watts using 2 speakers.
Page 3 FROM LEFT TO RIGHT SPK1+ AND SPK– Connect these terminals to one speaker. The polarity generally doesn’t matter and you will do no damage by hooking them up backwards. Your speaker should be 11ohm. (See speaker note enclosed in this siren packet) Ground - Hook this wire to a good ground source, free of paint, primer or any obstructions.
Page 4 N/A Terminals - These terminals are not used. Do not hook anything to them. SPK2+ AND SPK2– Connect these terminals to a second speaker if applicable. The polarity generally doesn’t matter and you will do no damage by hooking them up backwards. Your speaker should be 11ohm (See speaker note enclosed in this siren packet) We recommend using these terminals for 100 watt use so the wires are away from the ground and power terminals.
Page 5 Return & Warranty Procedures If your Powercall has a problem, you have damaged the siren or it needs service, please do the following: 1) Write or type out an explain of what the problem is, what type of siren you have and what may or may not be working.
Page 6 The Triton speaker is the #1 recommended speaker for all of my Powercall Sirens. It’s a very inexpensive speaker, starting at $99.00 and is available on our website for immediate purchase.
