TeslaMeter 2000

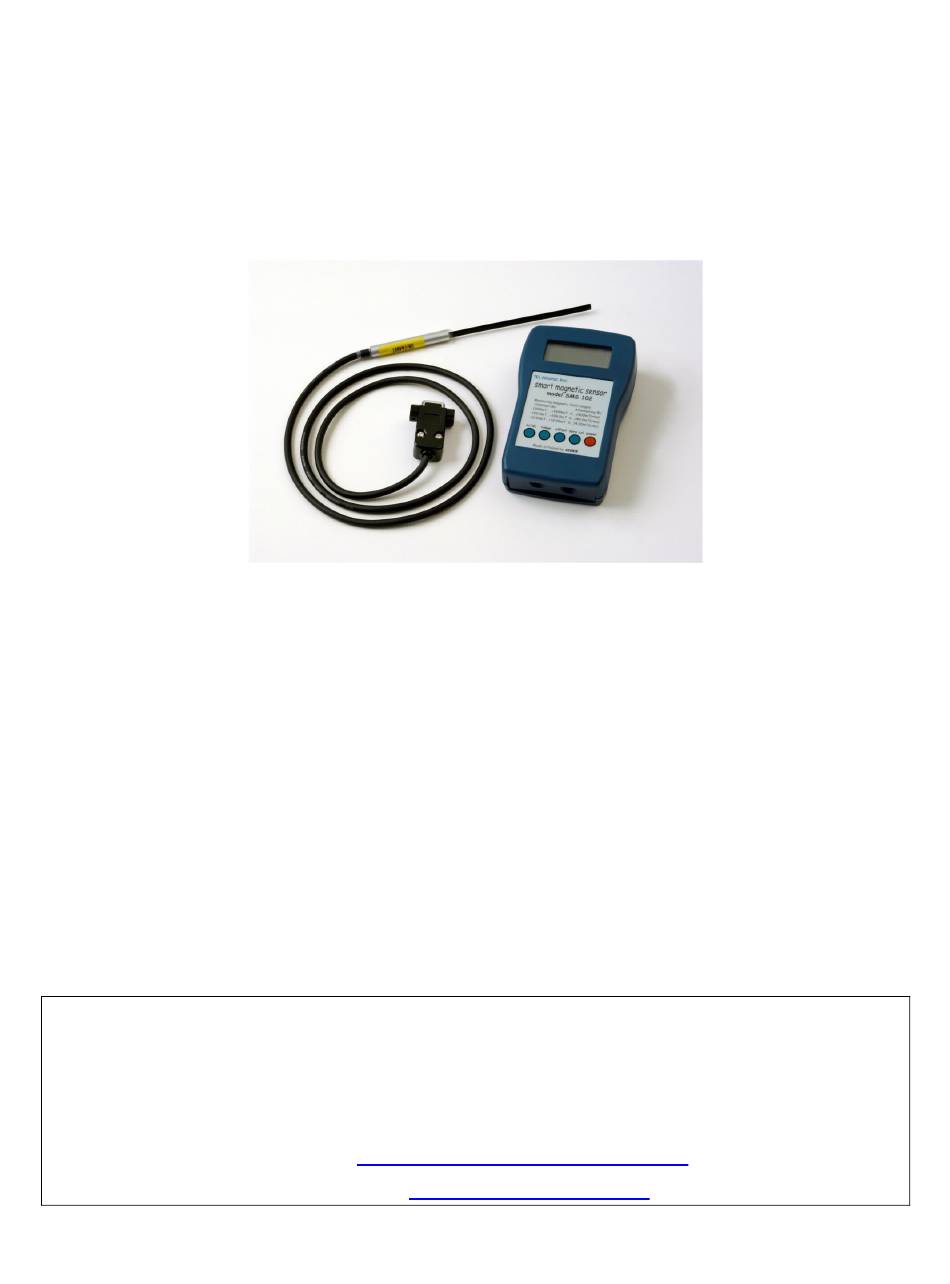

The Smart Magnetic Sensor
Features:
• Probes for Axial or Transverse magnetic fields
• Ranges: 2000, 200, 20mT and Auto
• Analog and Digital output
• 4½ Digit LCD readout
• Auto shut-off
• Temperature compensated sensor
TEL-Atomic, Incorporated
P.O. Box 924
Jackson, MI 49204
1-800-622-2866 – FAX 1-517-783-3213
email:
telatomic@mindspring.com
website:
www.telatomic.com
Advertisement
Table of Contents
Summary of Contents for Tel-Atomic SMS-102
- Page 1 • Probes for Axial or Transverse magnetic fields • Ranges: 2000, 200, 20mT and Auto • Analog and Digital output • 4½ Digit LCD readout • Auto shut-off • Temperature compensated sensor TEL-Atomic, Incorporated P.O. Box 924 Jackson, MI 49204 1-800-622-2866 – FAX 1-517-783-3213 email: telatomic@mindspring.com website: www.telatomic.com...
-
Page 2: Specifications

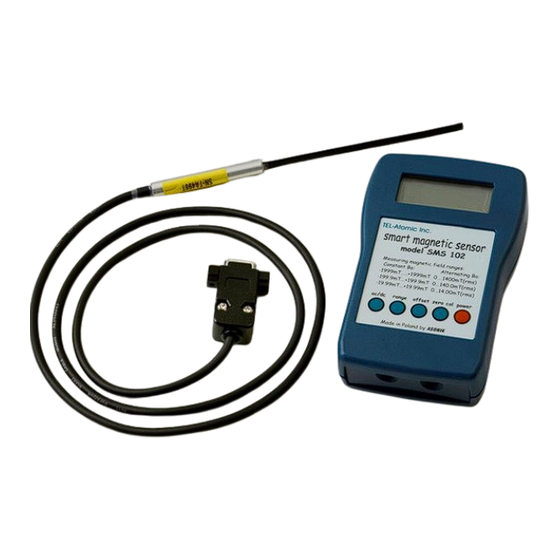

Introduction Tel-Atomic's new pocket size TeslaMeter 2000 is unique for the features offered. The Sensor will measure axial or transverse magnetic fields up to 2000 mT, and can be set for Auto- range. However, if one of the 3 manual ranges is selected, an analog output of 2.5 volts for FSD of each range is possible, making it easy to use with a computer interface. -
Page 3: Operating Procedure
Operating Procedure 1. Slide open the battery door at the back of the unit. 2. Install the 4 1.5V AAA battery and replace the battery door. 3. Plug the sensor into the connector at the top of the unit. 4. Turn on the TeslaMeter 2000 by pressing the POWER switch for at least 1 sec. The TeslaMeter 2000 is manually operated by 5 switches. - Page 4 2000. The Zero Cal function is not to be used to zero the Hall sensor offset when the sensor is in a given magnetic field. (See offset) Offset This button allows one to zero the readout value when the sensor is in a given magnetic field. The readout offset is then measured and memorized.
- Page 5 complete graph of data since recording began. The F1 key is operative during both the collecting of data as well as for displaying data after data collection has been stopped. After pressing F1 and displaying all of the data you can “zoom” in on a special region of interest. Press the SHIFT key and with the mouse choose the region of interest you want to examine.
