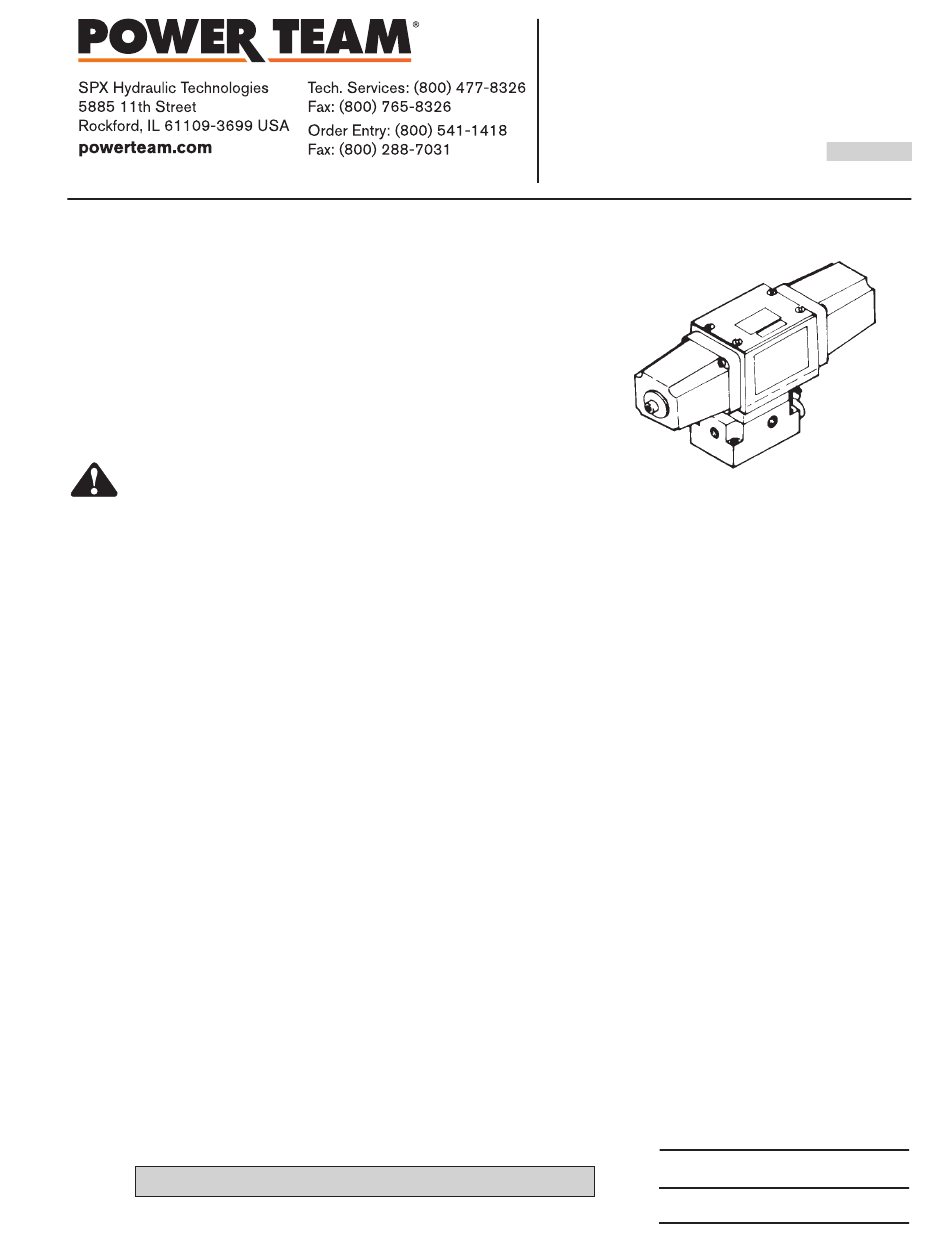

Power Team 9572 Operating Instructions

2 Position, 4-Way Pump or Remote Mounted – Solenoid Operated
NOTE:
•
Read and carefully follow the operating instructions
before installation and use of this valve. Most problems
with new equipment are caused by improper operation
or installation.
•
Inspect the valve upon arrival. The carrier, not the manufacturer,
is responsible for any damage resulting from shipment.
WaRNING: To help avoid personal injury,
Hydraulic Hose
•
before operating the pump, tighten all hose connections using the proper tools.
•
Do not overtighten the connections. Connections need only the tightened securely and leak-free.
Overtightening may cause premature thread failure or high pressure fittings to split at pressures lower
than their rated capacities.
•
Hydraulic line Disconnections:
•
Fully retract the cylinder and remove any load. Then slightly advance the cylinder and shut the pump
motor off. Cover the connections with protective material and disconnect the connection slowly to
release line pressure.
•
Should a hydraulic hose ever burst or rupture, immediately shut off the pump. Never attempt to grasp a
leaking hose under pressure with your hands. The force of the escaping hydraulic fluid could cause
serious and permanent injury.
•
avoid any conditions which could damage the hose and impair the pump or valve's performance. Never
allow the hose to kink, twist, curl or bend so tightly that the oil flow within the hose is blocked or
reduced. This could damage the hose and possibly result in serious injury to persons working in the
immediate vicinity.
•
Do not subject the hose to any potential hazard (ex: fire, extreme heat or cold, heavy impact or sharp
surfaces) which might rupture or weaken the hose.
•
Do not use the hose to lift or move the equipment connected to it.
•
Periodically inspect the hose for signs of wear. Never use a defective hose with any pressurized
equipment.
•
always consult the manufacturer before painting the hose(s). Never paint the couplers!
•
Hose material and coupler seals must be compatible with the hydraulic fluid used.
•
avoid contact with creosote-impregnated timber or fabrics.
CONTROl ValVE
•
Do not install quick couplers or allow restrictions in the hydraulic return line located between the
hydraulic pump and a remote valve set-up.
•
Do not allow the valve case pressure (as measured on the return line from valve to pump at the valve) to
exceed 500 PSI. Refer to case pressure check as detailed in the valve set-up procedure in these
instructions.
•
Do not exceed either the pump, the control valve, or the cylinder's hydraulic pressure rating.
Note: Shaded areas reflect last revision(s) made to this form.
© SPX Corporation
ValVE aSSEMbly

SaFETy PRECaUTIONS

Form No. 102479
Operating Instructions for:
9572
9592
9593
61084
61408
Sheet No.
Rev. 4
65285
65285-24
65285-230
65285-CE
1 of 2
Date: 25 May 2012
