Summary of Contents for E-Broh Spuma Li

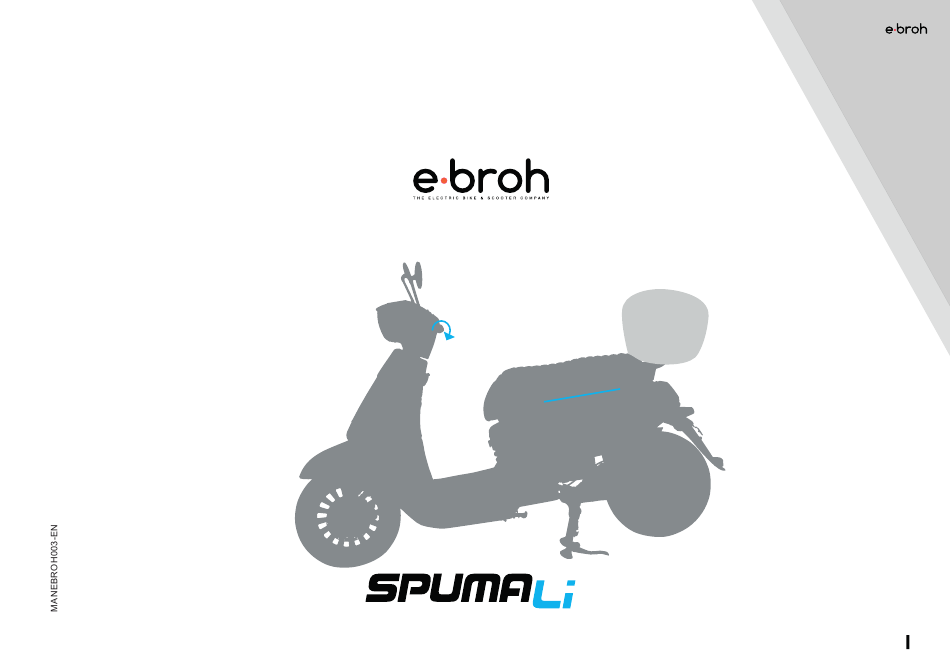

- Page 1 Manual for quick start Manual for electrical motorcycles SPUMA li.
-
Page 3: Notice For User
6. Please contact the after-sales service for replacement or purchase of original parts. 7. Do not lend your Spuma Li to those who can´t operate an Ebroh scooter for the safety of the others and for preventing unnecessary damage to your scooter. -
Page 4: Safety Notice
1. Using safety clothes is very important. Use a quality safety helmet. 2. Know your Spuma Li. Your riding skills and mechanical knowledge are the basis for safe riding. You are advised to practice your riding on open, quiet roads, and to know the mechanical performance and operation methods at first. -
Page 5: Table Of Contents
2. Cautions ..........................................................3 3. Safety Notice ........................................................4 4. Parts Information ......................................................6 5. Operational Guide for Ebroh scooter Spuma Li ........................................8 6. Dos and Don´ts in Riding ..................................................... 13 7. Maintenance, Repair and Storage ..............................................15 8. Guarantee Policy ......................................................19... -
Page 6: Parts Information
PARTS INFORMATION 1. Head light led 12. Front disc brake. 2. Front shock absorber. 13. Central easel 3. Battery 14 Rear tyre 4. Rear carrier 15 Front tyre 5. Rear light. 16 Mirrors. 6. Intermittent Back Indicator led. 17 Rear fender. 7. - Page 7 Display information Según modelo 1. Left turn 7. Battery percentage. 2. Right turn 8. Throttle handle failure. 3. High beam light 9. Brake fault. 4. Stop or parking indicator (according to model) 10. Motor fault. 5. Gear shift indicator. (according to model) 11.
-
Page 8: Operational Guide For Ebroh Scooter Spuma Li
Operational Guide Open the trunk Insert the key into the lock hole and Lock the turn it. steering Apagado y encendido para abrir y handlebar bloquear el maletero. Turn to to lock the steering handlebar. Open the trunk Start the scooter... - Page 9 Operational Guide Left Combination High/Low Beam Light Turn Indicator Horn. High/Low Beam Light: Press the upper part to turn on the high beam light; press the lower part to turn on the low beam light. High Beam Light Low Beam Light Turn Indicator: Push the button left to turn on the Left Turn (2) Indicator;...
- Page 10 Operational Guide Right Combination Double flash. Parking light Motor Switch. Reverse Gear. Steering Handlebar Front Brake. Change. Maintenance switch (upon model)
- Page 11 Operations Guide BATTERY USE ENVIRONMENT The battery is to be used at the environmental temperature range between -10 C and 45 C. Do not expose the battery to water, beverages or corrosive liquids to prevent possible leakage, overheat, smoking, fire or explosions. Do not keep the battery close to a heat source, open fire, inflammable and explosive gases and liquids.
- Page 12 Operational Guide Attention: If the battery is not full after charging for over than 24 hours, please stop charging and contact the after-sales service. To maximize battery life, users are advised to keep the battery percentage within the range of 20% to 80% as practicably as possible. Please use the accelerator handlebar gently in a normal ride.
-
Page 13: Dos And Don´ts In Riding
Dos and Don´ts in Riding Checks before Riding CHECK DESCRIPTION KEYS Steering Handlebar 1. Steadiness. 2. Flexible steering. 3. No axial displacement or loosening. Braking 1. Braking handlebar has a 5 to 9 mm idle travel 2. The air pressure range of the front tyre is between 1,38 and 1,72 bars (20 and 25 psi);... - Page 14 Dos and Don´ts in Riding BREAKING PRECAUTIONS Always balance the scooter Ebroh before braking. If the tyres are locked resulting from excessive braking force, loosen the grip on the braking handlebar and the tyres will be working again and the scooter Ebroh will be stabilized. If the front tyre is locked, the scooter Ebroh will lose the steering power.
-
Page 15: Maintenance, Repair And Storage
Maintenance, Repair and Storage To extend the service life of the scooter Ebroh and for a safe, comfortable ride, users are advised to have the scooter checked and maintained on a regular basis. A scooter Ebroh not used for a long period of time also needs to be checked on a regular basis. REGULAR MAINTENANCE. - Page 16 SCOOTER WASHING Please use a hose and wash the scooter Ebroh with running water and neutral detergent. Wipe the scooter Ebroh after washing with a piece of soft cloth to prevent scratching. WARNING: Never use a pressure water to wash the scooter Ebroh. Do not wash the sides, the rear and the inner of the battery compartment with a pressure washer.
- Page 17 REGULAR MAINTENANCE CHECKLIST BRAKES WHEEL BEARING LIGHTS VIBRATION DAMPER STRUCTURAL CHECK HORN CENTRAL STAND REGULAR SAFETY AND PERFORMANCE CHECK ELECTRIC PARTS STEERING BEARING FUSE BATTERY TYRES MAJOR PARTS CHECK MAIN WIRING HARNESS STRUCTURAL CHECK LUBRICATION CONTROL SYSTEM REGULAR MAINTENANCE CHECKLIST FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD...
- Page 18 REGULAR MAINTENANCE CHECKLIST FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD 1. Low battery. 1. Charge the battery and check whether the plug is properly plugged in and whether the charger is 2. Under-inflation of tyres. damaged. 3. Frequent braking and overload. 2.
-
Page 19: Guarantee Policy
REGULAR MAINTENANCE CHECKLIST FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD Motor over-temperature Stop the scooter Ebroh and restart it later Please check the wires of the steering handlebar or Steering handlebar failure send the scooter Ebroh to the service centre for professional checks. -
Page 20: Technical Information
Technical information KEY FEATURES Weight 80 Kg. Maximum Designed Speed 45 km/h. Rated Voltage 60 V. Maximum Load 200 Kg. Designed Capacity 2 persons homologated... - Page 21 CUADRO Front Damper Sleeve and oil damping Amortiguador trasero Spring and oil damping Front Tyre Specifications 110 - 70 -12 Rear Tyre Specifications 110 - 70 -12 Front Brake Mode Disc brake Rear Brake Mode Disc brake Minimum Ground Clearance 170 mm.
- Page 22 Maintenance Record. FAULT CAUSE AND DATE FAULT DESCRIPTION TROUBLESHOOTING SERVICE STATION SERVICEMAN REMARKS dd/mm/yy METHOD...
- Page 23 FAULT CAUSE AND DATE FAULT DESCRIPTION TROUBLESHOOTING SERVICE STATION SERVICEMAN REMARKS dd/mm/yy METHOD...
- Page 24 Oficina · +34 876 768 040 info@ebroh.es www.ebroh.es Plataforma Logística Zaragoza PLAZA - c/ Tarento, 9 - 50197 - Zaragoza (Spain)
