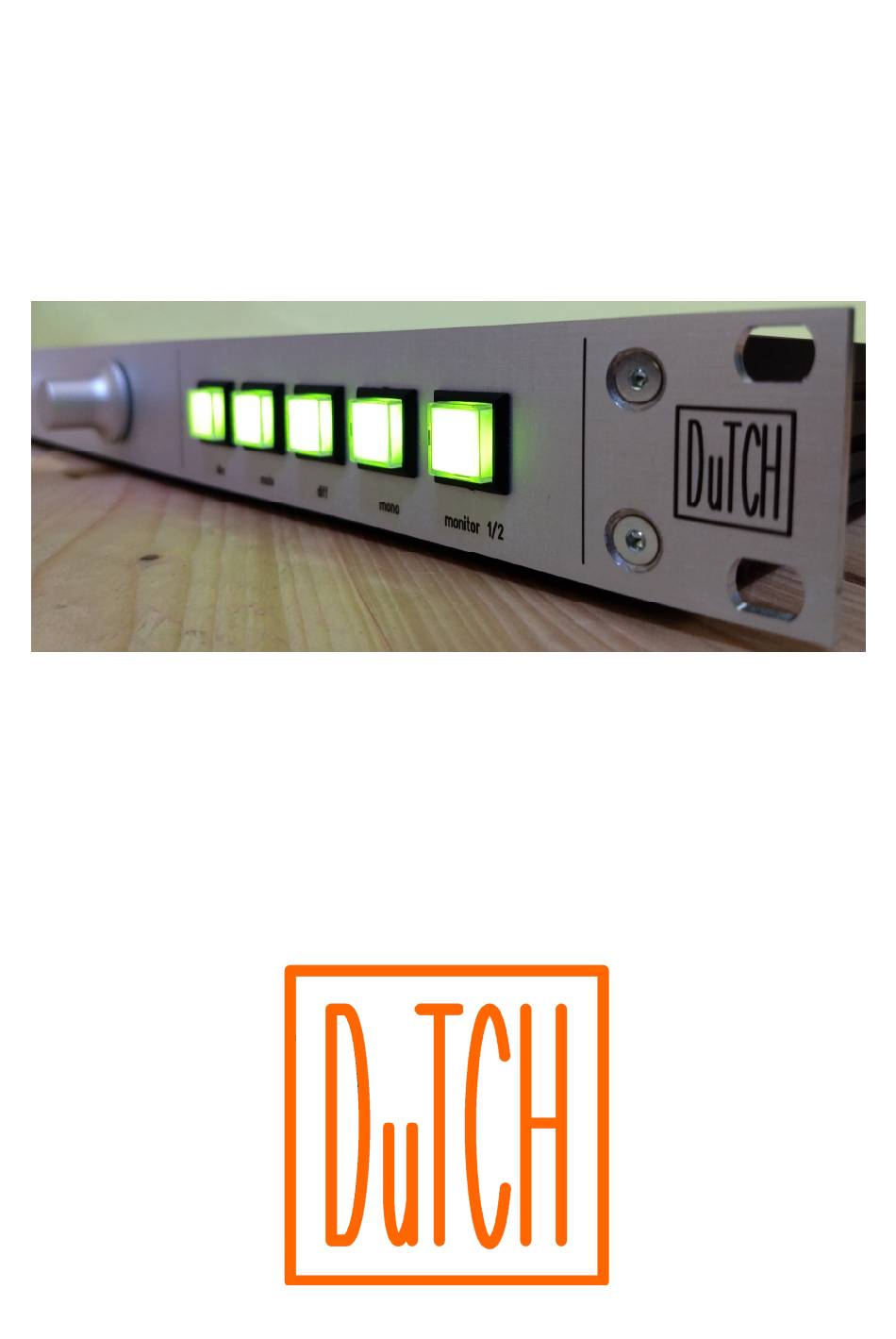

- Page 1 DuTCH audio MC1 monitor-controller www.dutch.audio...
- Page 2 DuTCH audio MC1 manual (v1.0 20-11-2018) Thank you for purchasing the DuTCH audio MC1 monitor controller. In this manual we will explain how this device works and how to use it. Basics: The MC1 is a 1u 19 inch monitor-controller with durability and easy control in mind.
- Page 3 Rotary encoder and display Monitor level In the centre of the panel you will find the multifunctional rotary encoder and the LED display. When you turn the encoder, you will change the monitor output level with a 64 steps range. Every step is ~1dB attenuation, 64 is no attenuation and the maximum attenuation at 01 is approximately ~-64dB, 00 means silence/muted.
- Page 4 Technical: Specifications: Input resistance: 10Kohm 0 and 4.5Kohm (depending on attenuator setting) Output resistance: between Dynamic range: >110dB(A) Input voltage 100 to 240VAC 50/60HZ. Power consumption approx 5 watt Unit size: standard 1u 19 inch, depth 25cm Weight: approx 2kg Some notes on passive circuitry: This device is built around passive circuits (relays and resistors), basically meaning it’s a straight wire.
