Compatible with Reloop RMX-10/22i/33i/60/80 and all
future Reloop products with INNOFADER compatible logo
CAUTION!
For your own safety, please read this operation manual carefully before
initial operation! All persons involved in the installation, setting-up,
operation, maintenance and service of this device must be appropriately
qualified and observe this operation manual in detail. This product
complies with the requirements of the applicable European and national
regulations. Conformity has been proven. The respective statements
and documents are deposited at the manufacturer.

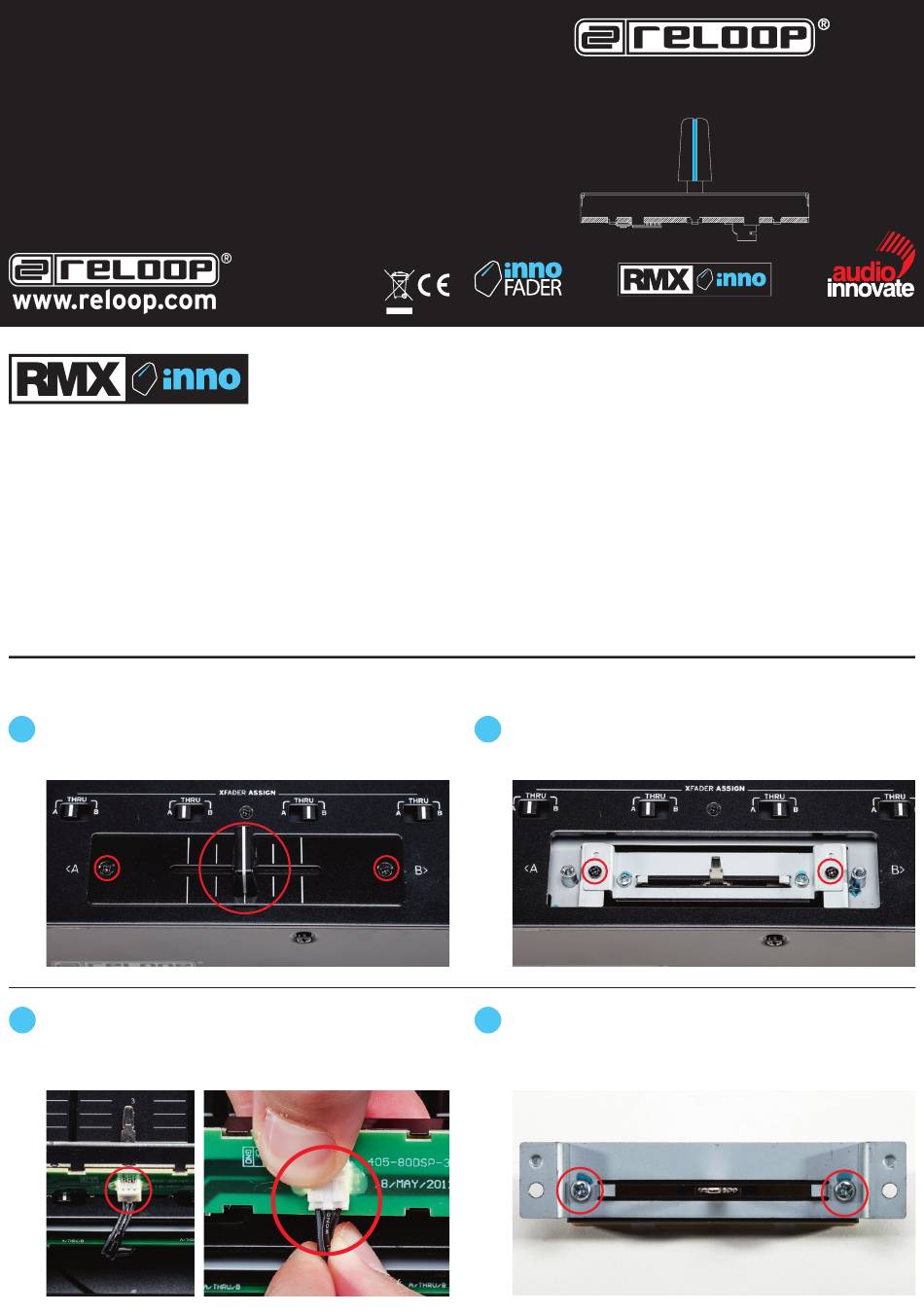

HOW TO REPLACE THE CROSSFADER:
1
Remove the fader cap and the two screws shown in the red
circle. Take off the crossfader plate carefully.
3
Unplug the crossfader connection cable by slightly pulling
it out of the socket connector, while holding one thumb on
the connection shaft. Please do this very carefully.
V1.5
Warning! Dismantling your mixer could invalidate the warranty. If you are
unsure of your ability to safely carry out this work then it is advised that
you leave it to a qualified service technician
Check compatible mixers on
Safety instructions: Please always make sure the mixer is powered off
and the power plug is unplugged.
2
Remove the two screws shown in the red circle.
4
Remove the two screws shown in the red circle. Take off
the mounting plate.
INSTALL INSTRUCTIONS
www.reloop.com/reloop-rmx-innofader
