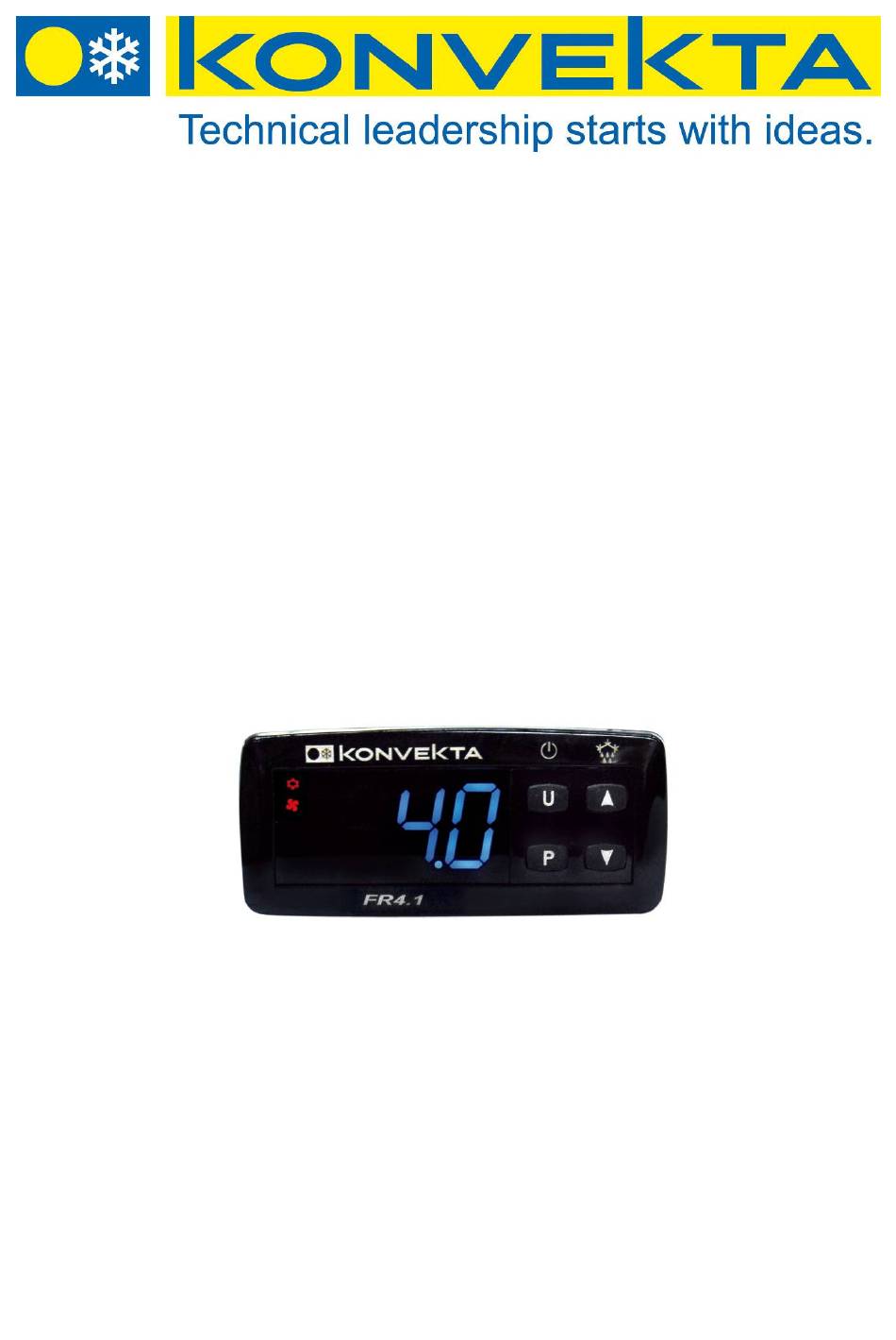

- Page 1 Instructions for installation and service for control unit FR4.1 12 - 24 Volt DC Konvekta AG Am Nordbahnhof 5 34613 Schwalmstadt ID#: 11002347AA Germany Version: A00 Tel.: +49 ( 0 ) 66 91 / 76 – 124 Fax: +49 ( 0 ) 66 91 / 76 - 200 Vailed from 08/2014 E-Mail: tkd@konvekta.com...
-
Page 2: Table Of Contents
2.1 LED-display .........................4 2.2 Programming Menu ......................4 2.3 Connecting and Safety instructions..................5 2.4 Functions of buttons ......................6 2.5 Factory setting / delivery state FR4.1...................6 Switching-on the unit ......................7 3.1 Switching-on the refrigeration unit by button of FR4.1............7 3.2 Indication and change of setpoint ..................7 3.3 Sampling of operating hours ....................8... -
Page 3: Technical Data Of Control Unit
1 Technical data of control unit Type / operating voltage: KONVEKTA part no.: FR4 / 12 – 24 V H11-002-347 Housing: ..........UL 94 V0 plastic material Dimensions: ......... frontal: 78x35 mm; depth: 64 mm Mounting: ..........panel mounting in a 29x71 mm panel cut-out Frontal protection: ....... -
Page 4: General Description Of The Control Unit
The blower can be activated during defrosting upon request. The sensor is suitable for refrigera- tion. The control unit FR4.1 is suitable for refrigeration as well as heating applications (only hot-gas heating). Supply voltage may be between 10 and 28V. -
Page 5: Connecting And Safety Instructions
Installation and mounting The control unit FR4.1 shall be mounted on panel in a 71x29 mm hole and fixed by the fastening frame. For a faultless operation the ambient temperature should be between 0 und 50 ° C. Please avoid intense vibration, aggressive gases, high fouling or humidity. -
Page 6: Functions Of Buttons
Delivery state/factory setting of control unit FR4.1 will be as follows: Refrigeration with hot-gas defrosting! (see point 7.1. on page 11) Refer to the Konvekta set values in column „ factory setting.” from the enclosed parameter list (see point 8 page 12 to 18)! 11002347AA date of change: 20.08.2014... -
Page 7: Switching-On The Unit
Mains operation: Plug in power plug Switching-on the refrigeration unit by button of FR4.1 Press button for 3 seconds. The display shows “Pr2” blinking, afterwards the current room tem- perature will be indicated. Indication and change of setpoint Press button once, alternately blinking appear „SP“... -
Page 8: Sampling Of Operating Hours
In case of use as a chilling unit the parameter „S.LS” has to be adjusted to 0! Sampling of operating hours Switch-on control unit FR4.1 with button Press button once. Now the total operating hours of the refrigeration unit will be indicated for approx. -
Page 9: Adjustment Of Parameters In The Menu
If you replace a FR1, FR2 or FR3 with the FR4 and the external ON-OFF-button should be used furthermore or further instruments such as temperature recorder or heating should be switched on together with the FR4.1 by an external button, you have to change parameter „ t.UF“ in group „ t.S“... -
Page 10: Conversion To Cooling - Heating With Hotgas - Defrosting With Hotgas
Otherwise risk of damages to compressor. 6 Control of defrosting Factory setting of control unit FR4.1 is hot-gas defrosting. In case of use in refrigeration units with recirculated air defrosting the following parameters have to be changed: parameter „d.dt“ in group „... -
Page 11: Configuration Of The Parameters With "Fr 4 Copy-Key
7 Configuration of the parameters with “FR 4 copy-key” FR4 copy-key: Konvekta part no. H11-001-396-C for FR4, FR4.1 and FR4 Pharma The unit has a plug socket. Via this plug socket the operating parameters are transmitted from and to the unit. For this the FR4 copy-key with 5-pole plug is used. The FR4 copy-key is used for fac- tory programming of units that should have the same parameter configuration, or for a backup of the programming of a unit so that this can be reconstructed quickly if required. -
Page 12: Logic >> Explanations For The Functions Of The Control Conditions
8 Logic >> Explanations for the functions of the control conditions 8.1 Cooling and defrosting with hot gas >> delivery state FR4.1 Cooling: COMP active (compressor on) FAN active (fan on) DEF inactive (magnetic valve off) Hot gas defrosting: COMP active (compressor on) -
Page 13: Connection Diagram And Parameter Chart
9 Connection diagram and parameter chart 9.1 Connection diagram 9.2 Parameter chart Group SP (parameter of the setpoint) [refers to Pr1] Par. Description Range factory setting S.SA Active setpoint 1 ÷ 2 Setpoint 1 S.LS ÷ S.HS SP2 Setpoint 2 S.LS ÷... - Page 14 Group In (parameter concerning measurement inlets) Par. Description Range factory setting ı.SE Sensor type Pt - nt ı.C1 Calibration sensor Pr1 (cell) -30 ÷ 30 -1.5 ° C / ° F ı.C2 Calibration sensor Pr2 (evaporator) -30 ÷ 30 -1.5 °...
- Page 15 Group dF (parameter of defrosting control) [refers to Pr2] [defrost cycle „disables“ Pr1] Par. Description Range fac- cooling cooling cooling cooling tory hot- recircu- neutral neutral zone set- lated air zone heating ting defrost defrost- heating recirculated hot-gas air defrost- defrost- d.dt Defrosting mode: EL –...
- Page 16 d.Et Display unlock difference after finished defrost cycle 0 ÷ 30 30.0 30.0 30.0 30.0 30.0 ° C/° F During defrost cycle it is possible that the tempera- ture measured by the cell sensor (Pr1) rises exces- sively (this depends on the position of the sensor Pr1 to the evaporator).
- Page 17 Group Fn (parameter concerning control of cooling fans) [refers to Pr2] Par. Description Ran- fac- COOL COOL tory set- cooling cooling cooling cooling ting neutral neutral zone zone heating heating hot-gas recircu- recirculated defrost- lated air hot-gas air defrosting defrost- defrost- ting F.FC Fan state concerning to...
- Page 18 Group Pr (parameter of the compressor protection and switch-on delay) Par. Description Range factory setting P.SC Compressor protection mode: 1 - 2 - 3 1 = switch-on delay 2 = delay after switching-off 3 = delay between switching-on P.tC Time compressor protection oF ÷...
- Page 19 Group ts (parameter of keyboard configuration) Par. Description Range factory setting t.Fb Operating mode button DOWN oF / 1 / 2 / 3 / 4 oF = no function 1 = control auxiliary outlet 2 = manual defrost cycle 3 = activate setpoint 4 = switching-on/-off (stand-by) indication of Operating hours...
