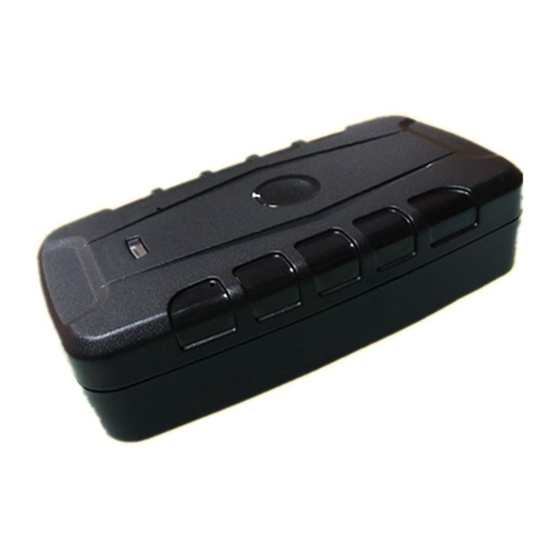

SS-LK209B/C
GPS Tracker Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-LK209C and is the answer not in the manual?

Questions and answers

Summary of Contents for SecureShop SS-LK209C

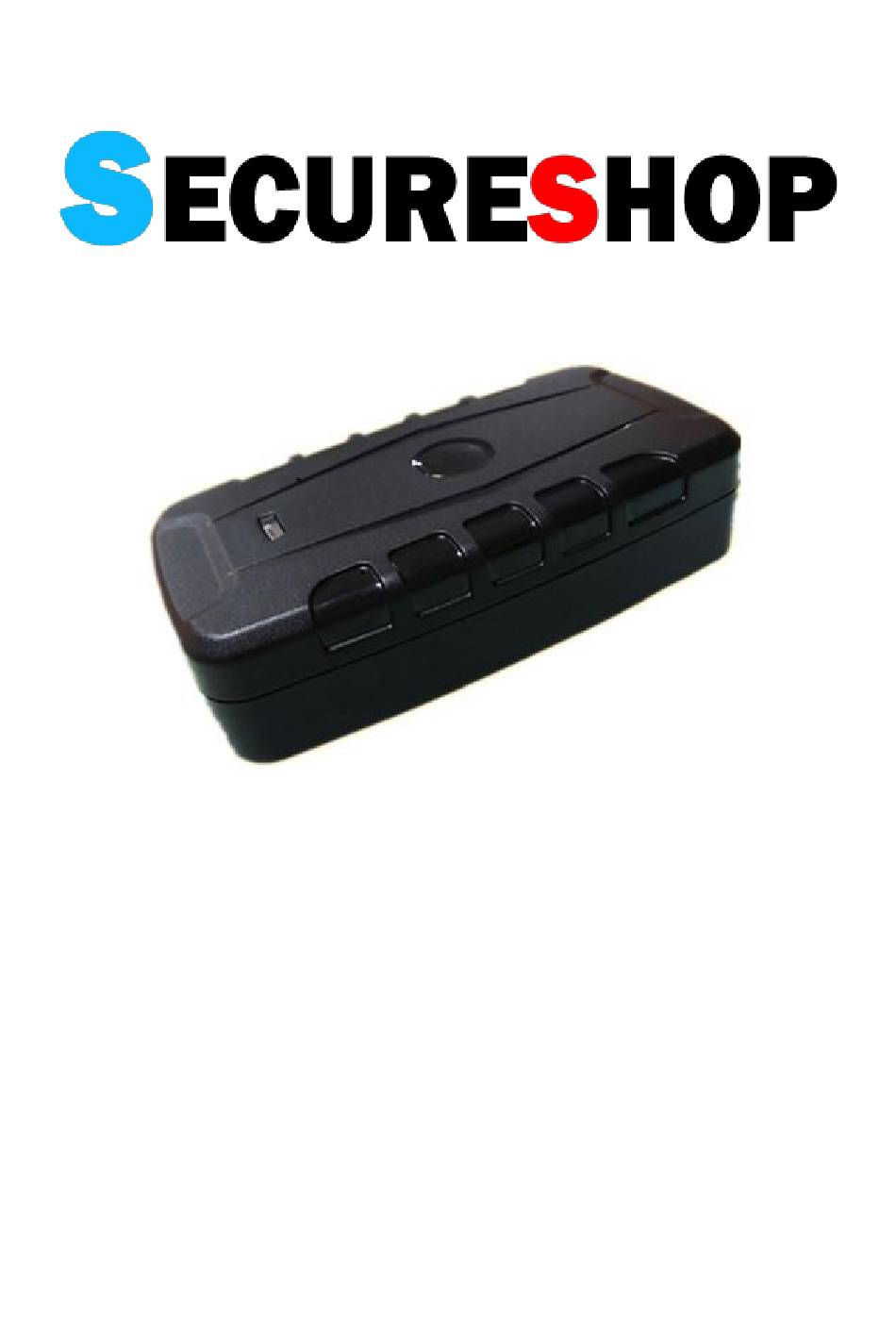

  • Page 1 SS-LK209B/C GPS Tracker Manual Version 1.0...
  • Page 2 Preface Thank you for purchasing this GPS tracker at Securitashop. We have decided to make our own manual as the one we have received from the manufacturer is hard to read. Despite our best efforts to change this it remains below our standards which is why you receive our own manual –...
  • Page 3 ARDWARE ESCRIPTION...

  • Page 4: Specifications

    Car charger 12—24V inp output Wall charger 110－220V input output Battery Chargeable changeable 3.7V 10000mAh (SS-LK209B) or 20000mAh Li- ion battery (SS-LK209C) Standby 90/150 days Storage temperature -40°C to +85°C Operation -20°C to +55°C temperature Humidity 5% - 95% non-condensing...

  • Page 5: Sim Card Installation

    SIM card installation  Open the rubber plug – Fig. 1  Insert the GSM SIM card as shown below fig. 2.  Close the rubber slip Fig. 1 Fig. 2 Battery and Charger Charge the battery to maximum capacity for 8-12 hours the first time.
  • Page 6 Startup  Put the SIM card and battery in place.  Turn on the unit outdoors by pushing the button to “On”.  For first use, please initialize the unit and restore it to default setting  In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals.
  • Page 7 Google link: click link, there is map when positioning ok, no map means no positioning. V:A GPS signal ok.V:V no GPS signal 2013-08-30 20:54:15: the last time receive GPS signal. Spd:000km/h: the speed of the tracker. Bat:6 battery balance. Range is from 1 to 9 ID: 4102000759: ID code of device (used for connect tracking website or APP) S19G04；plmn：46001 GSM operator data...
  • Page 8 Make sure the new password is in 6 digits Arabic numbers or the tracker cannot recognize the password. Authorization Send SMS：admin+password+space+cell phone number” to set up an authorized number. The first authorized number should set the other authorized numbers. If the number is successfully authorized, the unit will reply “admin ok!”...

  • Page 9: Monitor (Voice Surveillance)

    Single message inquires the latitude and longitude information, any telephone number can send instruction ”where” to the equipment, then the equipment will reply the latitude and longitude information to this telephone. When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as below: *Tracking location, When GPS signals is weak, the position of latitude and longitude included in the SMS is the position that the...
  • Page 10 Geo-fence Set up a geo-fence for the unit to restrict its movements within an area. The unit will send the message to the authorized numbers when it breaches that area. Geo-fence setup When the unit stays immobile in a place for 3-10 minutes, the user can send SMS: “stockade+password+space+latitude,longitude;...
  • Page 11 Movement alert setup When the unit stays immobile in a place for 3-10 minutes the user can send SMS: “move+password” to the unit, then the unit will reply “move ok!”. In case of such a movement（the unit default distance is 500M), it will send SMS “move ALARM+latitude and longitude” to the authorized number Cancel: Send SMS:”...
  • Page 12 Low battery alert When GPS device battery is going to be about 3.7V, it will send SMS: “bat:l” at 30 minutes interval. Terminal (local) Time Setting Send SMS “time+space+zone+password+space+local time”. For example, send SMS: time zone123456 1 (time zone of Denmark). If the local time zone is negative as “-3”, then it should set as SMS: time zone123456 -3...

  • Page 13: Sleeping Power-Save Mode

    Sleeping power-save mode On normal status when the unit stops over 10minutes it will change to sleeping mode- In this mode the power consumption is 4mah/h only. When it get any command or been moved it will start GPS locating automatically. Forced sleeping mode setting: Send SMS sleep+password, the unit will reply “sleep ok”, it enter to forced sleeping power-save mode.

  • Page 14: Restore Factory Settings

    Restore factory settings Can only be done by authorized number(s). Send SMS command format , the unit will reply “The tracker will immediately restore the factory settings. All previous settings will be cancelled.” GPRS setting User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
  • Page 15  Do not vibrate or shake it violently.  Clear the unit with a piece of dry cloth.  Do not clean in chemicals, detergent.  Do not paint the unit as it may cause loss of GSP signal...
  • Page 16 Function SMS command SMS reply Initialize begin123456 begin ok Change password password123456 password ok password Authorization admin123456 phone admin ok number number Autotrack SMS t030s005n123456 no reply (every 30 seconds for 5 times) Monitor mode monitor123456 monitor ok! Track mode tracker123456 tracker ok! Geo-fence...
  • Page 17 Securitashop Internet platform setup and APP’s Securitashop offers in cooperation with Wialon access to paid internet tracking platform where you can track, set geo-fence, control fuel, set drivers, monitor tracks over a period and many other things. We have chosen Wialon as our partner as they are #1 in GPS software platform, is reliable and have support and backup services.
  • Page 18 You should clik on the and chose and you will see this screen Give the unit a name of your choice Device type is the name of the unit without the SS. For the SS-LK209 it is LK206 III. Unique ID is the IMEI number of the unit (written on the box or on the unit itself) Phone number is the number of the SIM card that you have inserted into the unit –...
  • Page 19 You are all setup and ready to see your unit go online in a matter of minutes. Full setup can be seen at: http://docs.wialon.com/en/hosting/user/quick/quick or if you are in doubt call our support at +45 6053 4077 or e-mail support@securitashop.com APP for Ipad, Iphone and Android Find the APP by searching for Wialon and chose the APP called Wialon.
  • Page 20 Once downloaded enter the connectivity settings as below (below is a SS-GT100). Unique ID is the IMEI number of the unit. III. You are all set – go back and click MAP. You should see your GPS tracker on the map.
