Technical Information
iSafePro 360 – VEXT4
4 Door Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSafePro 360 VEXT-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Immotec iSafePro 360 VEXT-4

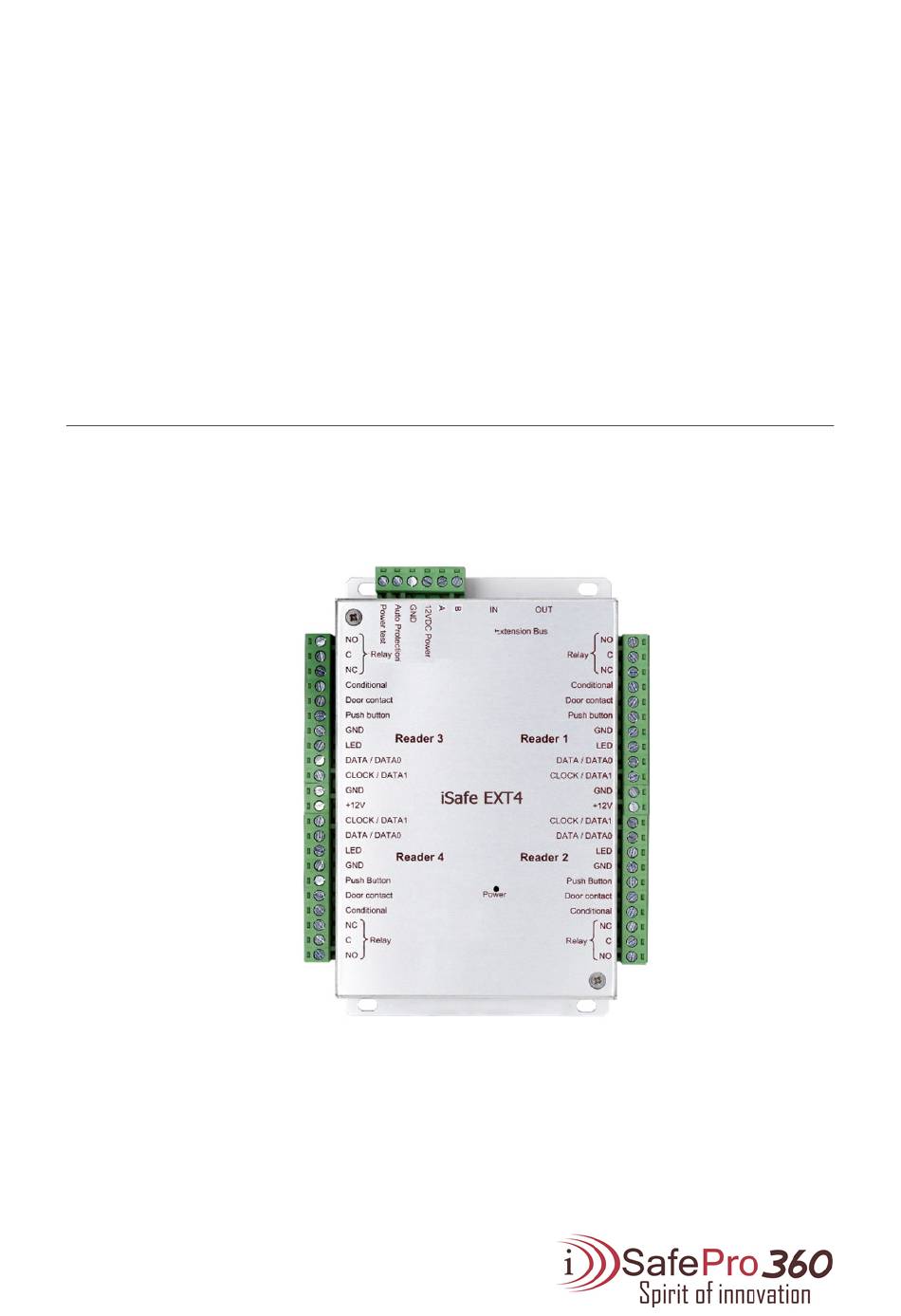

  • Page 1 Technical Information iSafePro 360 – VEXT4 4 Door Controller...

  • Page 2: Table Of Contents

    Technical information iSafePro 360 V-EXT4 – V1.0 p.2/11 CONTENTS CONTENTS ..........................2 ACKNOWLEDGEMENT ......................3 INFORMATION AND RECOMMENDATIONS ............... 4 TECHNICAL CHARACTERISTICS ..................5 1) V-EXT4 ......... 5 2) V-EXT4-220 ........5 3) PROTECTION ......5 CONNECTING A DEVICE USING THE WIEGAND OR CLOCK & DATA PROTOCOL ..6 CONNECTION TO THE VERSO 360 UNIT ................

  • Page 3: Acknowledgement

    Technical information iSafePro 360 V-EXT4 – V1.0 p.3/11 ACKNOWLEDGEMENT Dear client, You have just purchased an “iSafePro 360 VEXT-4” extension module. We thank you for your interest in our products. If you want more information about our range, please don’t hesitate to contact your dealer.

  • Page 4: Information And Recommendations

    Technical information iSafePro 360 V-EXT4 – V1.0 p.4/11 INFORMATION AND RECOMMENDATIONS o Pursuant to European directive UTE C00-200, incorporating directives 89/336 EEC and 92/31 EEC, VEXT-4 complies with the following standards: • NF EN 50081-1 governing electromagnetic radiation, and • NF EN 50082-1 governing electromagnetic susceptibility. o Cabling recommendations: the cables used to connect readers, the network and other periph- erals must be installed in accordance with the instructions for Level 2 (protected environment) of standard NF EN 61000-4-4.

  • Page 5: Technical Characteristics

    Technical information iSafePro 360 V-EXT4 – V1.0 p.5/11 TECHNICAL CHARACTERISTICS 1) iSafePro 360 V-EXT4 Maximum power consumption ..400 mA Supply voltage ........ 9 – 14VDC Weight with housing ......200 g Housing dimensions ......157 x 120 x 30 mm Operating temperature ....

  • Page 6: Connecting A Device Using The Wiegand Or Clock & Data Protocol

    Technical information iSafePro 360 V-EXT4 – V1.0 p.6/11 CONNECTING A DEVICE USING THE WIEGAND OR CLOCK & DATA PROTOCOL WIEGAND: o Proximity readers (HID, INDALA, etc.) o Key pads (HID, etc.) o Biometric readers o Radio receivers CLOCK & DATA: DATA0 / DATA o Magnetic strip readers DATA1 / CLOCK...

  • Page 7: Connection To The Verso 360 Unit

    Technical information iSafePro 360 V-EXT4 – V1.0 p.7/11 CONNECTION TO THE VERSO UNIT VERSO V-EXT4 Up to 10 modules per RS485 VERSO You can also use the A and B terminals on the V-EXT4 modules to connect an RS485 bus. Information: 2 conductors (2 pairs recommended) Max.

  • Page 8: Connecting A Power Loss Bolt And An Electromagnetic Door Lock Operating On Power Loss

    Technical information iSafePro 360 V-EXT4 – V1.0 p.8/11 CONNECTING A POWER LOSS BOLT AND AN ELECTROMAGNETIC DOOR LOCK OPERATING ON POWER LOSS Anti-return diode Power supply +12V 0V Warning: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above.

  • Page 9: Connecting A Standard Power-On Door Lock

    Technical information iSafePro 360 V-EXT4 – V1.0 p.9/11 CONNECTING A STANDARD POWER-ON DOOR LOCK Anti-return diode Power supply +12V 0V Warning: In order to prevent random malfunctions that may interfere with proper system operation due to back-currents, it is imperative to use and connect the anti-back-current diodes supplied with the unit in compliance with the cabling diagram above.

  • Page 10: Setting Up The Module In Visor 360

    Technical information iSafePro 360 V-EXT4 – V1.0 p.10/11 SETTING UP THE MODULE IN VISOR 360 To configure your VISOR 360 software, you will need the module identifier. This is printed on a sticker on the top of the housing (e.g. ID: 00001). Make a note of this number. Click on the “Technique”...

  • Page 11: Functions Of The Terminals

    Technical information iSafePro 360 V-EXT4 – V1.0 p.11/11 FUNCTIONS OF THE TERMINALS RS485 Extension Bus...
