Summary of Contents for RECOUP Tray+ DSS-S2

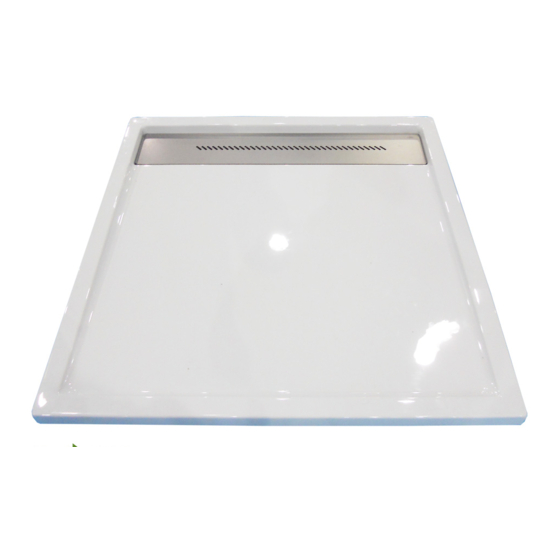

- Page 1 Installation instructions RECOUP Tray+ DSS-S2 (1200mm) Shower Waste Water Heat Recover unit These instructions are to be left with the user for the homes user pack...
-
Page 2: Table Of Contents
6 -7. a. Basic Principle b. Installation configurations c. Locating the WWHRU d. Design/Installation Checklist 4. Installation 8 – 9. a. Contents of Packaging b. Installation instructions 5. Maintenance 6. Warranty 7. Recoup Energy Solutions company details Page | 2 V1.02... -
Page 3: Introduction
40°C, and the water going down the drain will only be a few degrees cooler than this. This energy has been paid for once, and we believe at Recoup Energy Solutions, that the home owner should get as much benefit from this energy before paying to reheat more water and at the same time reduce the energy consumption and CO emissions of the home. -
Page 4: Product Technical Data
Product technical data 2. a. General Information – RECOUP Tray+ DSS-S2 (1200mm) Description Value Unit Minimum depth required for installation Overall Width/Length required for installation 900 x 1200 Material – Heat exchanger Copper Shower flow rate range 5 – 12.5 Max. - Page 5 2. d. Dimensions & connections – RECOUP Tray+ DSS-S2 (1200mm) Waste Water Connection Cold Water In Pre-heated water Out Fig. 1. Dimensions & Connections Page | 5 V1.02...
-
Page 6: Pre-Installation Requirements
3. b. Installation configuration The inlet for the Recoup Tray+ DSS-S2 (1200mm) is connected to the mains water supply, and the outlet (pre-warmed water) can be connected in one of three ways: - Fig. 2. System A,B & C Configuration SYSTEM A –... - Page 7 (E.g. Cleaning) to be carried out with relative ease. The RECOUP Tray+ DSS-S2 (1200mm) must be located within the heating envelope of the building. The Tray+ DSS-S2 (1200mm) must be installed with consideration to the most recent ‘Approved document –...
-
Page 8: Design/Installation Checklist
INSTALLATION 4. a. Contents of Packages Part No. Qty. Name RECOUP Tray+ DSS-S2 (1200mm) WWHRS unit – 900 x 1200 mm 50mm reducer to 40mm (Solvent) Installation instructions NCM (SAP) Identifier label for nearby boiler or service cupboard. Design checklist Installation checklist Table 1 –... - Page 9 +/- 2mm. To mount the unit: - 1. Use the adjustable feet on the Recoup Tray+ DSS-S2 (1200mm) to ensure the unit is in a level horizontal position in all directions, providing an even distribution of weight across all legs.
-
Page 10: Maintenance
Once cleaned, replace the lid and rinse through with warm water from the shower. Warranty The Recoup Tray+ DSS-S2 (1200mm) comes with a 2 year warranty, which starts from the date of invoice from Recoup Energy Solutions Ltd. This warranty is conditional on the product being installed in accordance with these instructions (Installation and ALL requirements for SAP, if product is to be recognised for Energy efficiency calculations), correct plumbing practices and Building Regulations. -
Page 11: Recoup Energy Solutions
Company contact details: Please post completed documents to: - Recoup Energy Solutions Ltd Telephone: 01379 844010 PO Box 365 Email: info@recoupenergysolutions.co.uk Website: www.recoupenergysolutions.co.uk IP22 9BH Page | 11 V1.02...
