MegaLite COLORITE Q120 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

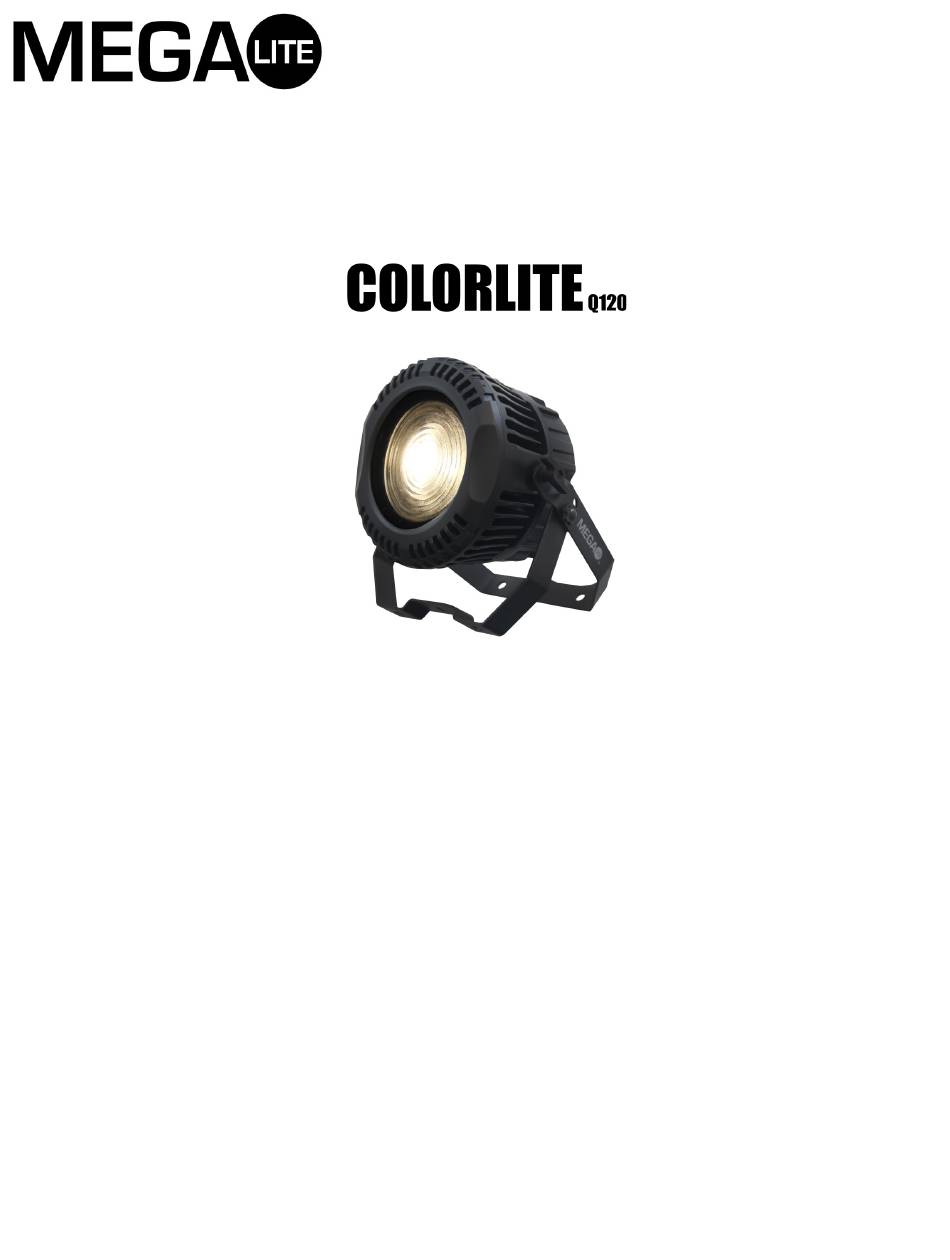

USER MANUAL

Table of Contents

3
4
5
6
6
7
9
11
12
13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLORITE Q120 and is the answer not in the manual?

Questions and answers

Related Manuals for MegaLite COLORITE Q120

Summary of Contents for MegaLite COLORITE Q120

  • Page 1: Table Of Contents

    USER MANUAL Table of Contents Safety Information Specifications Photometrics Main Power Connection DMX-512 Connection DMX Profile Main Control Menu Size and Weight Rigging the Fixture Cleaning & Maintenance...

  • Page 3: Safety Information

    Check that the unit has not been damaged during transport Check that the unit has not been damaged during transport Protection Against Fire Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 1. Maintain a minimum of 1 foot distance from any type of flame. 3.

  • Page 4: Specifications

    Technical Information Part Numbers Fixture 4300-Colorlite Q120 Mechanical Specifications DMX Connectors: Cable Mounted IP67 5-pin XLR connectors in/out Power Connections: Panel mount Neutrik True Power in/out connection (Nema 5-15 to Neutrik True power male cable included) Thermal: Maximum ambient temperature 40° C Maximum surface temperature 60°...

  • Page 5: Photometrics

    Photometrics Output @ Full Lumens at Full Output Lens Efficiency 2587 40º 21lm/W Foot Candle and Lux with 40º Lens Foot Candle / Lux Distance Beam Diameter 185fc / 1156lux 3.7' 46fc / 289lux 7.3' 21fc /128lux 11.0' 12fc / 72lux 14.7' CRI 90 on Warm White Emitter only...

  • Page 6: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA)

  • Page 7: Dmx Profile

    DMX Profile Colorlite Q120 3CH Mode DMX Channel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Colorlite Q120 4CH Mode DMX Channel Function Description Value LED Color Red LED intensity 0-255 LED Color...
  • Page 8 Colorlite Q120 8CH Mode DMX Channel Function Description Value Dimmer Dimmer Off to Full 0-255 LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 LED Color Warm White LED Intensity 0-255 No Function Strobe Strobe (slow to fast)

  • Page 9: Main Control Menu

    Main Control Menu The control board on the fixture is your interface to access and control CONTROL BOARD all the functions on the unit. Its digital display gives you a code view of Mega Lite the options and functions. The following will explain each function and Color Lite Q120 its options.
  • Page 10 Auto Auto Pre Programs Press Set Up to select yes or no use the up/down keys, Press Set Up to confirm the setting. (note for DMX Mode operation auto must be on the off position) Programs Program Press Set Up to select the program that will be used in Auto program use the up/down keys to select from 1-14, Press Set Up to confirm the setting.

  • Page 11: Size And Weight

    Size and Weight 12.25” 13.62” 8.62” 5” 8.25” Power Conn 31mm 9.87” Size 12.25” x 8.25” x 13.62” Packaged Size 13.5” x 10.75” x 17” Weight 14lb Gross 17lb...

  • Page 12: Rigging The Fixture

    Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4.

  • Page 13: Cleaning & Maintenance

    Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LED’s and LAMPS are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
