- Page 1 4GT LTE Cat-M1 INSTALLATION MANUAL 2019...
- Page 2 4GT LTE Cat-M1 Installation Manual Changes Version Date Document Creation 1.0 13.03.2019 2019 Page | 1...
-
Page 3: Table Of Contents
4GT LTE Cat-M1 Installation Manual TABLE OF CONTENTS 1 Description ............................4 1.1 Features ............................4 1.2 Specifications ..........................5 1.3 Communicator elements ......................6 1.4 Purpose of terminals ........................6 1.5 LED indication of operation ......................7 1.6 Startup Process ..........................8 2 Installation ............................9 3 Wiring schematics ..........................10 3.1 Wiring the 4GT to the security control panel ................10 3.2 Wiring the 4GT to a panel key switch zone ................10 3.3 Schematics for wiring inputs ...................... 11 3.4 Schematics for wiring a relay ..................... 12 3.5 Connecting iO series expansion modules .................. 12 3.6 Starting the communicator ......................13 4 Programming the control panel ......................13 Customer Support ..........................14 2019 Page | 2... - Page 4 4GT LTE Cat-M1 Installation Manual Safety requirements The communicator should be installed and maintained by qualified personnel. Prior to installation, please read this manual carefully in order to avoid mistakes that can lead to malfunction or even damage to the equipment. Disconnect the power supply before making any electrical connections. Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. Please act according to your local rules and do not dispose of your unusable alarm system or its components with other household waste. 2019 Page | 3...
-
Page 5: Description
4GT LTE Cat-M1 Installation Manual 1 DESCRIPTION Radionet 4GT Multi Band Transmitter 4GT LTE Cat-M1 can be connected to any alarm panel that has a landline dialer and supports dialing in Contact ID protocol with DTMF tones. The communicator can transmit full event information to the security company’s monitoring station receiver. The communicator works with the myRadionet and myMonitoring apps. Users can control their alarm system remotely and receive notifications about events. myMonitoring app works with all security alarm panels to which the communicator is connected to, regardless of manufacturer. Communicator can transmit event notifications to the Central Monitoring Station and work with myMonitoring simultaneously. 4GT LTE Cat-M1 are certified to the highest EN50131 Grade 4 security rating. 1.1 Features Connects to panel’s landline dialer: Communicator can be connected to control panel’s landline dialer with 2 or 4 wires. • When connected with 4 wires, the landline between the panel and communicator will be monitored. • Sends events to monitoring station receiver: Sends events to any monitoring software. • Can send event messages in Ademco 685 CID or Surgard MLR2 formats. • Connection supervision by polling as low as every 30 seconds (or by requested period). -
Page 6: Specifications
Quick setup: Remote configuration and firmware updates • 1.2 Specifications Parameter Description Connects to Panel Landline dialler (TIP RING contacts) 2 selectable type inputs, NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL Inputs Expandable with iO series expanders 1, OC type, up to 0,15 A, 30 V max Output Expandable with iO series expanders 2G modem frequencies 850 / 900 / 1800 / 1900 MHz 4G modem frequencies Depends on region See https://www.vodafone.co.nz/iot/lpwan/ Power supply voltage 10-18 V DC 60-100 mA (on standby) Current consumption Up to 250 mA (while sending data) Transmission protocols Surgard MLR2 or Ademco 685 Message encryption AES 128 Changing settings myRadionet App or contact the Radionet Office Temperature from -10 °C to 50 °C, relative humidity - up to 80% at +20 Operating environment °C Communicator dimensions 92 x 65 x 26 mm Weight 80 g 2019 Page | 5... -
Page 7: Communicator Elements

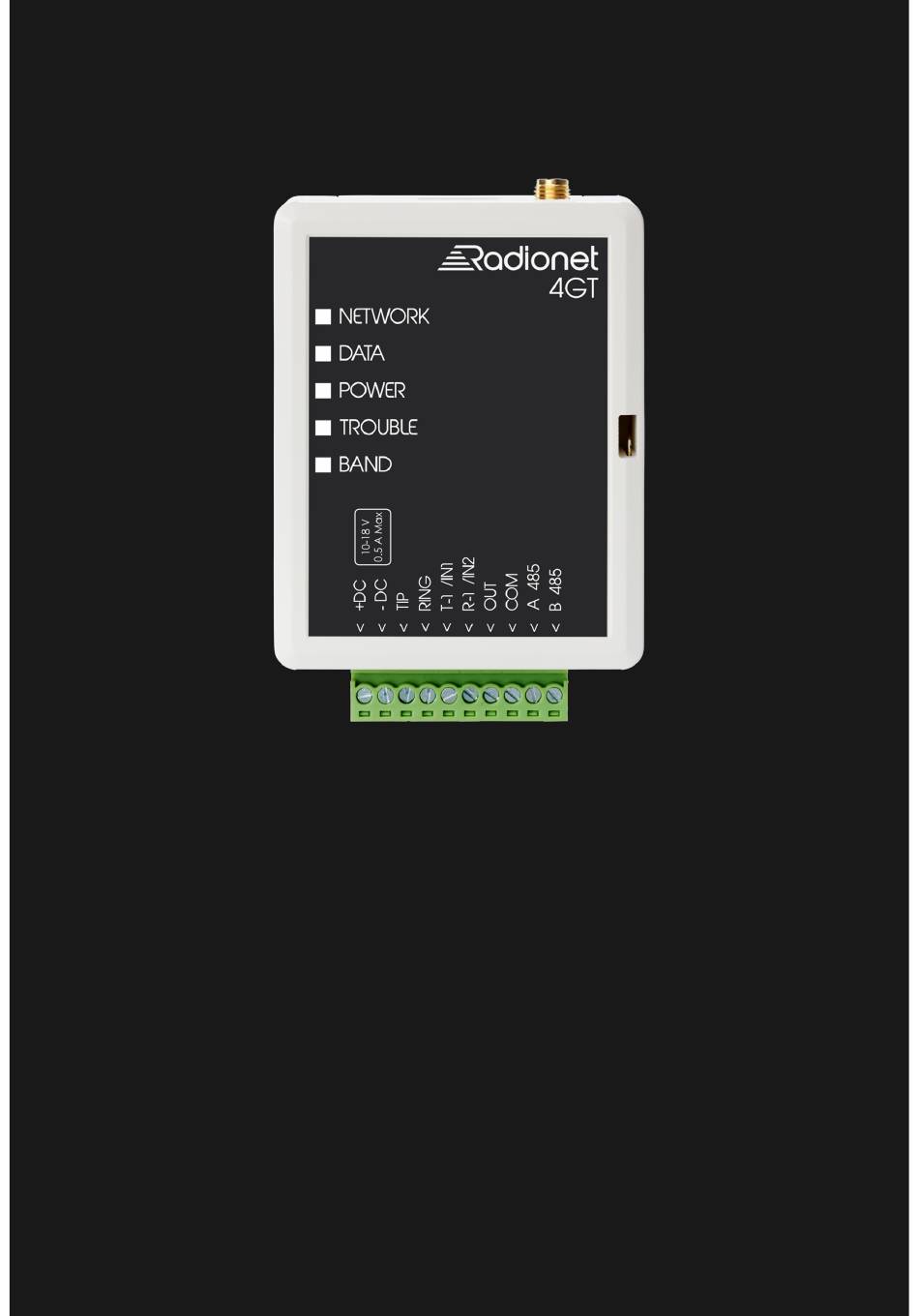

4GT LTE Cat-M1 Installation Manual 1.3 Communicator elements 1. Cellular antenna SMA connector 2. Light indicators 3. Frontal case opening slot 4. Terminal for external connections 5. SIM card slot 1.4 Purpose of terminals Terminal Description +DC +10 V/+18 V power supply -DC +10 V/+18 V power supply TIP Terminal to connect with security control panel TIP terminal RING Terminal to connect with security control panel RING terminal Terminal for monitoring the telephone line or an input terminal, T-1/IN1 selectable type: NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL Terminal for monitoring the telephone line or an input terminal, R-1/IN2 selectable type: NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL COM Common terminal (negative) OUT Output terminal (OC type), current up to 0,15 A A 485... -
Page 8: Led Indication Of Operation
4GT LTE Cat-M1 Installation Manual 1.5 LED indication of operation Indicator Light Status Description Network No connection to cellular network. Yellow blinking Connecting to cellular network. Communicator is connected to cellular network. Green solid with yellow Sufficient cellular signal strength for 2G is level 5 (five blinking yellow flashes) and for 4G network - level 3 (three yellow flashes). Data No unseen events. Green solid Unsent events are stored in buffer. Green blinking (Configuration mode) Data is transferred to/from communicator. Power Power supply is off or disconnected. Green solid Power supply is on with sufficient voltage. Yellow solid Power supply voltage is not sufficient (≤11.5V). Green solid and yellow (Configuration mode) Communicator is ready for blinking configuration. Yellow solid (Configuration mode) No connection with computer. Trouble OFF No operation problems. -
Page 9: Startup Process
4GT LTE Cat-M1 Installation Manual 1.6 Startup Process Step 1 Apply power to the uni. The 4GT will go through an internal power up procedure Step 2 The 4GT will search for available networks. This is indicated with the network LED flashing amber Step 3 Once the 4GT has established a network connection the Network, Data and Power LED’s will all stay on for a brief moment Step 4 With the 4GT in indle mode the Network and Power LED’s will all stay on 2019 Page | 8... -
Page 10: Installation
4GT LTE Cat-M1 Installation Manual 2 INSTALLATION Physical installation process For your convenience there are two methods of mounting the 4GT Screw on method Remove the top cover and pull out the contact terminal Remove the PCB board Fix the bottom part to the suitable place with screws Place the PCB board back into the case, insert contact terminal Screw cellular antenna on Close the top cover Stick on method Using the supplied double-sided tape or velcro, fasten the 4GT to any suitable surface that accomodates adhesive tape 2019 Page | 9... -
Page 11: Wiring Schematics
4GT LTE Cat-M1 Installation Manual 3 WIRING SCHEMATICS 3.1 Wiring the 4GT to the security control panel Following one of the schematics provided below, wire the communicator to the control panel. 3.2 Wiring the 4GT to a panel key switch zone Follow these schematics if the control panel will be armed/disarmed with the 4GT PGM output turning on/off the panel’s keyswitch zone. Note: The 4GT communicator has one programmable output OUT, which can control one alarm system partition. Additional partitions can be controlled by adding expanders. 2019 Page | 10... -
Page 12: Schematics For Wiring Inputs
4GT LTE Cat-M1 Installation Manual 3.3 Schematics for wiring inputs The 4GT communicator has two input terminals (IN1, IN2) for connecting NO, NC, NO/EOL, NC/EOL, NO/DEOL, NC/DEOL type circuits. Default input setting – NO. The input type can be changed in the myMonitoring App. Connect the input according to the selected input type (NO, NC, NO/EOL, NC/EOL, NO/DEOL, NC/DEOL), as shown in the wiring diagrams below. Note: If more inputs or outputs need to be connected to the communicator, or if you want to connect a temperature sensor, connect the iO series wired or wireless output expander. 2019 Page | 11... -
Page 13: Schematics For Wiring A Relay
4GT LTE Cat-M1 Installation Manual 3.4 Schematics for wiring a relay With relay contacts you can control (turn on/off) various electronic appliances. 3.5 Connecting iO series expansion modules If more inputs/outputs need to be connected to the communicator, or if you want to connect a temperature sensor, connect the iO series wired or wireless out expander. 2019 Page | 12... -
Page 14: Starting The Communicator
4GT LTE Cat-M1 Installation Manual 3.6 Starting the communicator To start the communicator, turn on the security control panel’s power supply. The LED indication on the 4GT must show: - “POWER” Led illuminates green when the power is on; - “NETWORK” LED illuminates green and blinks yellow when the communicator is registered to the network Note: Sufficient strength of 2G cellular signal is level five (five “NETWORK” indicator flashes in yellow color). Sufficient strength of 4G signal is level three (three “NETWORK” indicator flashes in yellow color). If you count less yellow “NETWORK” LED flashes, the network signal strength is insufficient. We recommend selecting a different place to install the communicator, or to use a more sensitive cellular antenna. -
Page 15: Customer Support
4GT LTE Cat-M1 Installation Manual CUSTOMER SUPPORT If you are unable to find what you’re looking for in this document, then please contact us through one of our support channels below. Customer Care & Support admin@radionetmonitoring.co.nz aaron@radionetmonitoring.co.nz For urgent support issues, please phone 0800 WIREFREE (0800 9473 3733) 2019 Page | 14...
