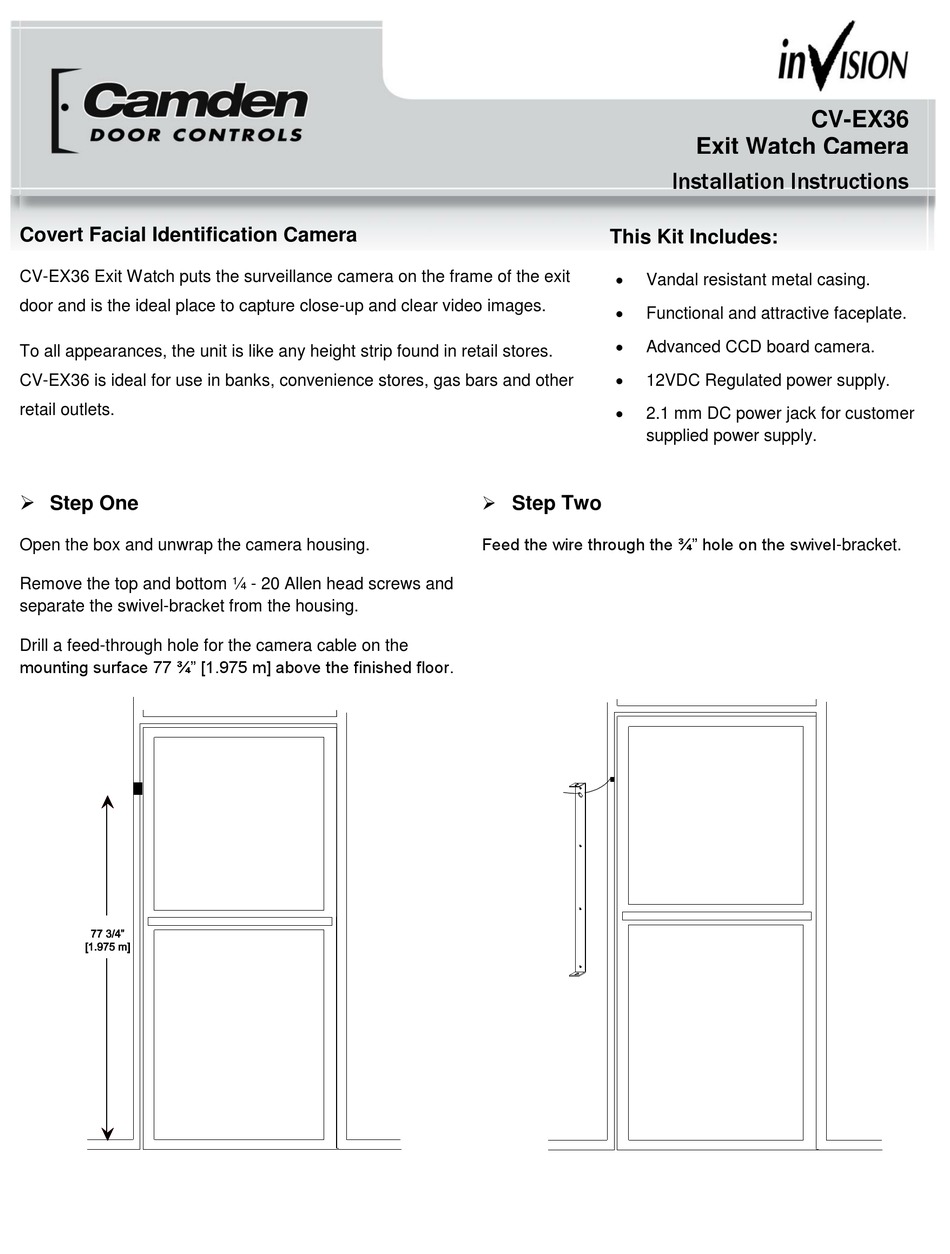

Invision CV-EX36 Installation Instructions

Covert Facial Identification Camera
CV-EX36 Exit Watch puts the surveillance camera on the frame of the exit
door and is the ideal place to capture close-up and clear video images.
To all appearances, the unit is like any height strip found in retail stores.
CV-EX36 is ideal for use in banks, convenience stores, gas bars and other
retail outlets.
 Step One
Open the box and unwrap the camera housing.
Remove the top and bottom ¼ - 20 Allen head screws and
separate the swivel-bracket from the housing.
Drill a feed-through hole for the camera cable on the
mounting surface 77 ¾" [1.975 m] above the finished floor.
This Kit Includes:

Vandal resistant metal casing.

Functional and attractive faceplate.

Advanced CCD board camera.

12VDC Regulated power supply.

2.1 mm DC power jack for customer
supplied power supply.

Step Two
Feed the wire through the ¾" hole on the swivel-bracket.
CV-EX36
Exit Watch Camera

Installation Instructions
