Installation & Maintenance Instructions
TEC-11
Timer controlled condensate drain
02/09
GENERAL OPERATION

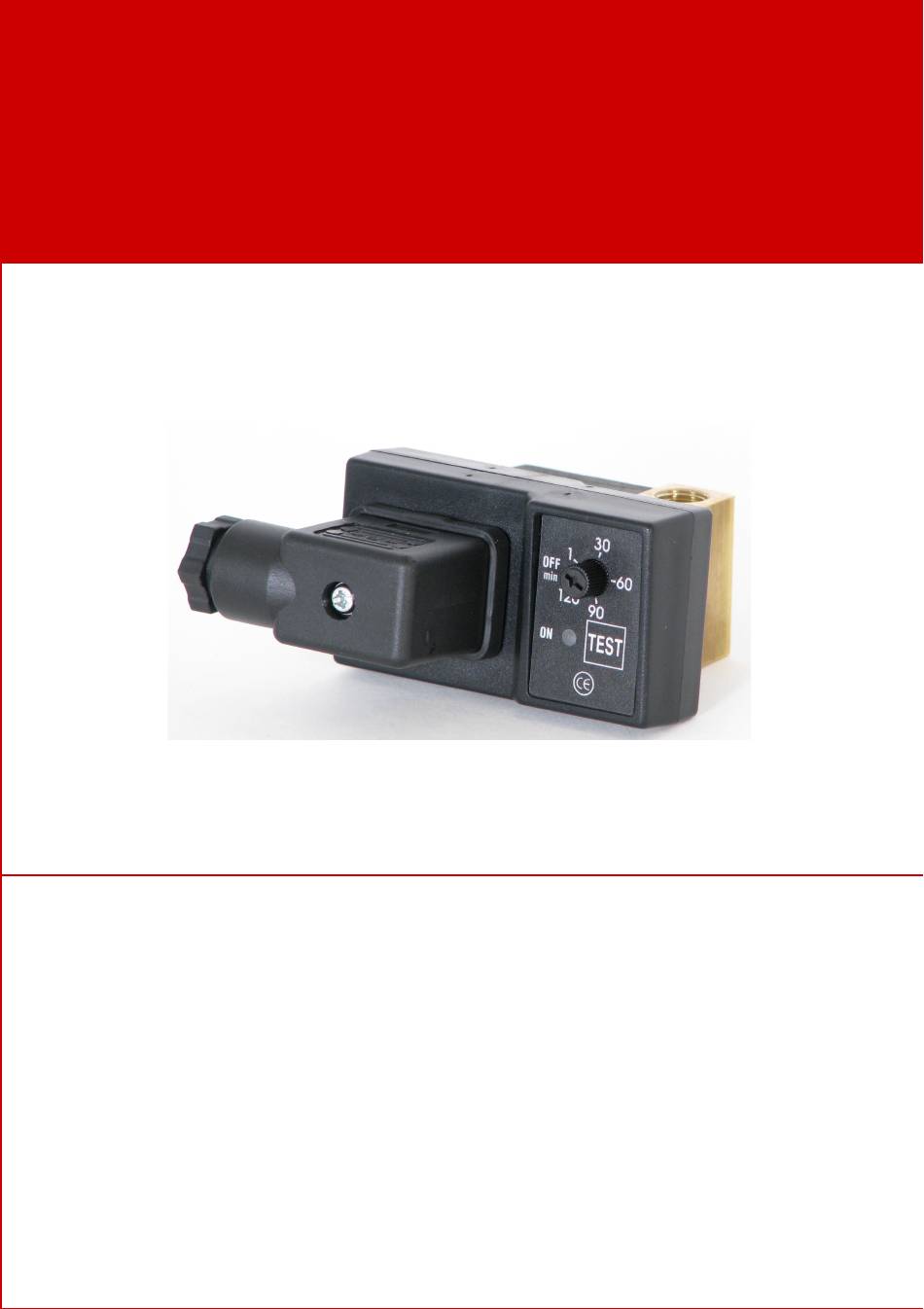

The TEC-11 removes condensate, automatically, from compressed air filters and i.e. small dental
compressors.
The TEC-11 is designed for ALL compressed air filters, regardless of their capacity or size.
The TEC-11 incorporates a direct acting valve assembly and FPM seals to ensure a long life
operation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEC-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jorc TEC-11

Summary of Contents for Jorc TEC-11

  • Page 1 The TEC-11 removes condensate, automatically, from compressed air filters and i.e. small dental compressors. The TEC-11 is designed for ALL compressed air filters, regardless of their capacity or size. The TEC-11 incorporates a direct acting valve assembly and FPM seals to ensure a long life operation.

  • Page 2: Safety & Warning Instructions

    SAFETY INSTRUCTIONS SAFETY AND PROPER USAGE To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein. Non-compliance with instructions or improper handling of the product will void your warranty! This product is designed to drain condensate from compressed air systems.
  • Page 3 EXPLODED VIEW - IDENTIFY ALL COMPONENTS DIAGRAM Shaft Spring Plunger Body Connector Screw Connector gasket TEC-11 timer Flat gasket Coil Top nut...

  • Page 4: Important Notice

    (see page 3 for an an oil/ water separator. We recommend using a exploded view). JORC condensate cleaner. - Make sure the arrow on the valve body complies with the flow direction of the condensate.
  • Page 5 INSTALLATION INSTRUCTIONS 5. Slide the coil on to the valve shaft and replace 6. Place the flat gasket over the coil the top nut. Tighten the top nut (max. torque connection pins. 1Nm) using a 14 mm wrench. The coil can be rotated 360° around the valve, Make sure there is no debris between the you can align the coil as desired.
  • Page 6 20 min. receives from your compressed air system fully automatic and continuous. You can now alter the off time if required. 16. Your TEC-11 is now ready for operation! 15. The ON time is pre set to 2 sec.

  • Page 7: Cleaning Instructions

    CLEANING INSTRUCTIONS These instructions are for cleaning the TEC-11. If your TEC-11 requires maintenance, i.e. replacement of wearing components, please refer to our dedicated maintenance instructions (supplied with the service kit). Depressurise the system before installation or maintenance is carried out! 1.
  • Page 8 (max. torque 1Nm) using a 14 mm wrench. 11. Open the ball valve in front of the filter to restore normal system pressure. 12. Press the test button to check the valve 13.Your TEC-11 is now ready for operation! function.

  • Page 9: Service Chart

    SERVICE CHART Date Description Name...

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS Interval Time (off time) 1 – 120 min. Discharge Time (on time) 2 sec. (Fixed) Supply voltage 12 – 380VAC/DC 50-60Hz (± 10%) Current consumption Approx. 7mA Case Material ABS plastic FR grade Connection DIN 43650B ISO 6952 Indicators Yellow LED’s, indicating on/off Valve type...
