Philips Momentum 326M6 User Manual

Philips Momentum 326M6 User Manual

Hide thumbs Also See for Momentum 326M6:

Advertisement

www.philips.com/welcome
EN User manual
Customer care and warranty 22
Troubleshooting & FAQs
Momentum
326M6
1
26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Momentum 326M6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips Momentum 326M6

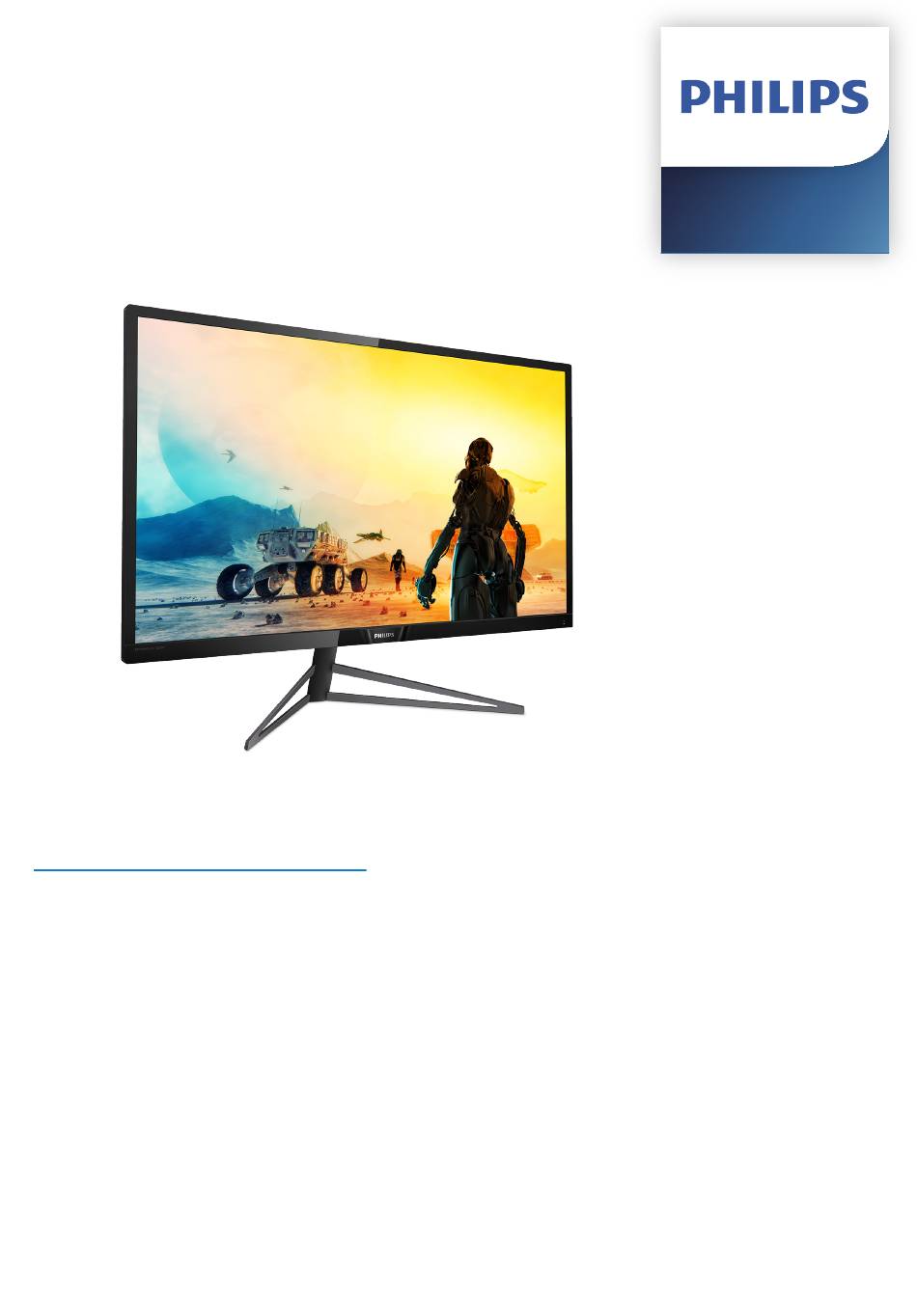

  • Page 1 Momentum 326M6 www.philips.com/welcome EN User manual Customer care and warranty 22 Troubleshooting & FAQs...
  • Page 2: Table Of Contents

    7.1 Resolution & Preset Modes ..20 8. Power Management ....21 9. Customer care and warranty .. 22 9.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..... 22 9.2 Customer Care & Warranty ..25 10. Troubleshooting & FAQs ..26 10.1 Troubleshooting ......26...
  • Page 3: Important

    DC power cord for normal operation. notes regarding the operation of your monitor. • Please use approved power cord provided by Philips at all times. If The Philips guarantee applies provided your power cord is missing, please the product is handled properly for contact your local service center.
  • Page 4 1. Important brightness, avoid the fluorescent • Humidity: 20-80% RH lighting, and surfaces that don't Important information for Burn-in/ reflect too much light. Ghost image • Seeing a doctor if your symptoms. • Always activate a moving screen Maintenance saver program when you leave your monitor unattended.
  • Page 5: Notational Descriptions

    1. Important Note 1.2 Notational Descriptions Consult a service technician if the The following subsections describe monitor does not operate normally, or notational conventions used in this you are not sure what procedure to take document. when the operating instructions given in this manual have been followed.
  • Page 6: Disposal Of Product And Packing Material

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-...
  • Page 7: Setting Up The Monitor

    Top Victory Investments Ltd. or one of its a liates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
  • Page 8 2. Setting up the monitor Connecting to your computer 4. Plug the power cord of your computer and your monitor into a nearby outlet. 5. Turn on your computer and monitor. If the monitor displays an image, installation is complete. Fast Charger 9 10 USB Hub...
  • Page 9: Operating The Monitor

    What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 10 2. Setting up the monitor The OSD Menu Main menu Sub menu Ambiglow Ambiglow Bright, Brighter, Brightest Below is an overall view of the structure Auto Mode Bright, Brighter, Brightest of the On-Screen Display. You can use User De ne White, Red,Rose,Magenta,Violet, Blue,Azure,Cyan,Aquamarine,Green, Chartreuse,Yellow,Orange...
  • Page 11: Multiview

    20° complex multi-tasking work a breeze. -5° Why do I need it? With the ultra high resolution Philips MultiView display, you can experience a world of connectivity in a comfortable way in the office or at home. With this display, you can conveniently enjoy multiple content sources at one screen.
  • Page 12 2. Setting up the monitor 2. Toggle to the up or down to select Note main menu [PIP / PBP], then toggle The black strip shows on the top and to the right to confirm. the bottom of the screen for the correct aspect ratio when in the PBP mode.
  • Page 13: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor Swap A and B source in [PBP] mode: ↔ (main) (main) • Off: Stop MultiView function. (main) Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. VESA Mounting Screw M4 x 8mm. Always contact manufacturer for wall- 2.4 Remove the Base Assembly mount installation.
  • Page 14: Image Optimization

    Whether you're working There are multiple modes to select: FPS, with text applications, displaying images Racing, RTS, Gamer1, Gamer2, LowBlue or watching a video, Philips SmartImage Mode, SmartUniformity and Off. delivers great optimized monitor performance.
  • Page 15: Smartcontrast

    Developed for wellbeing, automatically optimizes a Monitor's Philips LowBlue Mode setting uses a contrast ratio for maximum visual clarity smart software technology to reduce and viewing enjoyment, stepping up harmful shortwave blue light.
  • Page 16: Ambiglow

    What is it?  Ambiglow adds a new dimension to your viewing experience. This patented  Philips technology uses two rows of bright LED’s projecting a glow of  light on the bottom of the display.  The innovative Ambiglow processor...
  • Page 17: Adaptive Sync

    5. Adaptive Sync • AMD Radeon R7 360 5. Adaptive Sync • AMD Radeon R9 295X2 • AMD Radeon R9 290X • AMD Radeon R9 290 Adaptive Sync • AMD Radeon R9 285 • AMD Radeon R7 260X PC gaming has long been an imperfect •...
  • Page 18: Hdr

    6. HDR 6. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desk top, enter to Display settings. STEP 5 2. Select the display/monitor. 3. Adjust resolution to 3840 x 2160 4. Turn the “HDR and WCG” to on mode.
  • Page 19: Technical Specifications

    7. Technical Specifications 7. Technical Specifications Picture/Display Monitor Panel Type Backlight Panel Size 31.5" W (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.181 x 0.181 mm SmartContrast 80,000,000:1 Response Time (typ.) 9.5 ms(GtG) SmartResponse 4 ms (GtG) Optimum Resolution 3840x2160 @ 60Hz Viewing Angle 178°...
  • Page 20 7. Technical Specifications AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 50Hz 115VAC , 60Hz 230VAC, 50Hz Normal Operation 71.93 W (typ.) 72.03 W (typ.) 72.13 W (typ.) Sleep (Standby) <0.5 W (typ.) <0.5 W (typ.) <0.5 W (typ.) <0.3 W (typ.)
  • Page 21 Finish Glossy Note EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
  • Page 22: Resolution & Preset Modes

    7. Technical Specifications Note 7.1 Resolution & Preset Modes • Please notice that your display Maximum Resolution works best at native resolution 3840x2160@60Hz of 3840 x 2160@ 60Hz. For best (DP 1.4/HDMI 2.0+HDR) display quality, please follow this resolution recommendation. Recommended Resolution • The highest supporting screen 3840x2160@60Hz...
  • Page 23: Power Management

    8. Power Management 8. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.
  • Page 24: Customer Care And Warranty

    9.1 Philips’ Flat Panel Monitors single black pixel. Other combinations Pixel Defect Policy of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the Types of Pixel Defects...
  • Page 25 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off'. must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
  • Page 26 9. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >10mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 15 or fewer...
  • Page 27: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
  • Page 28: Troubleshooting & Faqs

    • Disconnect the monitor from mains This page deals with problems that can power source immediately for safety be corrected by a user. If the problem • Contact with Philips customer still persists after you have tried these service representative immediately. solutions, contact Philips customer service representative.
  • Page 29: General Faqs

    • Shut down your computer, resolution. disconnect your old monitor and reconnect your Philips monitor. Green, red, blue, dark, and white dots • Turn on your monitor and then turn appears on the screen on your PC.
  • Page 30 Can I connect my monitor to any Ans.: For normal cleaning, use a clean, PC, workstation or Mac? soft cloth. For extensive cleaning, Ans.: Yes. All Philips monitors are fully please use isopropyl alcohol. Do compatible with standard PCs, not use other solvents such as Macs and workstations.
  • Page 31 10. Troubleshooting & FAQs or "ghost imaging" will disappear gradually over a period of time after the power has been switched off. Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your monitor will display unchanging static content.
  • Page 32 Top Victory Investments Ltd. or one of its affiliates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
