REVER MCX1 MECHANICAL BRAKE INSTRUCTIONS
Thank you for choosing the Rever MCX1 brake system. To ensure the
best performance and reliability, please follow the instructions provided.
If you have any questions please contact an authorized dealer or Rever
representative. Enjoy and ride safely.
WARNING: CYCLING CAN BE DANGEROUS. BICYCLE PRODUCTS SHOULD BE
INSTALLED AND SERVICED BY A PROFESSIONAL MECHANIC. NEVER MODIFY YOUR
BICYCLE OR ACCESSORIES. READ AND FOLLOW ALL PRODUCT INSTRUCTIONS
AND WARNINGS INCLUDING INFORMATION ON THE MANUFACTURER'S WEBSITE.
INSPECT YOUR BICYCLE BEFORE EVERY RIDE. ALWAYS WEAR A HELMET.
Additional Product and Safety Information can be found at —ride-rever.com/safety
INTENDED USE
ASTM Condition 2: Smooth pavement to smooth gravel roads and
groomed trails with low-angle grades and drop offs of less than 6" (15cm).
COMPATIBILITY
Brake Levers: The MCX1 caliper is compatible with any short-pull, dropbar
lever designed for cyclocross and road riding.
Frame and Fork: The MCX1 caliper features a 74mm Post Mount. It will
work with most frames and forks and either 140mm or 160mm rotors, but
may require the use of an adapter.
Fork Configuration Rotor Size
140mm Post Mount 160mm
160mm Post Mount 160mm
51mm I.S. Tab 160mm
Frame Configuration
140mm Post Mount 140mm
140mm Post Mount 160mm
160mm Post Mount 160mm
51mm I.S. Tab 140mm
Adapter Needed
160mm Post/Post Adapter
(included)
None—direct fit
160mm Rever Post/IS Adapter
(included)
None—direct fit
160mm Post/Post Adapter
None—direct fit
140mm Rever Post/IS Adapter
(included)

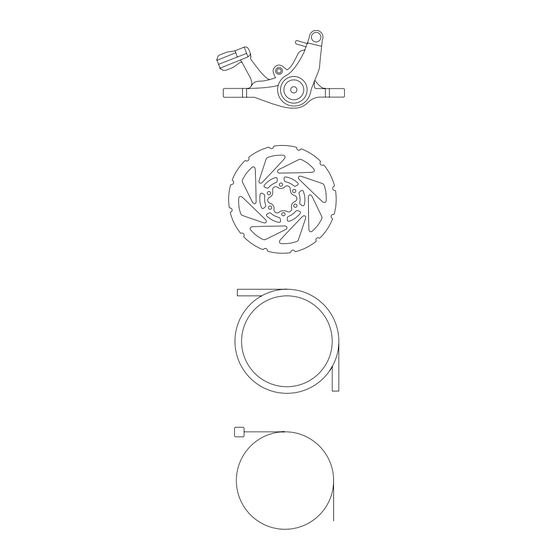

INCLUDED HARDWARE
Qty Description
1 Caliper
1 Single-piece rotor, 6-bolt, 160mm
2 Disc brake pad
1 140/160mm I.S. adapter
1 160mm PM adapter
1 Kevlar ® -reinforced
housing with EZ Bend
TOOLS NEEDED
• Cable and housing cutter
• Cable crimper
• Awl
• 3mm hex wrench
• 5mm hex wrench
• T25 Torx wrench
• Torque wrench
Usage Location
Caliper fixing bolt
Cable fixing bolt
Pad adjustment screws
(inboard and outboard)
Pad spring fixing bolt
Rotor mounting bolts
Qty Description
1 Ultra-slick stainless cable
1 Indexed inline brake adjuster
1 Hooded end cap
2 Lined end cap
2 Cable tip
4 Mini tube top
1 T-25 Torx wrench
Tool
5mm hex wrench
5mm hex wrench
3mm hex wrench
3mm hex wrench
T25 Torx wrench
10644 03/15
