Assistive Sound AS201T Manual

Uhf-pll 16-channel switchable tour guide and wireless microphone system
Hide thumbs

Advertisement

Table of Contents

AS201T
UHF - PLL 16-Channel switchable Tour
Guide and wireless microphone system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS201T and is the answer not in the manual?

Questions and answers

Summary of Contents for Assistive Sound AS201T

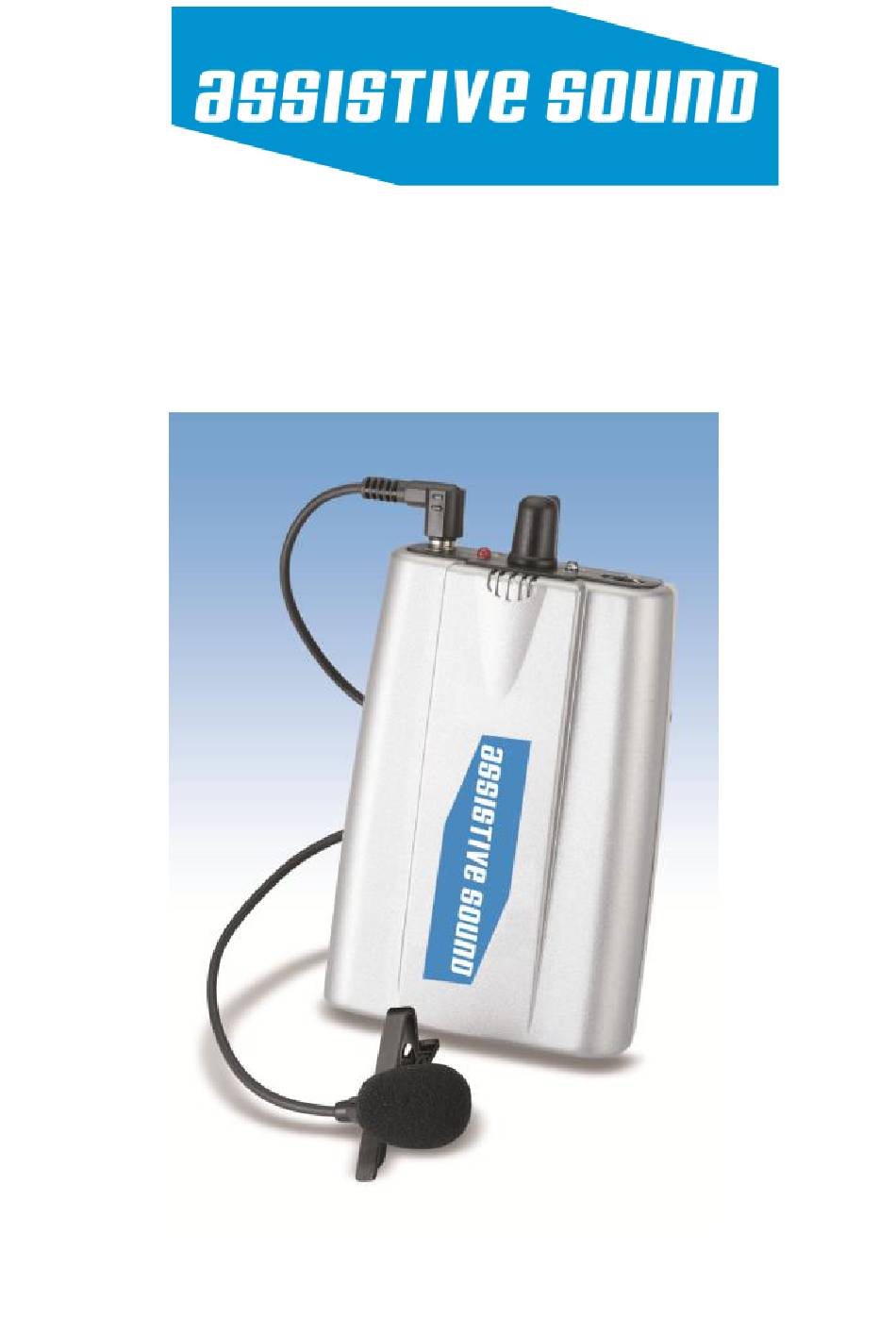

  • Page 1 AS201T UHF - PLL 16-Channel switchable Tour Guide and wireless microphone system.
  • Page 2 Thank you for choosing this UHF - PLL 16 Channel switchable tour guide and wireless microphone system AS201T. This manual includes the complete functions and operations of the tour guide and wireless microphone systems. Please read this manual carefully in order to operate and use the system to its fullest potential.

  • Page 3: Installation And Operation

    AS201T Beltpack transmitter Installation and operation Inserting the batteries into the transmitter. Open the battery cover by pushing the open mark and sliding the cover down. Insert two 1.5V AA type dry cell batteries or two 1.2V AA size NiMH rechargeable batteries into the battery box.
  • Page 4 AS201T Beltpack transmitter AS201T Transmitter operation. The transmitter has one switch only for power and volume adjustment. Turn the switch clockwise to active the transmitter and adjust volume. Turn counter-clockwise to deactivate the transmitter and minimize volume. When turning on the transmitter, the TX light will light up green, this indicates that the transmitter is transmitting normally.
  • Page 5 AS201T Beltpack transmitter Maintenance Avoid excessive heat Don’t leave the transmitter in the hot sun, on a radiator or near other sources of high temperature. Avoid rough handling The transmitter may be damaged if dropped. Fully charged batteries Before storing, fully recharge the batteries.

  • Page 6: Trouble Shooting

    AS201T Beltpack transmitter Trouble shooting Problem Solution No power Check if the power switch is turned on. Turn off the unit and check if the batteries run out or are not installed properly No sound Check if the transmitter and the receiver use the same channel.
  • Page 7 Feature AS201T transmitter, with build-in microphone. Can also work with condenser microphones or headset microphones. AS201T transmitter can use a DC+5V switching adapter to provide power and can use chargers (AS402C, AS412C, AS436C or AS450C) for recharging internal batteries. applicable occasion;...

  • Page 8: Specifications

    AS201T Beltpack transmitter Specifications AS201T Beltpack transmitter  Oscillation mode PLL synthesized  Carrier frequency 863~865 MHz range  Frequency 16 Pre-programmed switchable frequencies  Max deviation +/- 30 kHz, with level limiting  Dynamic range >80 dB  T.H.D.
