Summary of Contents for Stulz CyberRow DX Series

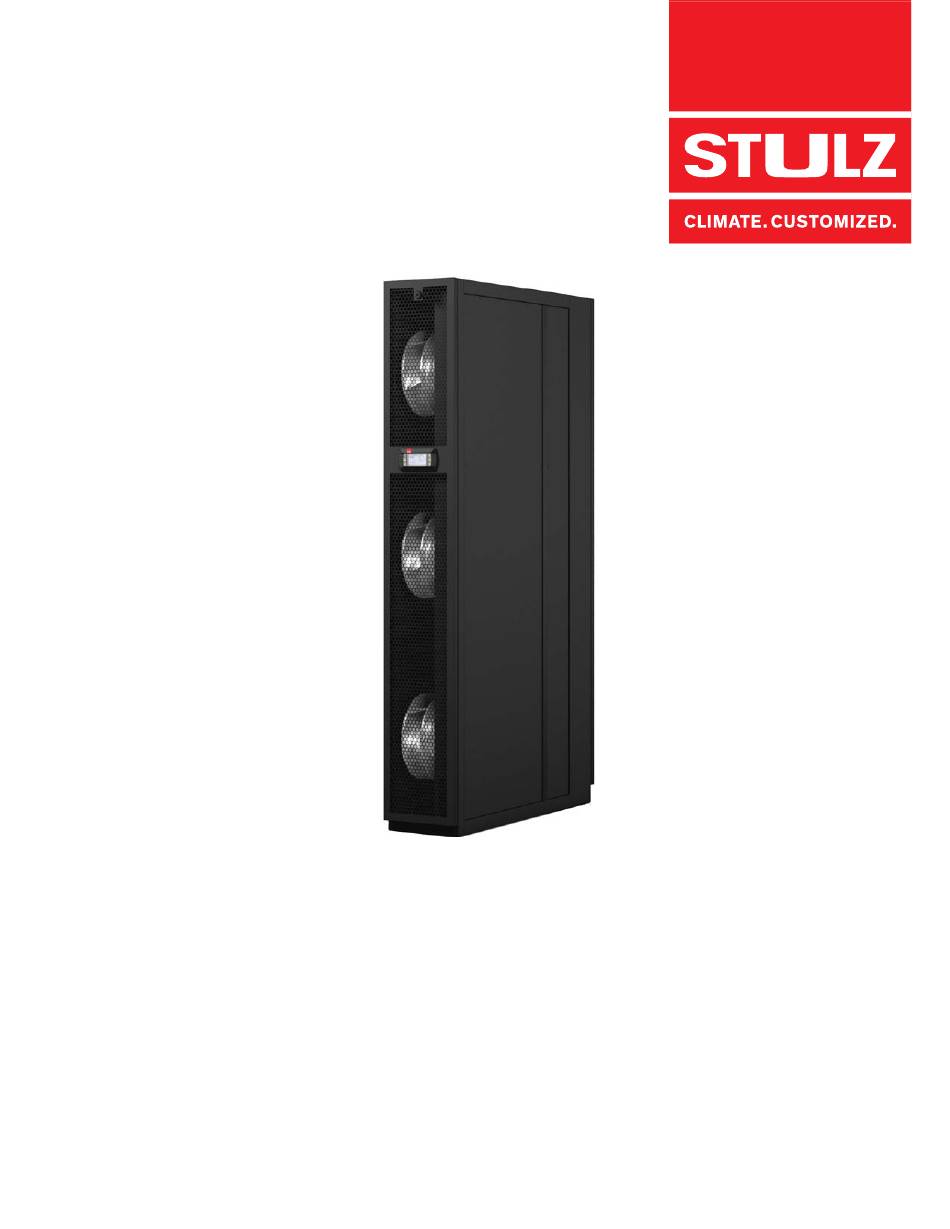

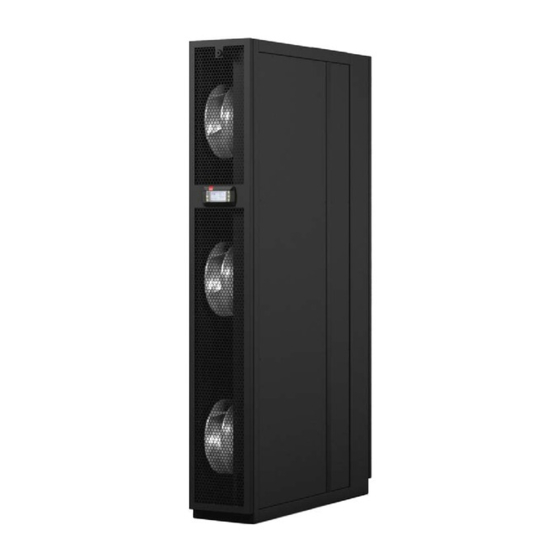

- Page 1 CYBERROW DX ENGINEERING MANUAL CyberRow ® Row-Based Precision Air Handling Units 12kW - 33kW / 60 Hz DX Air, Water, Glycol Floor Mounted Systems Engineering Manual © STULZ USA – All rights reserved QEWR002G...
- Page 2 Today, STULZ has seven global production plants, and hundreds of sales and service partners around the world. MADE IN THE USA STULZ believes that every region of the world has specifi c mission critical cooling needs. This is why STULZ Air Technology Systems, Inc.
-
Page 3: Table Of Contents
Model Features ............4 Model Nomenclature Specifi cations ....... 5 Confi gurations ............6 Product Features ............7 Technical Data ............. 8-10 Electrical Data............11 Sound Data ..............11 Dimensional Data ............12 Product Guide Specifi cations ......13-17 © STULZ USA – All rights reserved QEWR002G... -
Page 4: Model Nomenclature
• High air fl ow with less noise • Built in redundancy and capacity assist functions • Top and bottom piping options • Casters and Leveling Feet included • Indoor use only • Installation on raised and non-raised fl oors QEWR002G ©STULZ USA – All rights reserved... -
Page 5: Model Nomenclature Specifi Cations
Condenser (source) glycol solution shall be provided via a STULZ model GPS - _ - _ remote glycol pump package and F _ S -_ dry cooler system. -
Page 6: Confi Gurations
CYBERROW DX ENGINEERING MANUAL Open aisle confi guration organizes racks in a single row or in hot and cold aisle rows, but without containment. The STULZ CyberRow draws hot air from the external environment or hot aisle, removes the heat, and supplies cooled air to the front of IT equipment in the cold aisle. -
Page 7: Product Features
Head Pressure Control (-30°F Low Ambient Flooded and Fan Speed Control) Optional Optional Optional WATER/GLYCOL COOLED SYSTEMS Stainless Steel Brazed-Plate (W/G) Standard Standard Standard 2-Way 600 psig Regulating Valve (W/G) Standard Standard Standard 3-Way 600 psig Regulating Valve (W/G) Optional Optional Optional © STULZ USA – All rights reserved QEWR002G... -
Page 8: Technical Data
5/8" O.D. Connections (Air Cooled) Physical Data Approx. Weight (lbs) Dimensions: (H”xW”xD”) 77.8" x 11.6" x 42.1" (without side diverter panel option) Approx. Shipping Weight (lbs) Approx.Shipping Dimensions 84" x 22" x 48" (H”xW”xD”) QEWR002G ©STULZ USA – All rights reserved... - Page 9 1-1/4” 1-1/4” Physical Data Approx. Weight (lbs) Dimensions: (H”xW”xD”) (without side diverter panel op- 77.8" x 11.6" x 42.1 tion) Approx. Shipping Weight (lbs) Approx.Shipping Dimensions 84" x 22" x 48" (H”xW”xD”) © STULZ USA – All rights reserved QEWR002G...
- Page 10 23.9 Sensible 12.8 14.1 12.5 24.9 27.8 23.9 80˚FDB/62.8˚FWB Entering Air Temperature Total Sensible Total 12.4 13.7 12.1 24.2 26.8 23.7 Sensible 12.4 13.7 12.0 24.1 25.8 23.7 STULZ CyberRow with Server Racks QEWR002G ©STULZ USA – All rights reserved...
-
Page 11: Electrical Data
The measurement surface is chosen to enclose the noise source(s) so that the sound power level can be determined.) © STULZ USA – All rights reserved QEWR002G... -
Page 12: Dimensional Data
CONDENSATE CONNECTION CONNECTION CONNECTION PIPING PIPING PIPING CONNECTION CONNECTIONS CONNECTIONS 42.1" 42.1" 42.1" POWER POWER POWER CONNECTIONS CONNECTIONS CONNECTION 11.6" 11.6" 11.6" 77.8" 77.8" 77.8" Side Diverting Front Panel Option 48.3" 48.3" 48.3" QEWR002G ©STULZ USA – All rights reserved... -
Page 13: Product Guide Specifi Cations
This specifi cation describes requirements for a precision insulate the cabinet, dampen noise and prevent damage environmental control system. The STULZ CyberRow is a row-based from vibration. Casters and leveling feet shall be included to cooling system that shall provide precision temperature control for... - Page 14 SUPPLY AIR CONTROL (OPTIONAL) EVAPORATOR COIL The evaporator coil shall be constructed of seamless The STULZ CyberRow shall be provided with a temperature and drawn copper tubes, mechanically bonded to tempered humidity sensor factory unit mounted in the return air stream and aluminum fi...
- Page 15 The menu driven interface shall on all three phases. The blower motor shall have thermal and short © STULZ USA – All rights reserved QEWR002G...
- Page 16 Each E² controller connected to the pLAN network shall be the return air stream. identifi ed with its own unique address. Multiple CyberRow units consisting of up to eight STULZ FIRESTAT precision air conditioners equipped with like controllers may be controlled and monitored via the E² series controller.
- Page 17 CyberRow unit’s water producing components. CODE CONFORMANCE The supplied system shall be provided with the following compli- ance approvals: Heating and Cooling Equipment UL 1995 / CAN C22.2 No. 236- 11 4rd edition. © STULZ USA – All rights reserved QEWR002G...
- Page 18 CYBERROW DX ENGINEERING MANUAL QEWR002G ©STULZ USA – All rights reserved...
- Page 19 CYBERROW DX ENGINEERING MANUAL © STULZ USA – All rights reserved QEWR002G...
- Page 20 STULZ North American Headquarters STULZ AIR TECHNOLOGY SYSTEMS (STULZ USA) , INC. 1572 Tilco Drive | Frederick, MD 21704 Tel: 301.620.2033 | Fax: 301.662.5487 | info@stulz-ats.com STULZ Company Headquarters STULZ GmbH Holsteiner Chaussee 283 22457 Hamburg products@stulz.de STULZ Subsidiaries STULZ Australia Pty. Ltd.
