Summary of Contents for Aicok MBF-004

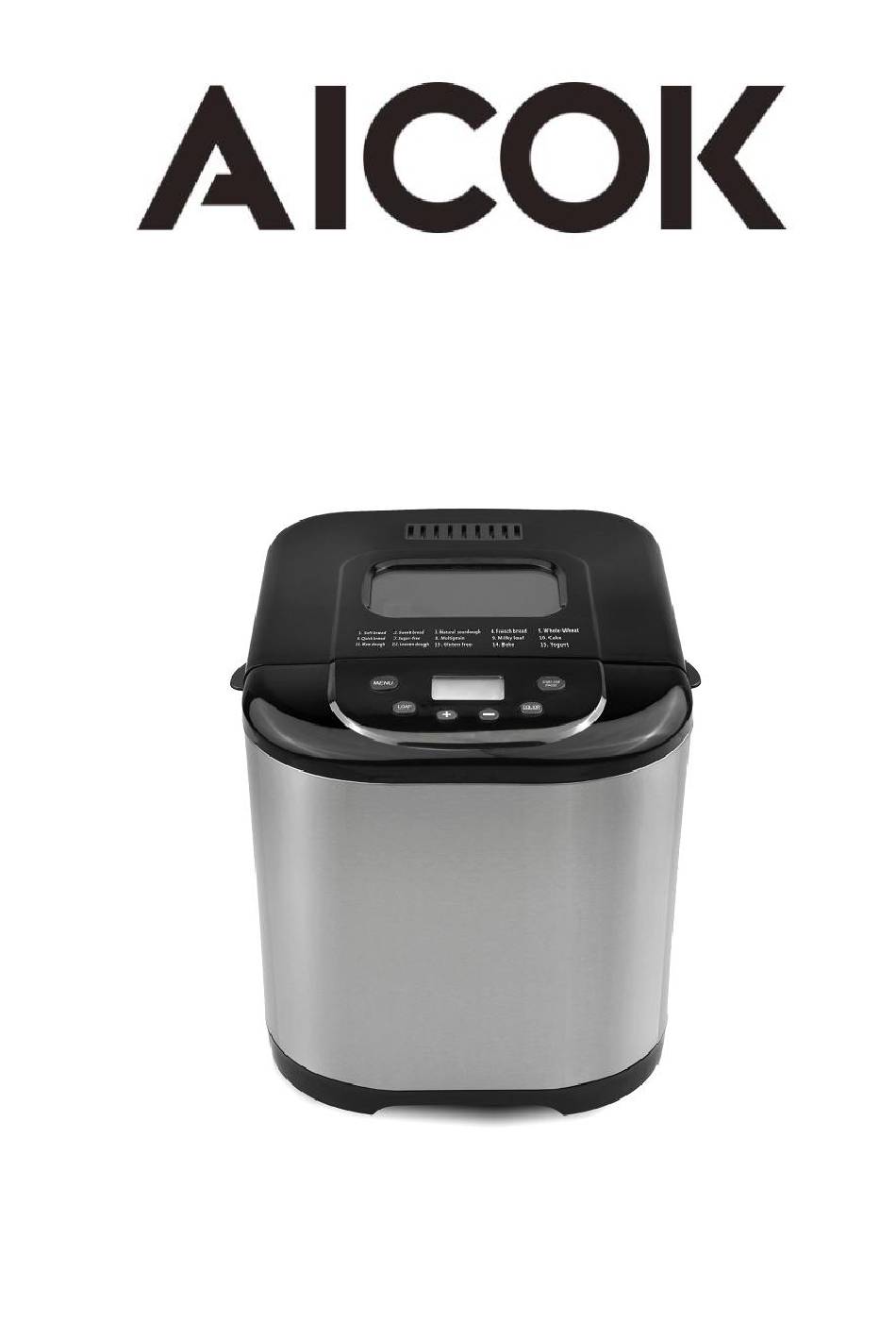

- Page 1 Bread Maker 15 Function MBF-004 Please read the manual fully before using the appliance and keep the manual safe for future reference.
-
Page 2: Table Of Contents
CONTENTS PAGES : 1.IMPORTANT SAFEGUARDS------------------------03 2.Product Features ----------------------------------04-05 --------------05-06 3.QUICK-IDEALS-TO-MAKE-BREADS 4.INTRODUCTION OF CONTROL PANEL--- -06-08 --------------------------------- 08-12 5.OPERATING GUIDE -----------12-13 6.SPECIFIC FUNCTIONS DESCRIPTION -------------------------13-18 7.RECIPES RECOMMENDED 8.CLEANING AND MAINTENANCE -------------18-19 9.TECHNICAL SPECIFICATION ----------------------19 10.CIRCUIT DIAGRAM ----------------------------------20 11.PROBLEM SOLUTION --------------------------20-21... -
Page 3: Important Safeguards
1.IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed: 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Product Features
2.Product Features 1. LCD Indicator controlled with Microcomputer 2. Automatically making bread, Cake, Kneading, Jam, Yogurt, Baking. 3. Multiple taste selection, include Sweet bread, French bread, etc. Product Parts Viewing Window Display screen Handle control Panel Stainless Steel Housing Bread Barrel Measuring Measuring Spoon... -
Page 5: Quick-Ideals-To-Make-Breads
Explanation on Measuring Cup Cup of liquid. (Please see the right graphic) 1. When you take some liquid with transparent cup and try to measure desirable amount, place measuring cup on the flat table at your eyes level. If need to add egg or milk, you would have to mix them into water before reading scale. -
Page 6: Introduction Of Control Panel
5. After plugging bread baker to outlet screen displays Defaulted Menu immediately: 750g /Medium Color/ Soft Bread 6．Press “Start/Stop/Pause” with a buzzer sound, indicator light flashed, and bread maker begins to knead. 7. The bread is done as soon as the countdown is over. At this time, program auto-starts “Keep Warm”. - Page 7 In setting status, pick one of 500g/750g/1000g as bread weight. Except for 1 to 9 and 13, “loaf” can’t be adjusted. And three weight 500g/750g/1000g choice. 3. “COLOR” Select bread color by pressing Light/Medium/Dark one by one in circle for Whole Wheat Bread, French Bread …...
-
Page 8: Operating Guide
“Reservation”, after set your reservation time, click button “Start / Stop/Pause”, ":" starts flashing, reservation function is activated, the countdown begins. If you do not want an appointment, click on “Start / Stop/Pause” button, ":" starts flashing, bread maker start working. ★... - Page 9 Yeast Powder Flour or other Stuff Mixture of Water, Oil, Sugar and Salt 3. Put the barrel holding the mixture of material into container and close the lid. a. If you found a obstruct with barrel during pressing down, you could lift barrel again and turn the axle at the bottom of barrel to the another angle.
- Page 10 Press “ “ Press “ “ Adjust to your desirable time Please refer to “Reserve Function ”for counting Reserve Time 8. Start The Unit and Begin to Make Bread Press “START/STOP/PAUSE”, begin to Count Down . ★ After starting Bread Maker the unit begins to stir flour. For avoiding the splashing of flour, the program can auto-set interval stirring at the first 7 minutes.
- Page 11 2. Non-heat ①press “Start/Stop/Pause” for 1second ②remove plug from outlet 10. Take Out Bread Because bread is very hot, please wear glove and shake bread lightly before taking it out. FOR THE FIRST USE The appliance may emit a little smoke and a characteristic smell when you turn it on for the first time.
-
Page 12: Specific Functions Description
You can make Leaven dough. As the ingredients for kneading mentioned in Recipe Book (no salt, sugar and milk powder) you can select “Leaven dough” and start it. Press “Menu” ,select program 12, it’s work the“Leaven dough”, default time is 1 hour and 24 minutes. -
Page 13: Recipes Recommended
⑴ A buzzer sound is given as electricity is connected. ⑵ A buzzer sound is given as Loaf, Color, Menu or Time Setup is pressed. ⑶A buzzer sound is given as switch “Start/Stop/Pause”. ⑷ In kneading process the buzzer sound is given continuously to remind you of adding material. - Page 14 Sugar 1 Big Spoon 2 Big Spoon 3 Big Spoon Milk Powder 2 Big Spoons 3 Big Spoons 5 Big Spoons Flour 300g 400g 500g Yeast Powder 3/4 Small Spoon 1 Small Spoon 1 1/4 Small Spoon 2. Sweet Material 500g 750g 1000g...
- Page 15 Butter 2Big Spoon 2Big Spoons 3Big Spoons Table Salt 1/2Small Spoon 2/3 Small Spoon 3/4 Small Spoons Sugar 2Big Spoon 3Big Spoons 4Big Spoons Whole Wheat Flour 150g 200g 250g Flour 150g 200g 250g Yeast Powder 1Small Spoon 1 1/4Small Spoons 1 1/2Small Spoons 6.
- Page 16 Yeast Powder 1Small Spoon 1 1/4Small Spoons 1 1/2Small Spoons 9. Milky Loaf Material 500g 750g 1000g Milk 130ml 190ml 250ml Butter 2Big Spoon 2Big Spoons 3Big Spoons Sugar 2Big Spoon 3Big Spoons 4Big Spoons Flour 280g 375g 450g salt 1/2small Spoon 3/4small Spoon 1small Spoon...
- Page 17 Table Salt 1/3 Small Spoon 1/2 Small Spoon 1 Small Spoon Sugar 1 Big Spoon 1 Big Spoon 1 Big Spoon Flour 200g 300g 400g Yeast Powder 1 Small Spoon 1 Small Spoon 1 Small Spoon 13. Gluten free Material 500g 750g 1000g...
-
Page 18: Cleaning And Maintenance
Different flours have different water absorption. Please adjust water amount according to used flour type. suitable Lacking Too Much Water of Water Water ①When too much water is added, the dough will become so soft that can’t be rounded and even become sticky. If so, the bread made out would be very hard and with a flat or rough surface and a texture with bigger pore, no elasticity. -
Page 19: Technical Specification
2. Air relative humidity should be lower than 95% and temperature should be 25°C. 3. Appropriate Temperature for storage is -40°C ~60°C. 4. No inflammable gas, corrosive gas or conducting dust in air. 9.TECHNICAL SPECIFICATION Item No. MBF-004 Rating Voltage 220-240V～50Hz/60Hz Rating Power 650W... -
Page 20: Circuit Diagram
10.CIRCUIT DIAGRAM 11.PROBLEM SOLUTION The answers corresponding to the questions mentioned here are for your reference only. If there are possible serious problems or damage with the machine, please contact maintenance service or dial service hotline for more help. Defects possible Issues Solution Check if plug into outlet... - Page 21 Department There is a litter of hard Remove anything found stuffs or crumbs in barrel inside the unit before Abnormal Sound re-start Lock Barrel into position Re-place bread barrel into position Wire cord damaged Keep wire cord away from heated objects Abnormal Smell/Taste something left on heating Remove the matter left on...
- Page 22 Aicok Home Essentials Live Comfortable Shenzhen Impression E-commerce Co., Ltd Booth No.3H012, Trading Plaza, No.5, Huannan City, Pinghu Street, Longgang District, Shenzhen, China Facebook Page: https://www.facebook.com/aicoks/ Website: www.aicok.cc Made in China...
