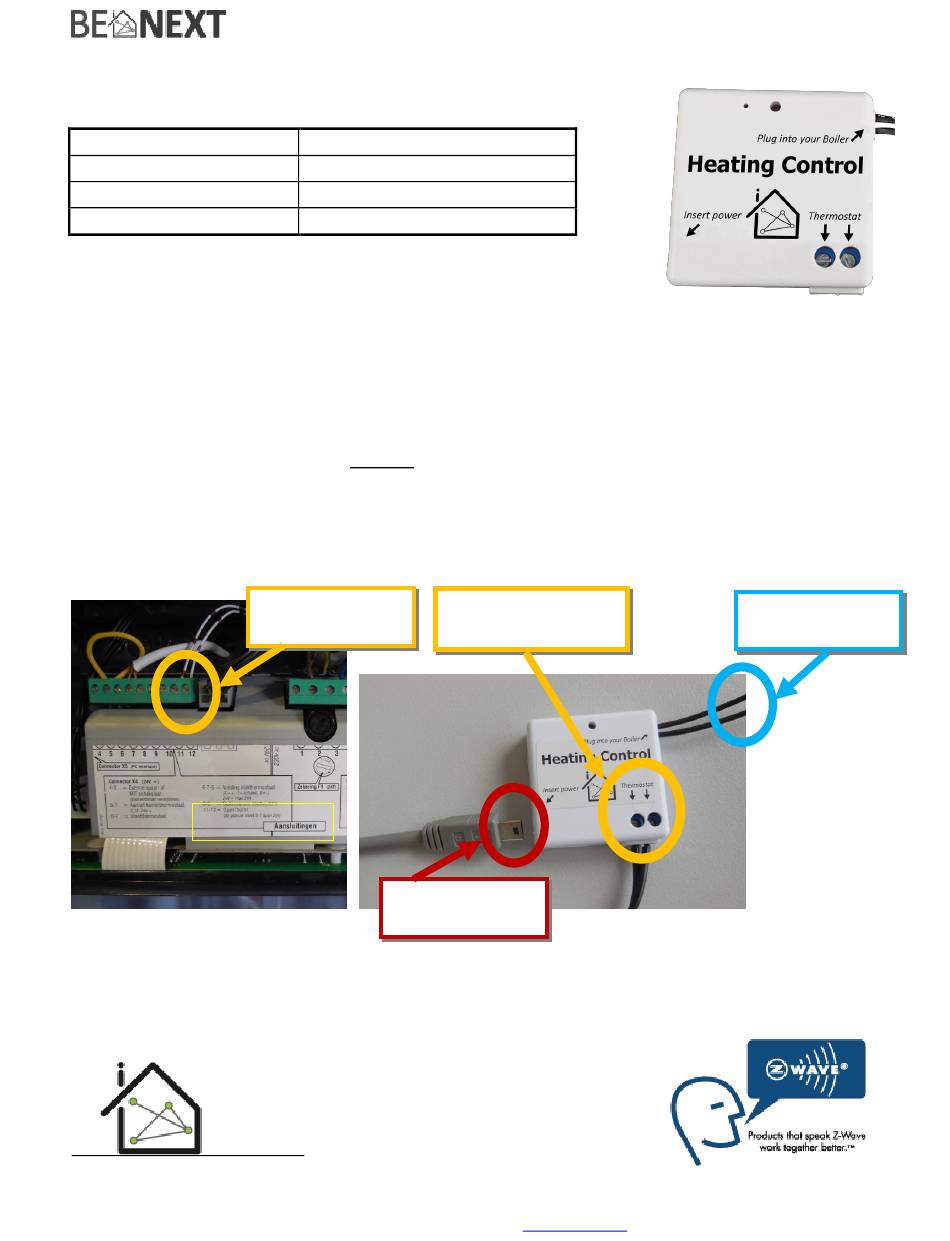

BeNext Heating Control EU Quick Start Manual

Technical specifications
Normal operating voltage
Frequency range
Wireless range
Protocols supported
Basic operations
- Override or request the temperature set point of your thermostat
- Control the heating in your house with Lifestyles and Rules
- An intern schedule which will change the temperature set points on a preconfigured timetable
- Reporting thermostat related values like room temperature
- Reporting boiler related values like boiler pressure, modulation level or water temperature
Mounting
- Place the Heating Control unit between your thermostat and your boiler. (you need both opentherm)
Example:
1. Open your boiler and lookup if it supports OpenTherm protocol.
2. Remove the wires of your thermostat and place them into the Heating Control unit.
3. Insert the Heating Control wires into the boiler connector.
4. Now place the USB power.
Include or exclude in Z-Wave network
1. Press and hold the push button for 2 seconds and release to start the inclusion or exclude process.
2. When classic inclusion failed, the product will start Network Wide Inclusion automatically.
1
Make sure your Z-Wave controller is in the correct operation mode (include or exclude).
Version 0.7
Quickstart: Heating Control EU
5 Volt (mini-USB connector)
868.42 MHz
30 ~ 50meter line of sight.
OpenTherm only!
Disconnect
thermostat wires
Connect the USB
power
1
3 September 2015
And connect here the
thermostat wires
www.benext.eu
Connect these
wires to the boiler
Page 1 of 9
