Summary of Contents for Knight ILCS

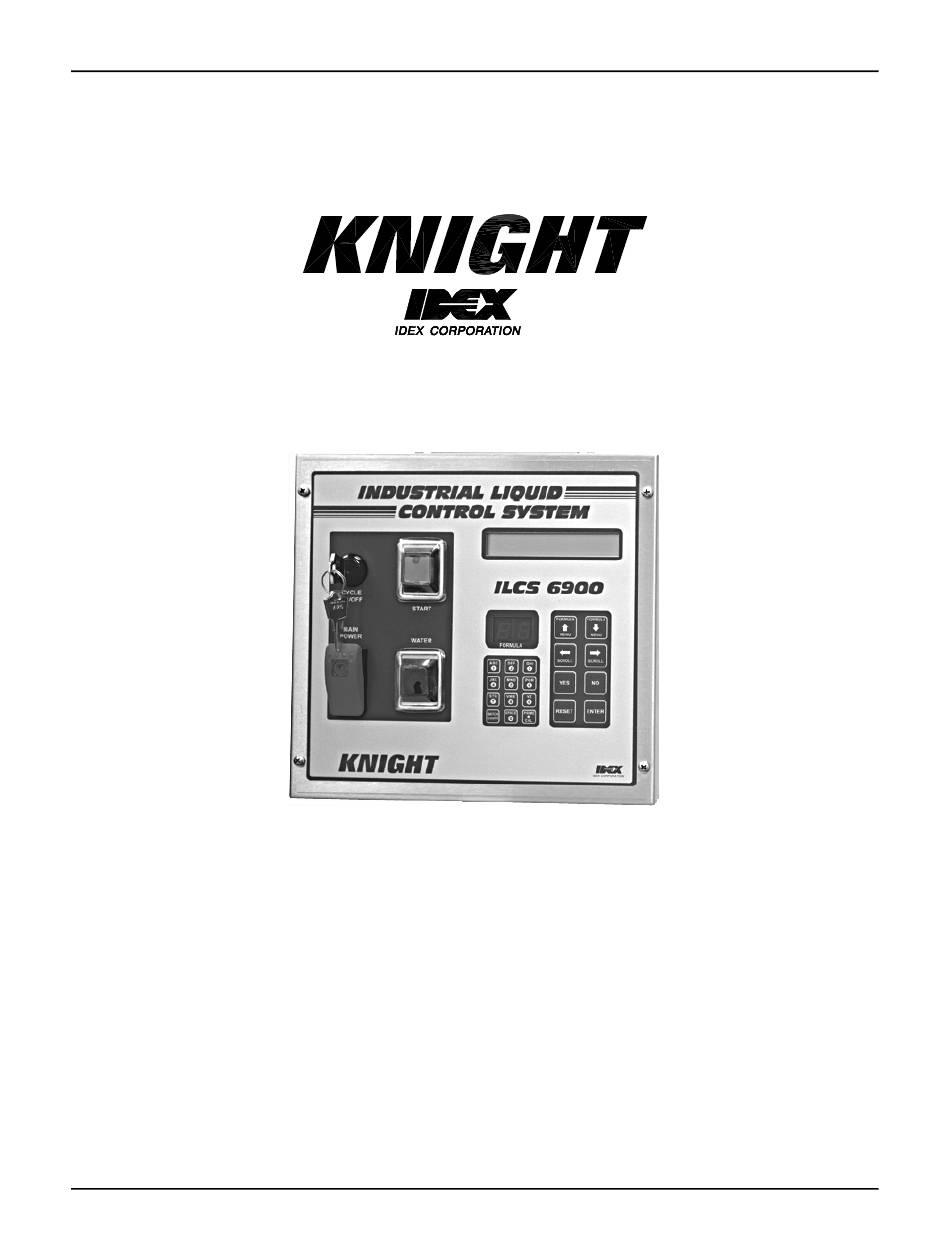

- Page 1 ILCS Version 2.1 System Programming Manual 0900511 Rev: E (06/05) Page 1 of 20...
-
Page 2: Table Of Contents
Programming Routines ..................16 Operation ......................18 Warranty Information ..................20 Knight Locations ....................20 CAUTION: Wear protective clothing and eyewear when dispensing chemicals or other materials. Observe safety handling instructions (MSDS) of chemical mfrs. CAUTION: To avoid severe or fatal shock, always disconnect main power when servicing the unit. -
Page 3: Menu Map
M E N U M A P • Clear pump volumes DISPENSER • MEMORY FUNCTIONS Clear sum/cycle report • Clear batch count • Load factory defaults • Set external memory module ID • Clear external memory module • Change dispenser ID # DISPENSER •... - Page 4 I L C S C O N T R O L L E R D I A G R A M CYCLE ON/OFF CYCLE START FORMULA NUMBER PROGRAMMING KEYSWITCH BUTTON DISPLAY DISPLAY MAIN POWER WATER FLUSH ALPHANUMERIC PROGRAMMING ON/OFF SWITCH PUSH-BUTTON KEYPAD KEYPAD...
- Page 5 M O V I N G T H R O U G H T H E M E N U S ILCS programming is done through the use of menu selections. Any menu can be entered by pressing the ENTER button, or exited by pressing RESET (or in some cases MENU ).
- Page 6 • DISPENSER Clear pump volumes MEMORY FUNCTIONS • Clear sum/cycle report • Clear batch count • Load factory defaults • Set external memory module ID • Clear external memory module CLEAR PUMP VOLUMES ? This menu selection is used to do the following: PRESS: YES OR NO –...
- Page 7 • DISPENSER Continued MEMORY FUNCTIONS CLEAR BATCH COUNT ? This menu selection is used to zero out the batch count (this is the PRESS: YES OR NO digital counter that appears on the screen when pressing the BATCH COUNT button on the control panel). Press YES to begin Y E S clearing, or press NO to move on to the next menu selection without clearing.
- Page 8 • DISPENSER Continued MEMORY FUNCTIONS SET EXT MEM MODULE ID ? This menu selection is used to set the ID number of the external PRESS: YES OR NO memory module to match the dispenser‘s ID. Y E S Press YES for a new installation, or if you have changed the dispenser ID in menu #2.
- Page 9 This can be helpful when more than one dispenser is installed at the location. (2) When running ILCS WinReporter software (optional), the ID number is used for “logging on” to the dispenser from the computer. Several dispensers can be connected together in a daisy chain format known as “multilinking”.
- Page 10 • DISPENSER Continued SETUP ROUTINES UNIT OF MEASURE = US This menu selection allows you to change the unit of measure. 1=US 2=METRIC 3=IMPERIAL Use the number buttons to choose the desired unit of measure. Press the MENU button to continue. FLUSH TIME 10 SEC Disregard this menu for systems without flush manifold.
- Page 11 • DISPENSER Change user access code REPORT SETUP ROUTINES • Change user password • Change formula access • Change report name • Change chemical names and costs • Change formula names • Set shift times • Set operating zone CHANGE USER ACCESS CODE ? This menu selection allows you to change the user access code.
- Page 12 • DISPENSER Continued REPORT SETUP ROUTINES CHANGE FORMULA ACCESS ? This menu selection allows you to restrict the users access to PRESS: YES OR NO specific formulas. How you program formula access is based on the “number of users” setting (400 or 50) in menu #2. Press YES Y E S to change or press NO to move on to the next menu selection.
- Page 13 • DISPENSER Continued REPORT SETUP ROUTINES CHANGE REPORT NAME ? This menu selection allows you to change the report name. Press PRESS: YES OR NO YES to invoke the command, or press NO to move on to the next menu selection. Y E S The screen will be blank with only a blinking cursor displayed.
- Page 14 • DISPENSER Continued REPORT SETUP ROUTINES CHANGE FORMULA NAMES ? This menu selection allows you to change formula names. Press PRESS: YES OR NO YES to invoke the command, or press NO to move on to the next menu selection. Y E S FORMULA 01 Choose the formula number on the top line and press...
-
Page 15: Maintenance Schedule
• DISPENSER Date dispenser installed MAINTENANCE SCHEDULE • Date squeeze tube last changed • Date squeeze tube last lubed DISPENSER INSTALLED This menu selection allows you to set the installation date. Use 00/00/00 the number buttons to set the date, then press ENTER. Press the MENU button to move on to the next menu selection. -
Page 16: Programming Routines
• DISPENSER Prime pumps PROGRAMMING ROUTINES • Calibrate pumps • Manually enter pump flow rates • Program formulas PRIME PUMPS ? This menu selection allows you to prime each chemical pump. PRESS: YES OR NO Press YES to invoke the command, or press NO to move on to the next menu selection. - Page 17 • DISPENSER Continued PROGRAMMING ROUTINES CALIBRATE PUMP 01 Use a container with calibration marks for this process, PRESS CAL. TO START/STOP such as a beaker or graduated cylinder (minimum 1/2 gallon recommended — larger containers will yield more accurate calibrations). Also make sure that the pump suction lines are fully primed.
-
Page 18: Operation
O P E R A T I O N When all system programming is complete, you will be ready for operation. Check that all chemical lines are primed and that the water source is turned on if using a flush manifold. (1) Press Main Power switch to ON position. - Page 19 N O T E S 0900511 Rev: E (06/05) Page 19 of 20...
- Page 20 MSDS, or Knight LLC. Knight products are not for use in potentially explosive environments. Any use of our equipment in such an environment is at the risk of the user, Knight does not accept any liability in such circumstances.
