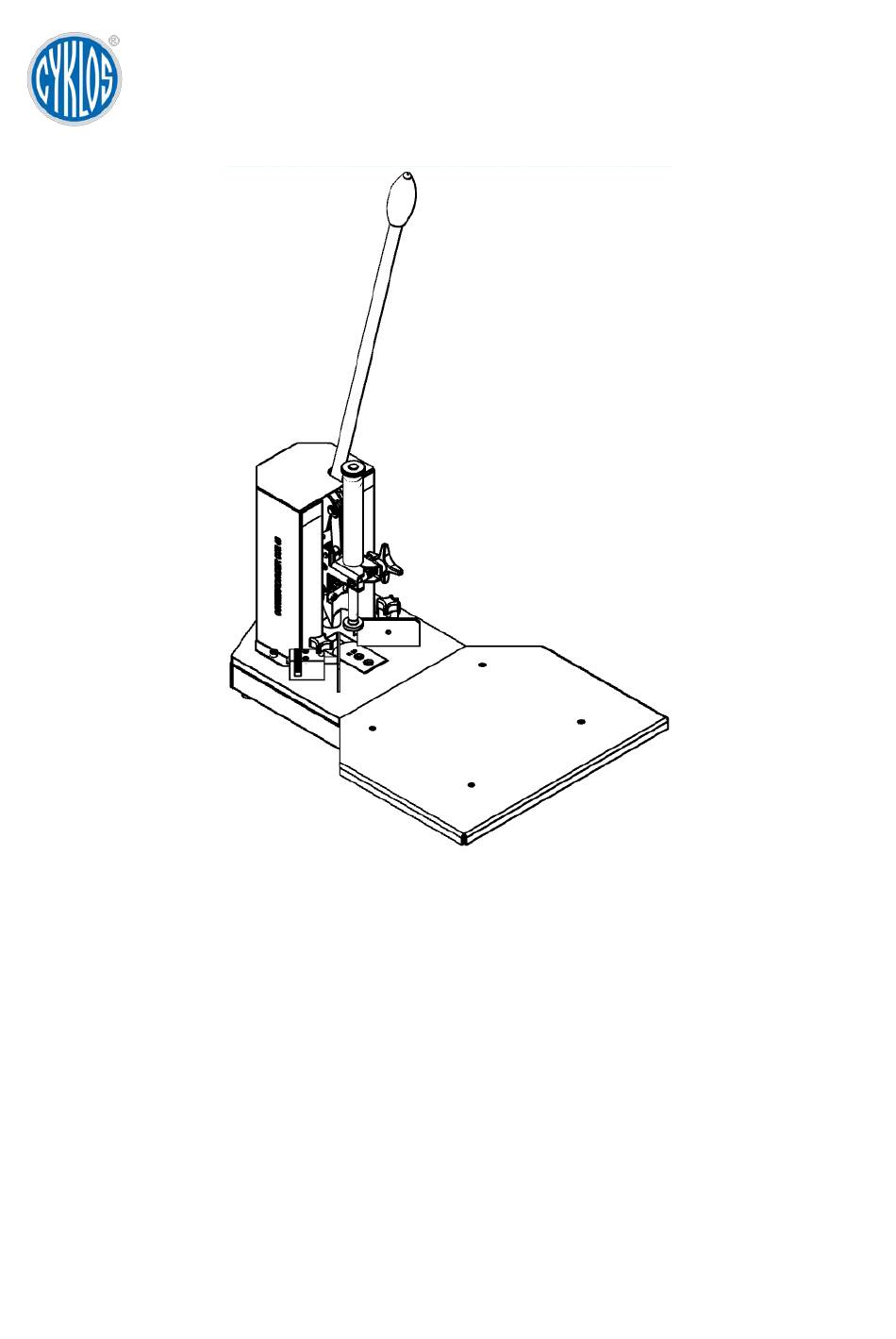

Corner Rounding Machine
This document including the attachments is exclusive intellectual property of Cyklos Choltice
(producer cooperative). Any other use (copying, distribution or sale) is possible only with
Operating Manual
CCR 40
approval of the chairman of the cooperative.
Valid from serial number:
17012461
Warning
Issue No.
1
No of sheets
6
Advertisement
Table of Contents
Summary of Contents for Cyklos CCR 40
- Page 1 Corner Rounding Machine CCR 40 Warning This document including the attachments is exclusive intellectual property of Cyklos Choltice (producer cooperative). Any other use (copying, distribution or sale) is possible only with approval of the chairman of the cooperative. Valid from serial number:...
-
Page 2: Table Of Contents
Operating Instructions | CCR 40 Contents Identification ....................... 3 Specifications ..................... 3 Prohibited operations ..................3 Parameters......................3 Main machine parts .................... 4 Operating instructions ..................5 6.1 Preparing the machine for use ................5 6.2 Paper introduction ..................... 5 6.3 Adjustment of paper down-pressure, position 4 .......... -
Page 3: Identification
Operating Instructions | CCR 40 1 Identification Type marking: CCR 40 Manufacturer: Cyklos Choltice 533 61 Choltice Czech Republic 2 Specifications The machine is designed for the manual rounding of paper sheets of A3, A4, A5 and A6 size down to business card as a minimum dimension. Optional radius R4, 6, 9, 12 and 18 mm may be used. -
Page 4: Main Machine Parts
Operating Instructions | CCR 40 5 Main machine parts 1. board 2. stop 3. slide clamp 4. holder 5. slide guide 6. pin holder with lever 7. lever with handle 8. tool – lower part 9. tool – upper part... -
Page 5: Operating Instructions
Operating Instructions | CCR 40 6 Operating instructions 6.1 Preparing the machine for use a) Read all instructions carefully before starting work on the machine. b) After unpacking mount on the lever with the handle (7). c) Insert the holder (4) into the slide clamp (3). Screw a base on the clamp and then tighten the holder with a shaped bolt in a required position. -
Page 6: Paper Cutting
Operating Instructions | CCR 40 6.5 Paper cutting The radius of the cut sheet must be symmetrical, its sharp edges must be free of frays in the transition area between the sheet edge and the radius. Make sure that the whole stack of sheets touches the stop, otherwise the rounding of all sheets cannot be guaranteed.
