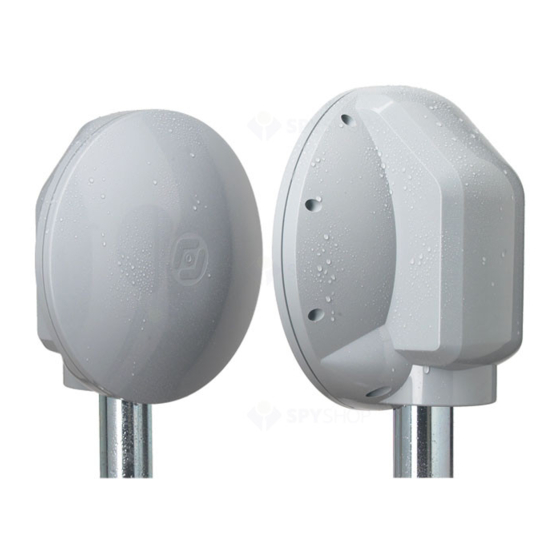

- Page 1 AVS ELECTRONICS Curtarolo (Padova) Italy www.avselectronics.com MICROWAVE BEAMS FOR INDOOR AND OUTDOOR USE BM 60 M BM 120 M BM 200 M BM60M WS A COMPANY WITH CERTIFIED SYSTEM OF QUALITY ISO9001 IST0638V1/0 - 1 -...
-
Page 2: Table Of Contents
Index Chapter 1: General Description ................. pag. 3 Compatibility with existing models ..............pag. 3 Filter of selection and compensation ..............pag. 3 Detection Area ...................... pag. 3 Chapter 2: Transmitter ....................pag. 3 Chapter 3: receiver of hard-wired systems BM60M, BM120M, BM200M ....pag. 4 Chapter 4: Receiver of the wireless system BM60M WS ......... -
Page 3: Chapter 1: General Description
MICROWAVE BEAM Models BM60M, BM120M, BM200M and BM60M WS are microwave intrusion detection systems, whose principle of working is the “field-interruption”.Thanks to the microprocessor managing the signals, they are the ideal instruments for protecting big surfaces, both indoor and outdoor, thus granting a high security standard. -
Page 4: Chapter 3: Receiver Of Hard-Wired Systems Bm60M, Bm120M, Bm200M
Chapter 3: receiver of hard-wired systems BM60M, BM120M, BM200M The receiver is made of a high-sensitivity electronic circuit coupled to the antenna; it detects the signal transmitted in its channel and measures its intensity. Special techniques of signal-elaboration allow to compensate the variations in the sorroundings and to minimize the effect of possible perturbations due to small animals or birds. -
Page 5: Chapter 4: Receiver Of The Wireless System Bm60M Ws
Chapter 4: Receiver of the wireless system BM60M WS The receiver has the same characteristics as the hard-wired models, with a few differences: • the 4-ways dip-switch on board adjusts both working frequency and the zone address set. If, e.g., the beam is addressed on frequency F2 (dip 1,3,4 in OFF and dip 2 in ON), it is automatically... -
Page 6: Chapter 5: Description Of Working
Chapter 5: Description of working The two units (transmitter: TX and receiver: RX) must be positioned facing each other at the two ends of the distance to protect. Be aware that the nature of the ground underneath, or special weather conditions might affect the real range. Working The transmitter emits a modulated microwave signal (10,525 GHz), which is received by the receiver and whose amplitude is compared with the programmed alarm threshold. -
Page 7: Chapter 6 : Positioning Of The Beams
Chapter 6 : Positioning of the beams For a correct installation of the system, choose carefully the positioning of the two units, according to following advice: 3 mt 3 mt The typical installation of BM M system consists in sorrounding the area to be protected by use of more beams couples in order to obtain a proper perimetric... - Page 8 It is absolutely necessary avoid installing a transmitter near a receiver belonging to another couple If, in a perimetric installation, the beams cross the patterns, they must always be installed in pair (2, 4, 6 etc.) - 8 -...
- Page 9 In order to extend the height of the protection, two couples of beams can be installed as shown in the picture. In this case, it is suggested to use couples of beams having close working frequency (two couples with frequency F1 and F2 or F3 and If the fence is made of bushes or metal fences subject to possible movement, the minimum distance must be 1 meter for BM60M...
- Page 10 A corridor large not less than 0,6 meters for BM60M and BM60M WS and not less than 2 meters for BM120M and BM200M, must be left free from obstacles between transmitter and receiver; a clear visual must always be granted in this area The suggested height for the installation is between 1 and 1,2 meters.
- Page 11 It is possible to install the system BM60M and BM60M WS also to protect walls. In this case, the system of installation shown in the drawing can be used, in order to avoid false alarms caused by cats or birds. In this case also, the height from ground must be between 1 and 1,2 meters.
- Page 12 • Should any pet be present and free in the installation area, it is suggested to carefully adjust sensitivity, in order to avoid the risk of false alarms due to the passage of these small targets in the areas which are very sensitive at the ground. To further decrease this risk, the height of installation of the couple can be increased a little bit.
-
Page 13: Chapter 7: Advice For Installation
Chapter 7: Advice for installation Thanks to the two slides on the sides of the fixing bracket, it is possible to adjust the inclination (max 5 upwards and 5 downwards) in both transmitter and The fixing bracket receiver. is pre-arranged installation on a steel pipe, whose... -
Page 14: Chapter 8: Installation Of The Transmitter In The Hard-Wired System
Chapter 8: Installation of the transmitter in the hard-wired system Choose the position of the transmitter, fix it at the height desired and orientate it as much precisely as you can towards the direction where the receiver will be installed Position the 4 dip-switches according to the working frequency chosen Connect the supplying (from 11,5 V to 15 V... -
Page 15: Chapter 12: Adjustments
Chapter 12: Adjustments 1) Orientate at sight the device in the direction of the transmitter and connect a voltmeter betwen the negative (-) and TP terminal (Test Point) on board OFF LED VERDE OFF LED ROSSO 2) Orientate the device in horizontal 7,3 Volt VERDE ROSSO... -
Page 16: Chapter 13: Measurements Of The Signal By Oscilloscope
Chapter 13: Measurements of the signal by oscilloscope In the drawing below, the points where to connect the oscilloscope are shown: Point A (PTP1) it shows the amplitude of the signal received Point B (PTP2) it shows the quality of the signal received Point C (PTP3) -
Page 17: Chapter 14: Sensitivity Adjustment
Chapter 14: Sensitivity Adjustment Turn trimmer SENS clockwise in the position of minimum sensitivity and make a trial walking in the central point of the distance covered (point of minimum sensitivity of the system) and check the behaviour of the green led. If necessary, increase the sensitivity progressively until obtining the answer desired After any sensitivity and orientation adjustment, it is necessary to wait about 20 seconds in order to have all signals set and make a new trial... -
Page 18: Chapter 15: Kit Term (Optional) Resistence Fo Inside Heating
Chapter 15: Kit TERM (optional) Resistence fo inside heating • For installation in an indoor or outdoor place where temperature can go lower than 0 C, it is necessary to use the heating kit Term 1 in both Receiver ad Transmitter. This has to be done in order to avoid formation of condensation which might affect the good working of the electronic circuit. -
Page 19: Chapter 17: Disqualification (Important Warning)
Chapter 17: Disqualification (Important Warning) In order to prevent and show disalignements caused by any obstacle placed in the active beam of the barriers at system off, it is necessary to connect the disqualifiation output (terminal D) in series to the exchange of the alarm relay or Balance alternatively, use it to control an... -
Page 20: Chapter 19: Br100 Kit And Lcd W (Optional) Signal Remoting-Device
Chapter 19: BR100 Kit and LCD W (optional) signal remoting-device LCD W is a Led and display module allowing c o n s t a n t monitoring of the BM M signal which it is associated. BR100 is an accessory accepting up to 4 LCD W boards. -
Page 21: Chapter 20: Optional Brackets
RX 1 RX 4 OFF LED VERDE OFF LED ROSSO OFF LED VERDE RX 2 OFF LED ROSSO OFF LED VERDE OFF LED ROSSO OFF LED VERDE OFF LED ROSSO RX 3 VERDE ROSSO VERDE ROSSO VERDE ROSSO VERDE ROSSO LED TX LED TX LED TX... -
Page 22: Information In Conformity To The Directive 1999/5/Cee For Model Bm_M
Information in conformity to the Directive 1999/5/CEE for model BM_M The product here described is in conformity to the essential prescriptions of the Directive 1999/ 5/CEE (R&TTE) on the radio-transmitting devices of low power and on the use of frequencies of the radioelectrical spectrum, in accordance with CEPT 70-03 recommandation. -
Page 23: Information In Conformity To The Directive 1999/5/Cee For Model Bm60M Ws
Information in conformity to the Directive 1999/5/CEE for model BM60M WS The product here described is in conformity to the essential prescriptions of the Directive 1999/ 5/CEE (R&TTE) on the radio-transmitting devices of low power and on the use of frequencies of the radioelectrical spectrum, in accordance with CEPT 70-03 recommandation. -
Page 24: Technical Characteristics
A VS ELECTRONICS S.p.A. Valsugana, 35010 (Padova) ITALY Tel. 9698 Fax. 9698 avs@avselectronics.com www.avselectronics.com Assistenza Tecnica: 9698 support@avselectronics.com AVS ELECTRONICS S.p.A. reserves the right to modify the technical and esthetical characteristic of the products at any time. - 24 -...
