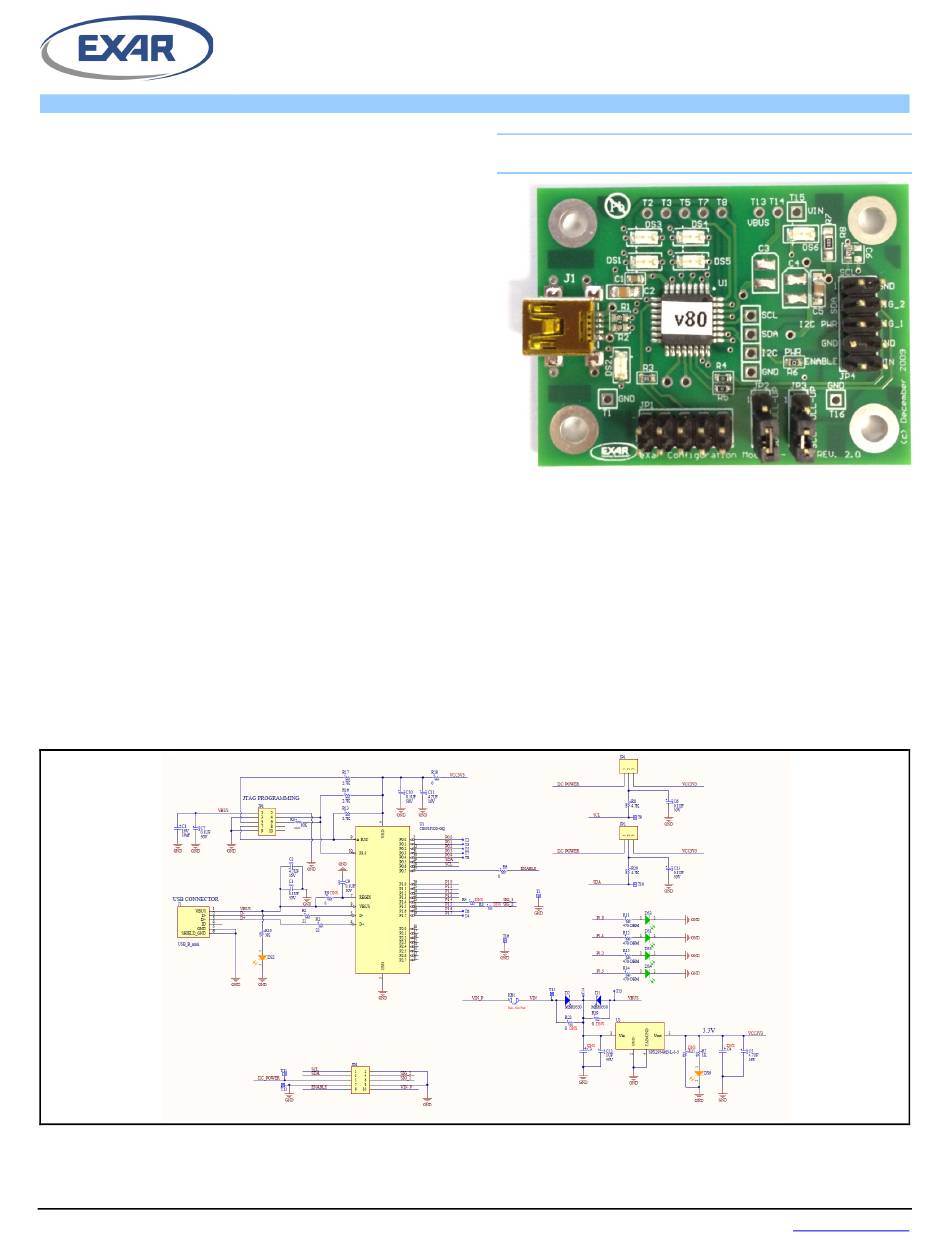

GENERAL DESCRIPTION
The XR77XXEVB-XCM-V80 (Exar Configuration
Module or XCM) is a board that is designed to
act as a USB to I
C bridge for communication
2
between a PC running PowerArchitect
configuration and design software and one of
Exar's Universal PMICs. The PMIC can either
be on an Exar evaluation board or on a
customer board. On the right opposite side of
the XCM is a 10-pin connector which is used to
connect to the user's system board in order to
communicate to any of the supported PMICs.
The XCM includes a µC with on-board flash so
that when powered from the system board, it
can act as a boot loader without the need to
have a PC connected.
This board is compatible with: XR77103,
XRP7704, XRP7708, XRP7740, XRP7713, and
XRP7714.
EVALUATION BOARD SCHEMATICS
Exar Corporation
48720 Kato Road, Fremont CA 94538, USA
4
TM
Figure 1: XR77XXEVB-XCM-V80 Evaluation Board Schematics
