Summary of Contents for Orbital Tracker CATV TRACKER OTM750 series

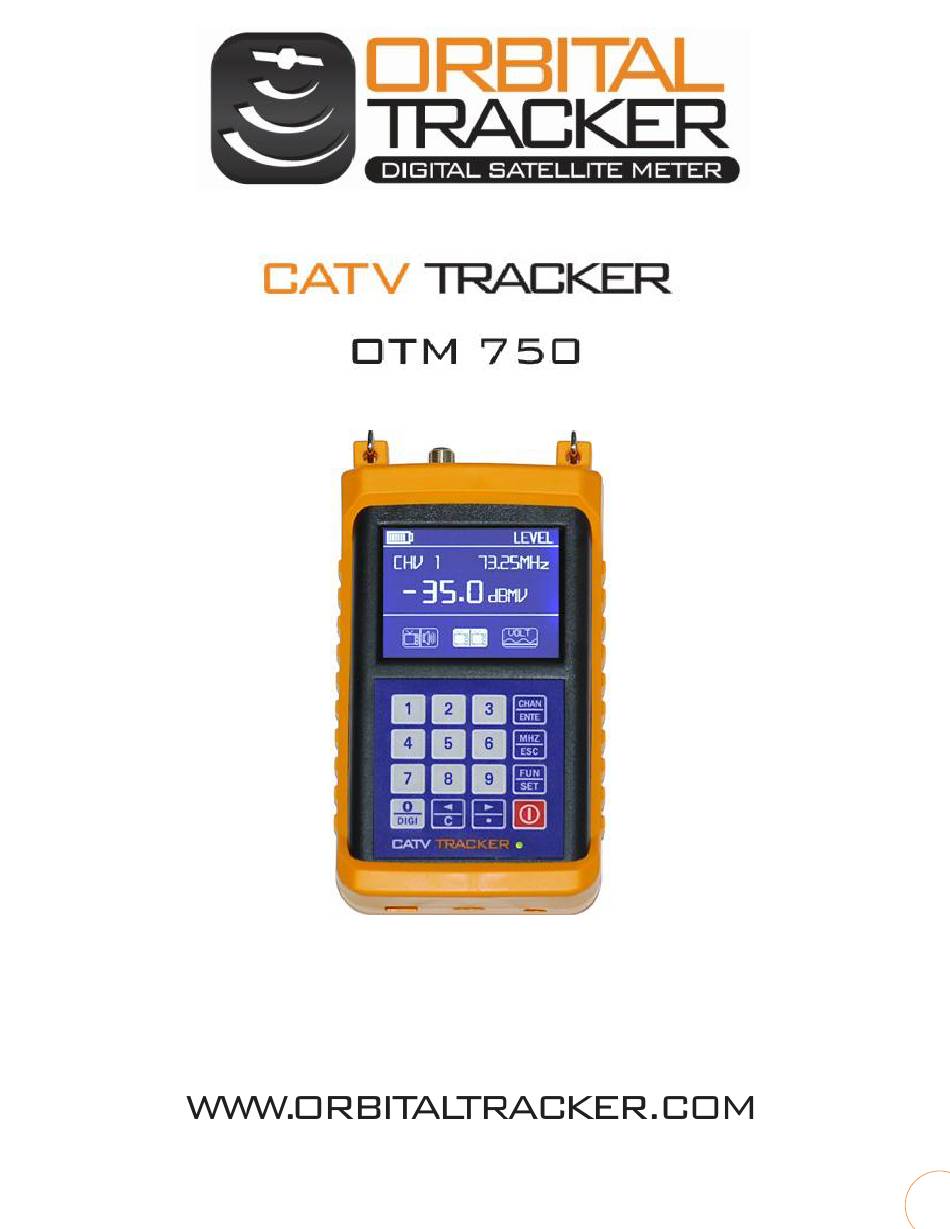

- Page 1 Manual...
- Page 2 Technical Specifications Frequency Range: 50~870 MHz. Test Bandwidth: 280 ± 50 KHz CATV TRACKER OTM750 series meters are handheld TV signal level meters designed for CATV Resolution: 50 KHz Installers and Cable management personnel. The Channels: Indian, USA , H.K. OTM750 has a RF signal microcomputer that can easily...
- Page 3 Please read this manual before use: Very Important Please Read: CATV Tracker meters are shipped with the internal battery disconnected. Please remove protective orange cover to access battery compartment located on the back of unit. Connect battery and charge for 4-5 hours for the initial first charge.
- Page 4 Example１：input channel 10 Type in ＜ 1 0 CHAN/ENTER ＞ Example２：input channel 17 Type in ＜ 1 7 CHAN/ENTER ＞ Change the measuring frequency Set the meter to frequency adjustment mode (displaying a LEVEL on the top right corner)，press left and right keys to change the measuring frequency with 50K step forward.
- Page 5 Fig. 2.3 This screen will display the frequency and FI value of image and sound carrier frequency and their D- value. Press MHZ/ESC key back to last measuring menu. Double Channel Measurement Mode: In frequency measuring mode press the FUN/SET key and select the second group icon (Double Channel Measurement) , then press the enter CHAN/ENTER key as shown in Fig.
- Page 6 Press FUN/SET key to choose a channel, you will see an underline under the channel you select and press left and right keys to adjust and set the channel. Press 0 / DIGI key to switch between analog and digital channels, press MHZ/ESC back to last menu. Trunk line Voltage Measurement: In single channel or frequency measuring condition, press key FUN/SET and choose the VOLT icon.
- Page 7 Accessories: Authorized charger: 1 piece RF input connector: double F 2 pieces Meter bag: 1 piece Manual: 1 piece Warranty: The CATV Tracker meter has one year limited warranty. Not Covered Under Warranty (1) Panel, switch and chassis damaged by mechanical external force Impact or any type of moisture or water damage.
- Page 8 Customer Notes :...
