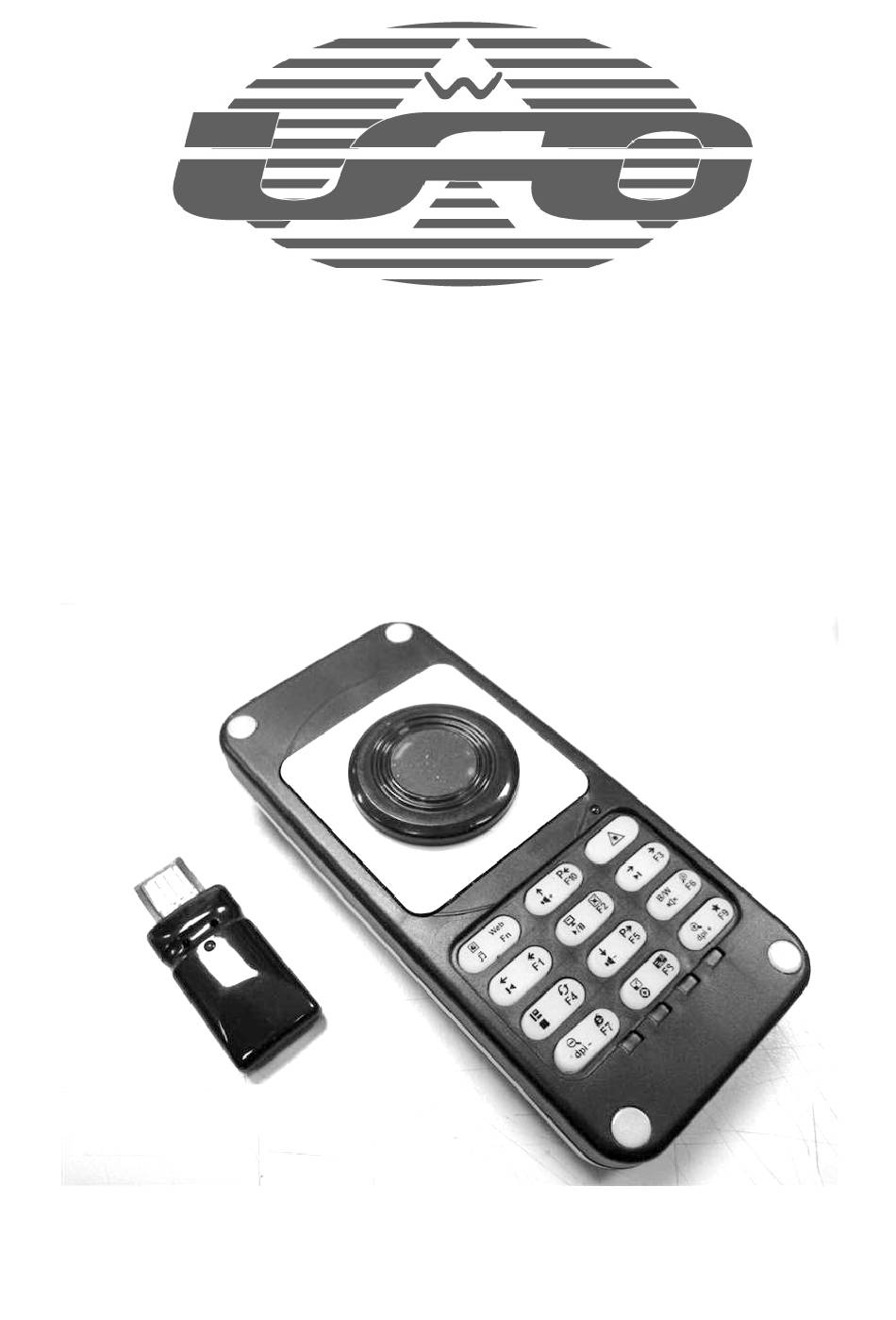

- Page 1 2.4GHz multifunction UFO Presenter Air Mouse User’s Manual AWP305...
- Page 2 Using the UFO presenter air mouse is as simple as pressing a button once to immediately start enjoying it in the air, besides, the operation method is similar to an ordinary mouse so its operation will be very simple to learn.
- Page 3 2.Applications As a wireless pointer for Power Point presentations. As a common wireless mouse when used on a desktop. As an “in-air” handy wireless mouse with no surface. As a wireless PC remote control when it is used with a LCD TV connected to a PC.
-
Page 4: Package Contents
4.Package contents Wireless mouse ..1 pc USB adaptor ..1 pc Sliding plate ..1 pc USB to Mini-USB cable ..1 pc User manual . -
Page 5: Back View
Back view： Battery low LED indicator Sliding surface Mode LED indicator Function key USB adaptor LED indicator USB connector Pairing button Sliding plate... -
Page 6: Installation
7. Installation 1. Open the cover of the storage space and take out the the USB adaptor. 2. Plug the USB adaptor to an USB port in a desktop PC or notebook. Note : If the USB adaptor is used for a long period of time in the desktop PC, it is suggested to plug it into the USB port at the PC’s backside) 3. -
Page 7: Operation Mode
8. Operating instructions 8-1 Operation mode A. Desktop operation mode (factory default setting) First make sure the blue LED indicator light of the scroll wheel is on Desktop operation mode (indicating mouse is on ). If the blue LED goes out, keep pressing left or right button and the scrolling wheel simultaneously for 3 seconds until the blue LED light is on, which indicates the cursor-control operation is switched to desktop operation mode (refer to picture below), then operate it as an ordinary mouse. - Page 8 (b) It is suggested as shown in the picture (a) to use your hand to hold the mouse while your thumb should slightly press the upper cover of the sliding plate, at this time your index finger should touch the right button and the middle finger touch the left button (left-handed should use the index finger and middle finger to separately touch left and right button).
- Page 9 Hint: in-air mode, slightly press the sliding plate While moving the sliding plate, you should put your thumb flatly and just lightly press the sliding plate. Note: when over exerting or over bending your thumb it may cause hand pain. For most users, it is suggested to set the cursor speed to low speed (factory default setting).
- Page 10 Mode LED indicator presentation Website/e-mail Mode Key Special presentation special-function function multimedia multimedia Website / e-mail Each of the shortcut keys operation is described as follows: A. Presentation mode for POWER POINT and PDF files : Click MODE key until the below LED light switches to the presentation mode (see the illustration below).
- Page 11 Symbols Key Description Operating Method numbers switch Power Point switch to black/white image black/white image Zoom out click once to zoom out PDF image (only for PDF file) click image once to go to full full screen screen mode, click once again to (only for PDF file) go back to windows image Zoom in...
-
Page 12: Multimedia Mode
Symbols Key Description Operating Method numbers Shift to the right Click once to shift to the right Refresh Click once to refresh a web page Click once to go to a fully-loaded To next page next page Click once to open the built-in system searching program, you can File search search either a web page or files in... - Page 13 Multimedia mode (lower left corner) Symbols Key Description Operating Method numbers Click once to increase audio volume by Volume up one level, if pressed continuously the level will increase likewise. Click once to go back to the previous Previous song song While playing a song, click once to Play / pause...
-
Page 14: Laser Pointer
D. Special function key mode: Click MODE key until the lower right corner LED light switches to the special function key mode (see the illustration below). The locations, symbols and definitions of the eight multimedia keys are shown in the following figure and table: Special function mode Fn mode (lower right corner) The functions of the 10 special function keys are identical to F1~F10 keys in a... -
Page 15: Other Function Keys
F. Other function keys Keys Symbols Key Description Operating Method Left or Switch between Simultaneously press the left Right and desktop / In-air or right button and the scrolling mode scrolling wheel for 3 wheel seconds, when the blue LED button lights up means desktop operation mode, when it goes... - Page 16 Recharging mouse: The UFO multi-function wireless mouse is built in with rechargeable Li-battery and can be recharged through an USB port from a PC or laptop. A. Low battery warning: When the mouse battery is low, the LED indicator at the upper right corner of key pad will turn red and blink, this indicates that you need to plug the USB cable to a computer to be recharged.
- Page 17 G. Mouse pairing: The mouse has been already paired before leaving the factory, unless there is second similar mouse using the same ID code and causing interference with each other causing not to work, otherwise there is no need to do the pairing again.
-
Page 18: Troubleshooting
4 picture 5 B. Mouse Operation Method when controlling different computer The UFO mouse can be paired with many USB adaptors, and can save up to 10 settings. When you need to run several computers, you can use different USB adaptors and connect each USB adaptor to each computer and then do the pairing one by one. -
Page 19: Software Compatibility
10. Software compatibility Web-browsing Open Change Open Switch to full Software\function Scroll page software page my favorites screen Internet Explorer Mozilla Firefox Google Chrome Apple Safari Opera Multimedia player Increase / Open Play/ Previous Software\function Stop Next song Decrease software Pause song volume... -
Page 21: Fcc Notices
FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
