Summary of Contents for Koba Vision EasyReader Standard

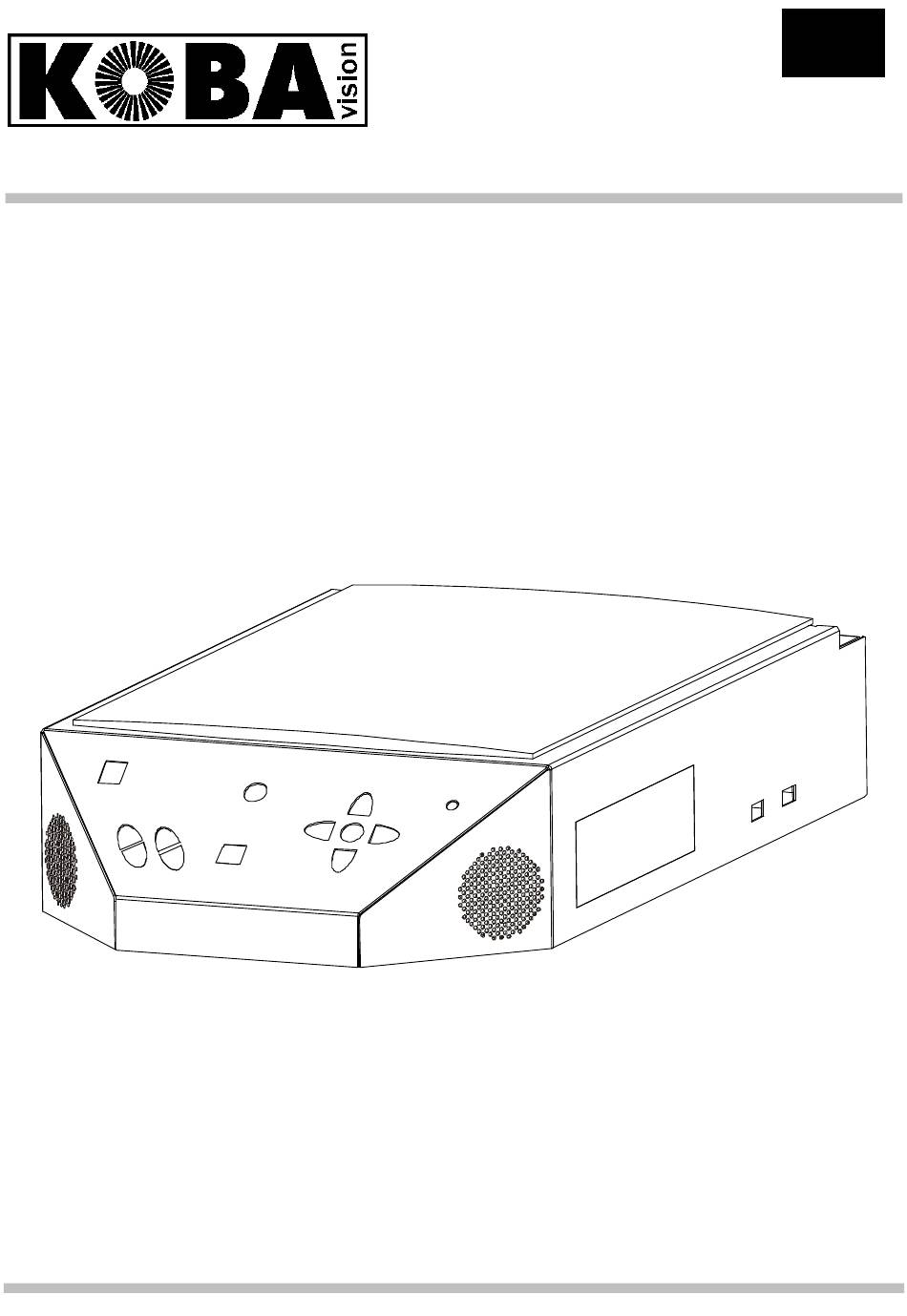

- Page 1 KOBA VISION EasyReader EasyReader Standard EasyReader Daisy Manual...
- Page 2 This manual describes the following KOBA Vision EasyReader versions: EasyReader Standard 4.0.45 EasyReader Daisy 4.0.45 Slight differences are possible if another version is used. A recent manual can be downloaded from the KOBA Vision website, http://www.kobavision.be...
- Page 3 E A S Y R E A D E R Manual KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel: +32 11 51 70 80 • Fax +32 11 51 70 81 info@kobavision.be http://www.kobavision.be...
-
Page 4: Table Of Contents
Index Index ..........................2 Introduction ........................4 EasyReader parts ..........................4 Reading device KOBA Vision EasyREader ..................4 Power cord ............................4 What would you need? .......................... 4 Save keyboard ..........................4 Headphone ............................5 Safety and maintenance instructions ................6 Safety instructions .......................... - Page 5 Empty page ............................ 13 Photos ............................13 Layout ............................. 13 Troubleshooting ......................14 Warranty ........................15 Express warranty ..........................15 Warranty provisions ..........................15 Service fulfillment ..........................15 Data chart ........................16 EasyReader Standard ......................... 16 EasyReader Daisy ..........................16...
-
Page 6: Introduction
EasyReader parts You will need the following things to be able to use the EasyReader: Reading device KOBA Vision EasyREader EasyReader Standard Eas yReader Daisy Power cord You need a power cord to feed the device. -
Page 7: Headphone
Save to hard disk You will need no external parts in order to save to the hard disk. Saving to an MP3 player or USB flash drive In order to save to an MP3 player or a USB flash drive, you need an external MP3 player or an external USB flash drive with USB connector. -
Page 8: Safety And Maintenance Instructions
Never attempt to repai r the de vice by yo urself. It is dan gerous to remove prot ective covers which are there to prevent electric shock. Yo u m ust conta ct KOBA Vision or your dealer in case of defects. -
Page 9: First-Time Use
Chapter First-time use You need to go through the following steps to use the reading device for the first time: Connect cables Check whether the device works Connecting cables Connect the power cord at t he back of t he EasyReader. Then connect the reading device to the mains supply. -
Page 10: Controls
Chapter Controls After having successfully connected the reading device in the previous chapter, we will now go into the controls and the operation of the reading device. Switching on/off Switching o n and off is done by means of the on/off button 1. - Page 11 EasyReader Standard. EasyReader Daisy. KOBA Vision thanks you for the trust placed in the EasyReader reading device. You have after all bought a high-tech and modern device which you will be able to use for a long time. The device owes its success to its simple controls. Hence the name EasyReader.
- Page 12 Page 2 of 4. The different reading modes are: Spelling: The device will navigate letter by letter. You will hear nothing for an interspace between two words. Word by word: The device will navigate word by word. A word is a chain of letters. Sentence by sentence: The device will navigate sentence by sentence.
- Page 13 • The design of the connectors allows for them to be used in one way exclusively. Never force a connector. • Never attempt to repair the device by yourself. You must contact KOBA Vision or your dealer in case of defects.
- Page 14 • Treat your device with care and you will enjoy it for many years to come. Contact KOBA Vision or your dealer for repairs or service. Write down product name, serial number, purchase date, invoice number and any error messages or particular problem aspects.
-
Page 15: Easyreader Control Panel
EasyReader control panel Volume Turn up volume: Briefly press button 2. Turn down volume: Briefly press button 3. When the device is paused, yo u will hear the help message „louder“ or „quieter“ . When the device is reading out, the volume will increase or decrease. The volume of the device cannot be t urned off. -
Page 16: Change Language Or Voice
Navigation mode The navigation mode is selected by pressing button 9. The following modes are available: Read page by page Read tables Read line by line Read sentence by sentence Read word by word Spelling Forward Depending on the navigation mode, button 11 is used for navigating forward. Back Depending on the navigation mode, button 10 is used for navigating back. -
Page 17: Switching Between The Reader And The Daisy Player
Switching between the reader and the Daisy player By means of button 7, the reading device will switch between reading scanned texts and playing CDs. When the button is pressed in, the reading device will automatically check whether or not a CD is loaded. -
Page 18: Control Panel - Save Keyboard (Option)
Control panel – Save keyboard (option) When the e xtra keyboard has been provided with the reading device, you can sa ve texts o n the reading device itself, on an MP3 player or a USB flash drive. Save to Use slide switch 4 to select storage medium. -
Page 19: Groups
Groups Higher group: Press button 1. Lower group: Press button 2. Positions The buttons 3 indicate the positions. Listening to saved texts Briefly press the position (button 3) to open the text. The device will ask to confirm. Confirm by pressing the same button once more. Cancel by pressing any other button. Saving texts Keep the position (button 3) where you want to save the text pressed in. -
Page 20: Troubleshooting
Chapter Troubleshooting Below is a l ist of problems th at may occu r with yo ur read ing devi ce. Consult t he l ist fi rst before contacting KOBA Vision or your dealer. Symptom Possible causes What to do The reading device •... -
Page 21: Warranty
2. Consequential loss is under no circumstances covered by the warranty. KOBA Vision bv ba w ill n either assume an y liabi lity w hatsoever n or accept any possibil ity of liability ex cept f or the warranty prov isions ex pressedly st ated abov e. This limit ation t o th e liability does n ot imply a breach of th e customer’s legal consumer rights or his or her rights... -
Page 22: Data Chart
Chapter Data chart EasyReader Standard KOBA Vision EasyReader Standard Type: Audio mini-jack, 2x USB, mains supply Inputs: 100VAC-240VAC Power supply: 6A/3A 60Hz/50Hz Measurements: 135 x 275 x 470 mm Height X Width X Depth Weight 16.5 Lbs Warranty: 2 year... - Page 23 Press briefly: Start/pause Press long: Repeat Navigation modes Back Forward Headphone jack 2008 KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel +32 11 51 70 80 • Fax +32 11 51 70 81 info@kobavision.be http://www.kobavision.be...
- Page 24 Sample text: Snow White and the Seven Dwarfs Once upon a time in the middle of winter, when the flakes of snow were falling like feathers from the sky, a queen sat at a window sewing, and the frame of the window was made of black ebony.
