MAINTENANCE:
Periodically clean residue off Tension Roller C with a slightly damp cloth in
order to maintain friction between the Roller and the material being rewound.
IMPORTANT INFORMATION:
•
This product is a label rewinder. It is only to be used to rewind or unwind labels of the
recommended dimensions and weight in an indoor, dry environment.
•
The machine has to be unplugged before any manipulation.
•
The machine is to be used on a flat surface, if the surface is not flat, it is to be fixed using
the holes in the base plate.
•
Do not leave the power cable in a passageway.
•
The ambient light of the working area needs to be sufficient to avoid any risk.
•
The rewinder can be used in ambient temperatures of +2°C to 40°C.
•
Connection of the machine to the power source must respect local and European
legislations.
© LABELMATE – User_CAT-3-CE – 05/17 – Original user manual.

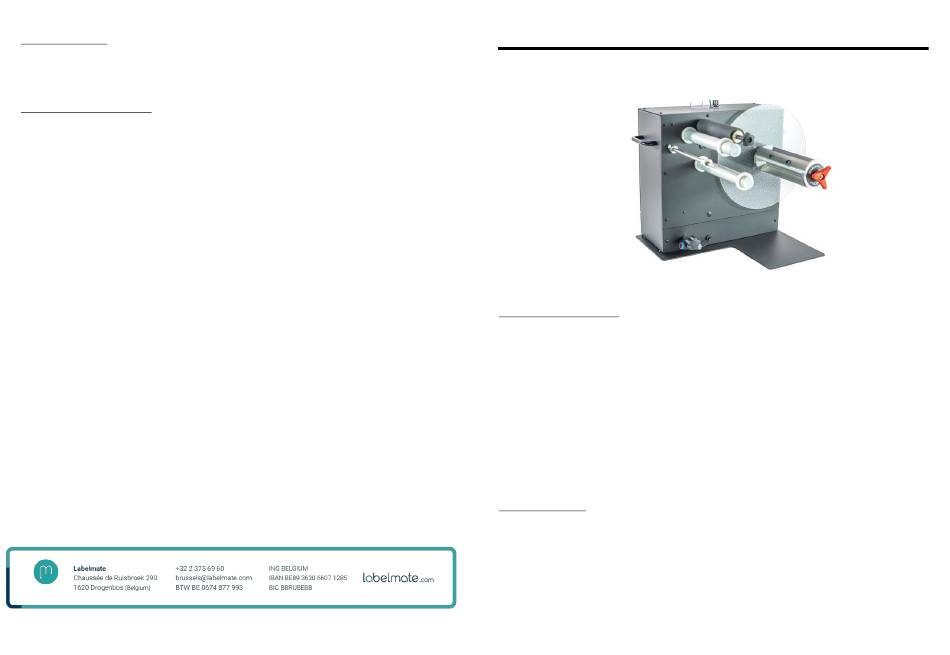

ZCAT-3
Zero Tension Loop Controlled Label Rewinder
Remove all parts from the shipping container and verify contents.
PACKAGE CONTENTS:
•
User Manual (this document)
•
Allen Wrench
•
ZCAT-3 Drive Unit
•
Power Supply Module
•
LABELMATE "Quick-Chuck" ™ Quick-Locking Core Chuck
•
12" Plastic Flange Plate
•
Tensioning Roller
Loop Sensor
•
•
(Optional PC-1 Counter purchased separately)
Retain the Shipping Container and Packaging for Storage and Transport
SPECIFICATIONS:
Weight of the machine:
16.8Kg.
Max. Label Roll Weight:
12Kg.
Max. Label Roll Diam:
300mm
Start/Stop:
ON/OFF Power Switch
Power Supply:
Input: 120-220VAC in
Output: 24VDC
.
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●
