Installation and Operating Instructions
Suspension System
SYSPEND 180-MAX
Component pictograms
Narrow Adapter
Flange Coupling
Flange Elbow Coupling
Vertical Panel Coupling
Horizontal Panel Coupling
Elbow
Rev.B
© 2018 Hoffman Enclosures Inc.
Rotatable Elbow
Reduction Elbow
Intermediate joint
Set-Up Joint
Vertical Wall Joint
Horizontal Wall Joint
PH 763 422 2211 • nVent.com/HOFFMAN
Wall Flange
Rotary Base
0800000790 / Stand: 3/ Ausgabedatum: 24.04.2018
P/N 89128258
Seite 1 von 17
0800000790
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for nVent Hoffman SYSPEND 180-MAX
Summary of Contents for nVent Hoffman SYSPEND 180-MAX

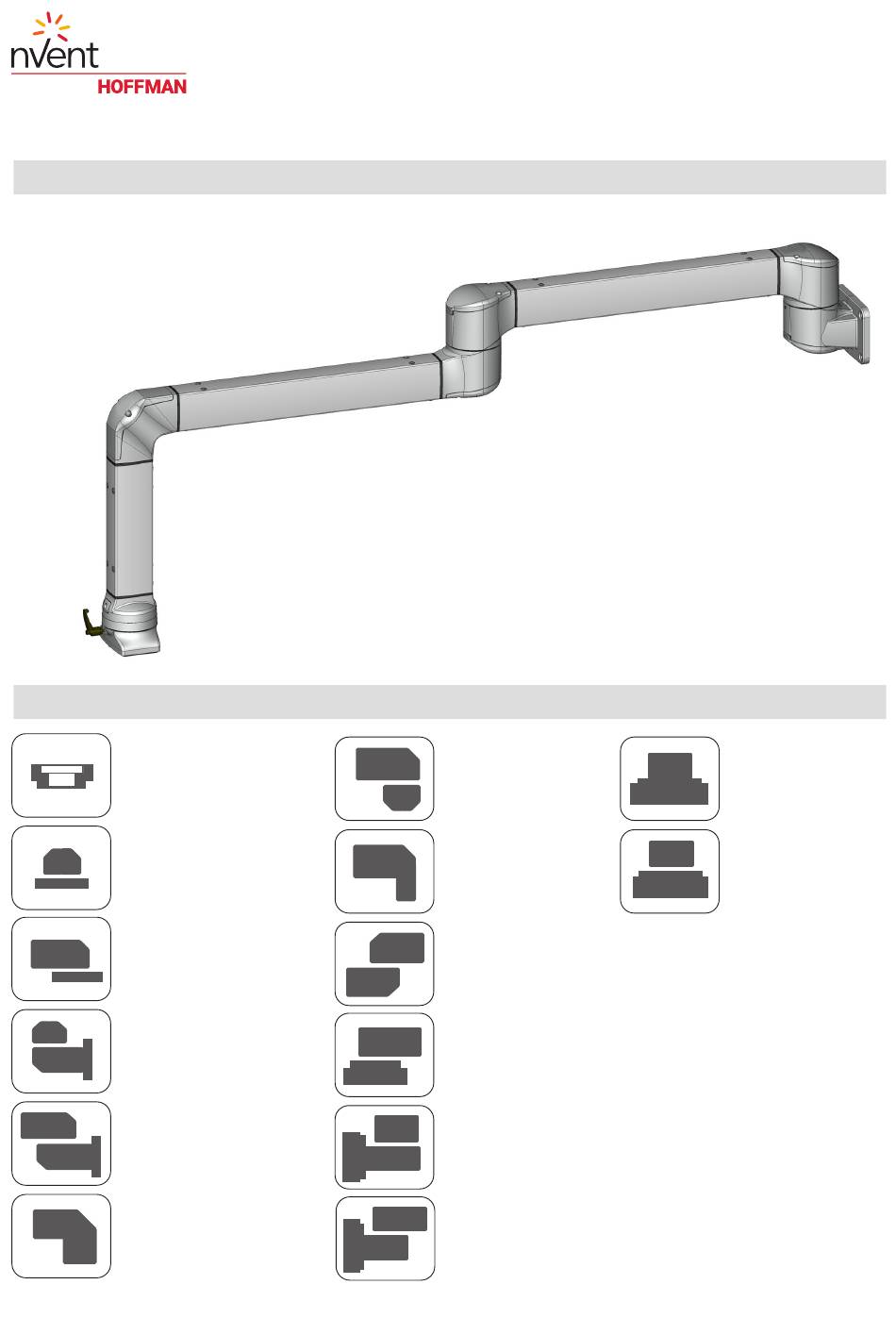

- Page 1 Installation and Operating Instructions Suspension System SYSPEND 180-MAX Component pictograms Narrow Adapter Rotatable Elbow Wall Flange Flange Coupling Reduction Elbow Rotary Base Flange Elbow Coupling Intermediate joint Set-Up Joint Vertical Panel Coupling Vertical Wall Joint Horizontal Panel Coupling Horizontal Wall Joint...
