Summary of Contents for Seiwa SW RP03

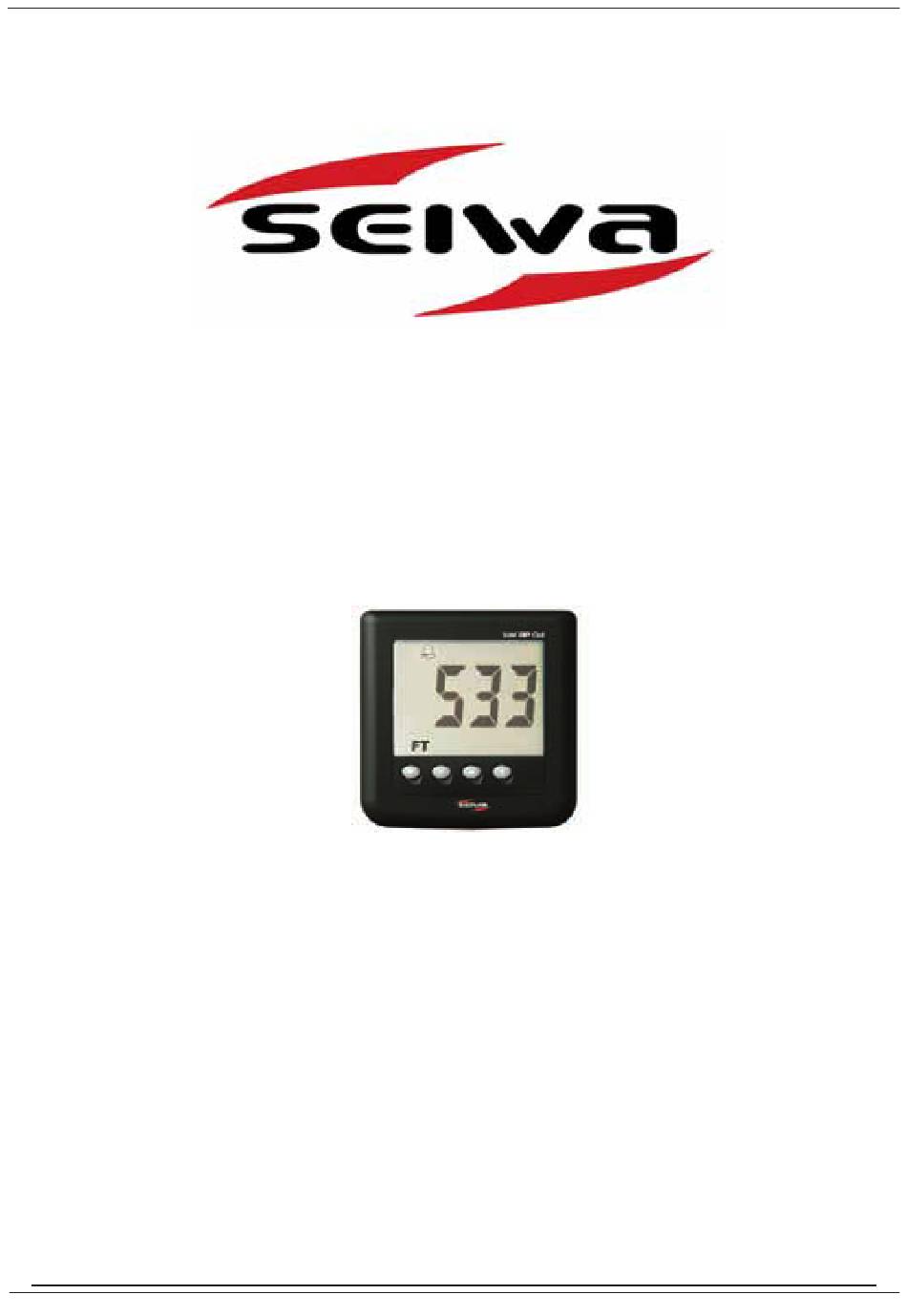

- Page 1 SW RP03 SYSTEM MANUAL...
- Page 2 SW RP03 SYSTEM MANUAL...
-
Page 3: Table Of Contents
SW RP03 SYSTEM MANUAL Table of Contents Introduction ................................3 Specifications ................................4 Installation .................................. 4 Operating ................................. 5 Key Functions ..............................5 Backlinght Intensity ............................5 Selecting the NMEA Sentence to Display ......................5 Adding A Sentence To the List ......................... 5 Deleting A sentence from the list ........................ - Page 4 SW RP03 SYSTEM MANUAL...
-
Page 5: Introduction
Five levels of backlighting can be selected and remotely switched ON/OFF. All settings are automatically saved to non-volatile memory. The SW RP03 works on both 12 and 24 VDC systems and with its large display digits draws only .035 amps and only .075 amps with full backlighting.SS... -
Page 6: Specifications
SW RP03 SYSTEM MANUAL Specifications Power supply: 9.5 to 33 VDC, 35 mA nominal Operating temperature: 32 to 122 F° ( 0 to 50 C°) Size: 4.3” x 4.3. x 3.5. deep (110 x 110 x 89 mm). Display: 4 digit LCD, 5 levels of backlighting. -
Page 7: Key Functions
Selecting a NMEA Sentence to Display Up to 12 sentences can be stored in a list of often viewed sentences. You can select a sentence from the list using keys. SW RP03 comes pre-programmed with the following list: 142 $SDDPT DEPTH RELATIVE TO TRANSDUCER MTRS... -
Page 8: Adding A Sentence To The List
Table 1. Once the desired table entry is displayed, hold down the key for 1/2 second to save the sentence to the list. The SW RP03 will immediately start searching for the new sentence on all four channels. - Page 9 SW RP03 SYSTEM MANUAL 21 $AGBWC BEARING TO WAYPOINT DEGREES TRUE 83 $DFHDT HEADING DEGREES TRUE 22 $AGBWC BEARING TO WAYPOINT DEGREES MAG. 84 $DFWCV WAYPOINT CLOSURE VELOCITY KNOTS 23 $AGBWC DISTANCE NAUTICAL MILES 85 $DFWNC DISTANCE WAYPT TO WAYPT N.MILES...
-
Page 10: Other Seiwa Products
177 $WIMWD WIND DIRECTION DEGREES TRUE 210 TO BE DEFINED Other Seiwa Products: It is possible to connect to SW RP03, all the multifunction plotters Seiwa. - smart GPS antenna. - Black Box Fish Finder plus the trasducer. - All trasducers whith NMEA 0183 exit. - Page 11 SW RP03 SYSTEM MANUAL Note:...
- Page 12 SW RP03 SYSTEM MANUAL SEIWA S.r.l. E-mail: support@seiwadirect.com Website: www.seiwadirect.com...
