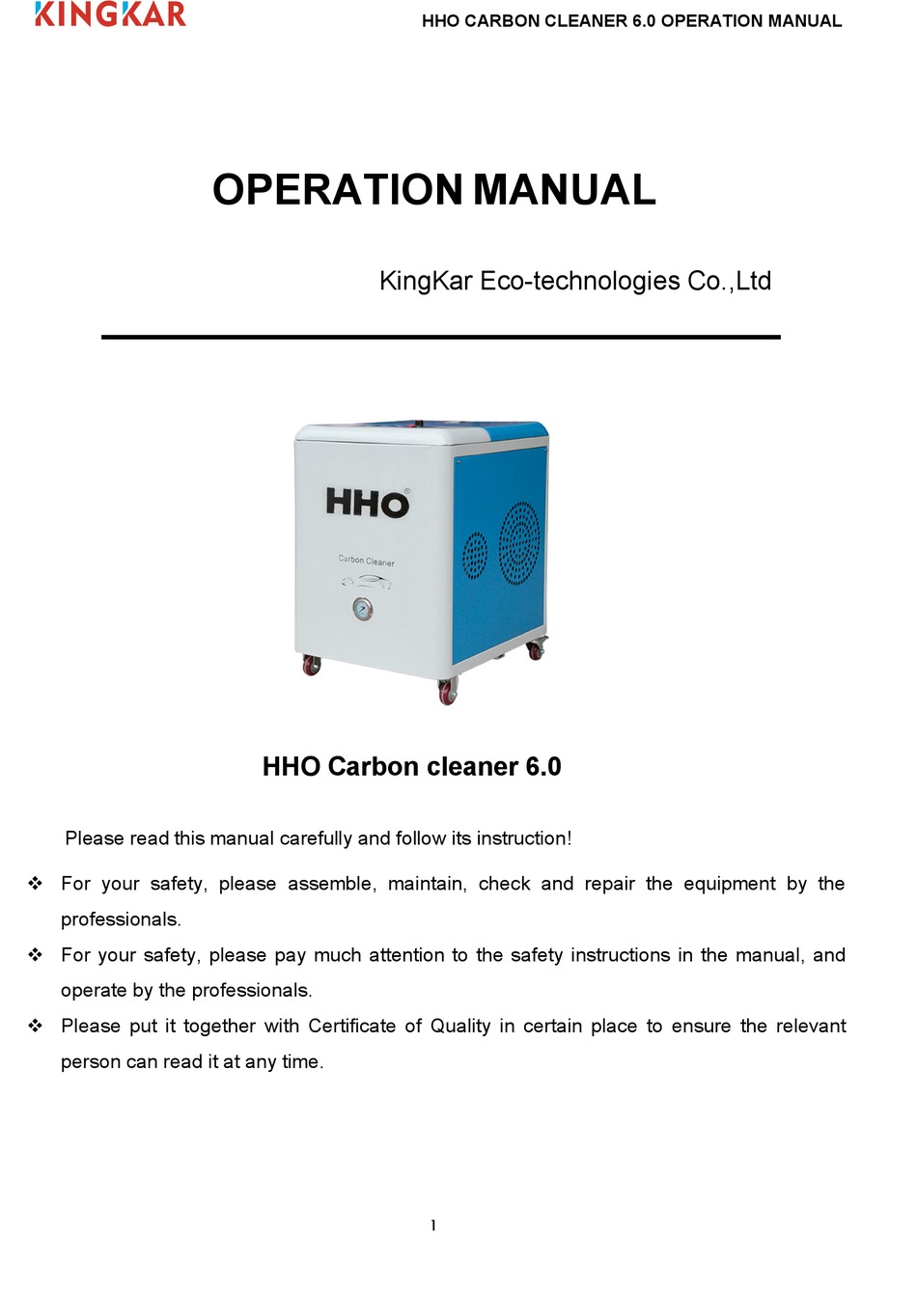

OPERATION MANUAL
HHO Carbon cleaner 6.0
HHO CARBON CLEANER 6.0 OPERATION MANUAL
KingKar Eco-technologies Co.,Ltd
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for KingKar HHO
- Page 1 HHO CARBON CLEANER 6.0 OPERATION MANUAL OPERATION MANUAL KingKar Eco-technologies Co.,Ltd HHO Carbon cleaner 6.0 Please read this manual carefully and follow its instruction! For your safety, please assemble, maintain, check and repair the equipment by the professionals. For your safety, please pay much attention to the safety instructions in the manual, and operate by the professionals.
- Page 2 HHO CARBON CLEANER 6.0 OPERATION MANUAL Special Attention to Operation and Safe Items 1. In the process of carbon cleaning, if engine flame out unexpectedly, please process strictly in accordance with the "Annex III: The operation introduction of engine flame out".
-
Page 3: Table Of Contents
8. Notice ---------------------------------------------------------------------------------------------------17 9. Maintenance of the Machine ----------------------------------------------------------------------17 Annex I: The work fl o w chart of HHO Carbon Cl e aning Machine ----------------------------18 Annex II: Notice of HHO Carbon Cl e aning Machine --------------------------------------------19 Annex III: The operation introduction of engine fl a me-out --------------------------------------20 Annex IV: Instruction of El e ctrolytic Solution’s Making and Adding ---------------------------21... -
Page 4: Preface
The manual is the instruction of use, maintenance and safety precautions for HHO Carbon Cleaner 6.0. Fil e will explain and instruct on how to connect the HHO Carbon Cl e aner 6.0 with vehicles, to remove carbon deposits in the car or truck engine, as well as the operation of the machine's safety precautions and contains the instruction of spare parts, etc. -
Page 5: Installation
2. Installation 2.1 Before installation, please confirm: (1) HHO Carbon Cleaner 6.0 shoul d be install e d on the ground of the smooth, clean and stable ground. (2) The equipment shoul d adopt single phase el e ctric power.Pl e ase make sure that the circuit input voltage is ±10% industrial electricity, and establish appropriate ground wire connection. - Page 6 HHO CARBON CLEANER 6.0 OPERATION MANUAL 24V DC interface over temperature detection input over pressure detection input vibration sensor detection input control panel interface gas production adjustment interface cleaner agent and negative pressure detection input water level probe and anti-backfire probe detection input...
-
Page 7: The Introduction Of Machine Structure
HHO CARBON CLEANER 6.0 OPERATION MANUAL 3.The introduction of machine structure 3.1 Outside structure Pic-3（Front） Pic-4（Back）... - Page 8 HHO CARBON CLEANER 6.0 OPERATION MANUAL Pic-5（Control panel） Pic-6（Circuit Control System Modul e ） 3.2 Inside structure Pic-7（Left-side）...
- Page 9 HHO CARBON CLEANER 6.0 OPERATION MANUAL Pic-8（right-side） Pic-9（top-side）...
- Page 10 HHO CARBON CLEANER 6.0 OPERATION MANUAL 3.3 Control Panel Introduction (1) Front panel introduction Pic-10 HHO carbon cleaner 6.0 control panel as showing in Pic-9, detail description as following. Name Function time display display carbon cleaning time parameter the light on, when the water higher than high level, otherwise...
- Page 11 HHO CARBON CLEANER 6.0 OPERATION MANUAL machine stop working machine start working set ＋ start time setting enter the time setting state check check accumulated working times start start producing gas Over pressure indicator: Once the pressure reaches 0.2mpa, the light on, machine will stop producing gas.
-
Page 12: Checking Before Debugging
HHO CARBON CLEANER 6.0 OPERATION MANUAL 4. Checking before Debugging Please accord the following safety instruction to ensure operation safety after install e d machine. 4.1- The machine should be placed in ventilated and dry place, the surroundings temperature shall not be lower than 0℃, the highest temperature shall not be higher than 40℃, relative humidity shall not be exceed 90%. -
Page 13: The Working Process Of Carbon Cleaning
As shown in the picture below ( take TRITEC for example): Pic-11 6.6- Connect the gas output tube of the HHO Carbon Cl e aning Machine with the vacuum tube of car, and l o ck it tightly. As shown bel o w: Pic-12... - Page 14 HHO CARBON CLEANER 6.0 OPERATION MANUAL 6.7- Start the engine at idling speed. If not, the HHO Carbon Cleaner 6.0 will not work. 6.8- Once again confirmed that the Power Switch of the machine is open, if not, please open 6.9- Press the Start button in the front panel of HHO Carbon Cleaner 6.0.
-
Page 15: Fault Analysis And Elimination
HHO CARBON CLEANER 6.0 OPERATION MANUAL Carbon cleaning will last until the time you set, HHO Carbon Cleaner 6.0 have the countdown function, you can see the remaining the time from the panel. In the process of carbon cleaning, you can look the working state of the machine, if appear water adding tips, please don’t stop the machine immediately, after finishing carbon cleaning process, then... - Page 16 HHO CARBON CLEANER 6.0 OPERATION MANUAL a. Without adding cleaner a.adding cleaner agent agent b.Connect the power line and b. The power line have earthing sign; Replace fault Machine cannot start not connected well, components. Power Switch or AC contactor have damaged.
-
Page 17: Notice
HHO CARBON CLEANER 6.0 OPERATION MANUAL 8. Notice 8.1- The machine power input cable shoul d be reliabl e connection, the machine should be fixed installation, free move should be prohibited. 8.2- The gas pipe connection should be properly sealed, prevent air leakage. -
Page 18: Annex I: The Work Fl O W Chart Of Hho Carbon Cl E Aning Machine
HHO CARBON CLEANER 6.0 OPERATION MANUAL Annex1: The Workflow Chart of HHO Carbon Cleaning Machine 2.connect gas tube 1.add carbon cleaner agent 4. Open the power with car vacuum tube switch 3. Start the car engine at idle speed 6. Start the on button 7. -
Page 19: Annex Ii: Notice Of Hho Carbon Cl E Aning Machine
HHO CARBON CLEANER 6.0 OPERATION MANUAL Annex2: Notice of using HHO Carbon Cleaning Machine 1. The machine adopts sin g le phases 22 0V power supply, if the voltage does not match or lack of phase, the machine cannot work properly. -
Page 20: Annex Iii: The Operation Introduction Of Engine Fl A Me-Out
HHO CARBON CLEANER 6.0 OPERATION MANUAL Annex3: The operation introduction of engine flameout Note: If the engine flameout during work, prohibit re-start the engine. Pl e ase deal with as foll o wing: A. Turn off the Power Switch. B. Remove the machine’s gas tube from car’s vacuum tube. -
Page 21: Annex Iv: Instruction Of El E Ctrolytic Solution's Making And Adding
HHO CARBON CLEANER 6.0 OPERATION MANUAL Annex4: Instruction of El e ctrolytic Solution’s Making and adding 1. Preparation: 1pc Stainless steel container (40kgs volume), 1pc Electronic balance (40kgs), 1pc Stainless steel bucket (15kgs volume), 1pc stainless steel spoons, 1pc concentration hydrometer, KOH(concentration≥95%) - Page 22 HHO CARBON CLEANER 6.0 OPERATION MANUAL Pic-16 This is the filling opening, as show be below: Pic-17 3). Add the el e ctrolyte for the machine(You must wear safety goggl e s and silicone glove when conduct this step). You should prepared these: one big stainl e ss steel funnel, one stainl e ss steel spoon, one stainl e ss steel kettle, a pair of silicone gloves, a set of safety goggles.
- Page 23 HHO CARBON CLEANER 6.0 OPERATION MANUAL Pic-18 Note: a. You must be slowly when add el e ctrolyte. Liquid leakage is prohibited, especially can’t flow to the circuit board. b. You shoul d notice the internal solution when add electrolyte. Stop adding electrolyte when there is only 10cm from the water level to the filling opening.
-
Page 24: Certificate Of Quality & Warranty
HHO CARBON CLEANER 6.0 OPERATION MANUAL Certificate of Quality & Warranty Machine Name HHO Carbon Cl e aner 6.0 Product Number Power Input 220V / Single phases QA Tester Date of Test Date of delivery This Machine tests well! Allow delivery.
