Summary of Contents for Koolance ALH-2000

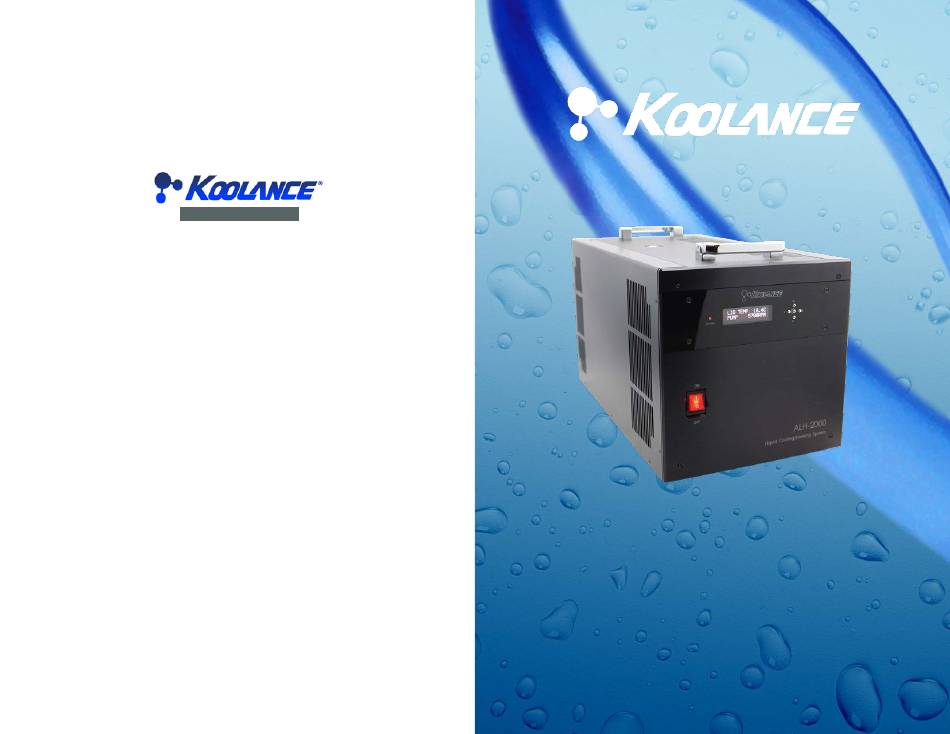

- Page 1 ® Superior Liquid Cooling Systems www.koolance.com ALH-2000 ALH-2000 User’s Manual User’s Manual English v1.0 9001 Printed in Korea...
- Page 2 Koolance Incorporated does not warrant them. TRADEMARKS The Koolance name and logo are trademarks or registered trademarks of Koolance, Inc. Other company and product names used in this publication are for identification purposes only and may be trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
Product Diagram WARNING: The Koolance liquid coolant contains chemicals which may Display Panel be harmful or fatal if swallowed. KEEP THIS AND ALL DANGEROUS Reservoir CHEMICALS OUT OF THE REACH OF CHILDREN. Please refer to Fill Port the coolant MSDS available on our website: www.koolance.com... -
Page 4: Positioning The System
Do not power-on the unit without sufficient liquid in the reservoir. Dry-running (and thereby damaging the pump) is not covered under the Koolance product warranty. Once all devices (cold plates, fittings, etc.) have been connected with tub- Tube Fittings ing, the system can be filled with coolant. -
Page 5: Display Panel
Display Panel TEMP/FAN SET The Koolance display panel allows control and monitoring of various aspects of Under “TEMP/FAN SET”, you can select the active set-point temperature the the cooling unit. 5 buttons are used, with directional arrows to navigate or change system will attempt to follow, or else operate the fans at a fixed power level. -
Page 6: Alarm Set
RELAY SET LIQ TEMP= 32C Maintain coolant coming from the system at 32°C Terminals are provided for a configurable relay. Wires can be CH1 TEMP= 50C Maintain the first thermocouple at 50°C, if attached connected as normally-open (NO), or normally-closed (NC), labeled CH2 TEMP= -5C Maintain the second thermocouple at -5°C, if attached. -
Page 7: Software Feature
▲ FAN SET : (Field varies) Shows current active set-point or fan power We hope your Koolance system will provide you with years of reliable cooling LIQ TEMP : Shows reservoir liquid temperature performance. To help avoid unnecessary RMA issues, we have prepared this list CH1 TEMP : Shows first external sensor temperature (if connected) of possible operational problems, and their most common solutions. -
Page 8: Limited Warranty
No responsibility is assumed for any special incidental or consequential damages due to a defective Koolance product. In order to obtain warranty service, contact our RMA department for information. The product must be shipped postage prepaid to an authorized Koolance service location.
