Summary of Contents for JUICERNET PINABAR

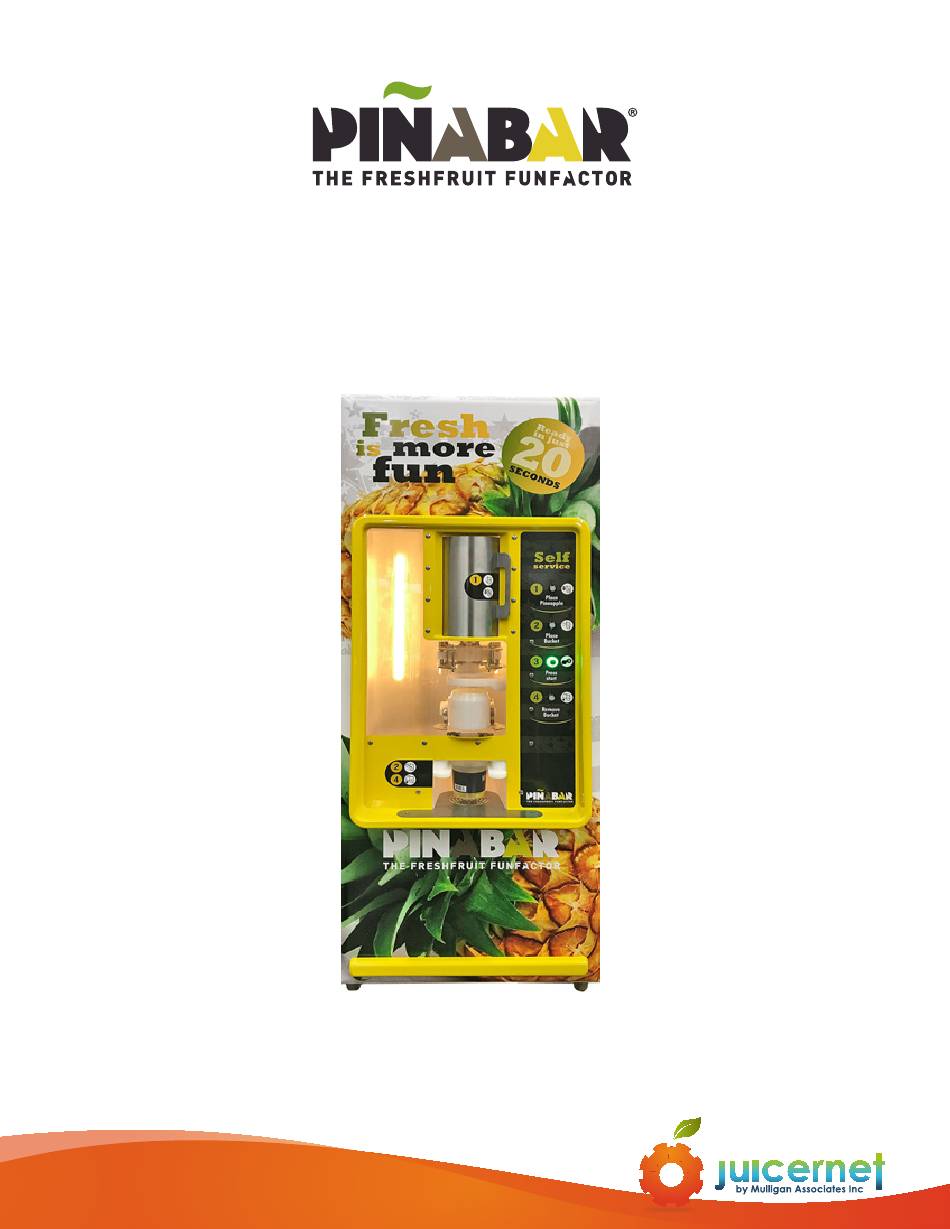

- Page 1 User Manual Self Serve Pineapple Coring Machine Profit while promoting good health. 800-627-2886 • sales@juicernet.com • www.juicernet.com...
-
Page 2: Table Of Contents
DISCLAIMER: The data and recommendations in this User Manual are based on the latest information before print. Information in this User Manual is subject to change without notice and does not represent a commitment on the part of the manufacturer or Juicernet. -
Page 3: Start-Up
PIÑABAR OPERATION The Piñabar is a machine for coring and spearing pineapples. A fully functional system for automatic peeling of a pineapple within a timeframe of 20 seconds. The feed and output of the pineapple is done manually, while the remaining operations are completely automatic. START-UP The main switch of the Piñabar is located behind the front door. -
Page 4: Pineapple Cycle
PINEAPPLE CYCLE When all the conditions are met (starting position, empty waste bin, no running pineapple cycle) the lights flash “Place Pineapple” to indicate that a pineapple can be placed. “Place Bucket” will follow indicating a bucket needs to be placed at the bottom of the machine. ►... -
Page 5: Waste Bin
WASTE BIN After every cycle, the cut pineapple is registered by adding 1 to the counter. This is also the indicator for the number of skins in the waste bin (not visible in the display). If the maximum number of skins has been reached (standard set to 15) the orange light will start to flash. - Page 6 4. Remove the safety pin. 4. safety pin 5. Remove the presser/masher from the machine. 5. presser/masher 6. Twist the pineapple cup/holder from the valve. 6. pineapple cup/holder 7. Remove the safety valves from the machine. 7. safety valves PAGE 4...
-
Page 7: Service & Maintenance
8. Empty the waste bin (see page 3). 9. Clean machine with warm water and soap. 10. Removable parts can also be placed in dishwasher except for the blades. 11. Now place the parts back into the machine in reverse order: a. -
Page 8: Spare Parts
To order call: 1-800-627-2886 Email: sales@juicernet.com PIÑABAR SPARE PARTS DESCRIPTION SIZE PART NUMBER DESCRIPTION SIZE PART NUMBER Safety Valve ..........74333312-01-016 T6S .... 74333312-01-306 Ring Safety Valves ......... 74333312-08-031 T7 ....74333312-01-301 Pineapple Cup/Holder ..T5 ....74333312-01-916 T7S .... 74333312-01-304 T5S ..... -
Page 9: Technical Data
TECHNICAL DATA PRODUCT SPECIFICATIONS: Dimensions: 76”H x 29”W x 32”D Weight: 725 lbs. Color: Fully customizable Blades: Available for pineapple types 5-9; always use the correct blade set for each size. Waste container capacity: 40 lbs. of peel (25 pineapples) Capacity: 5/min Cleaning: We recommend cleaning once per day.
