Summary of Contents for waveline WavePuck

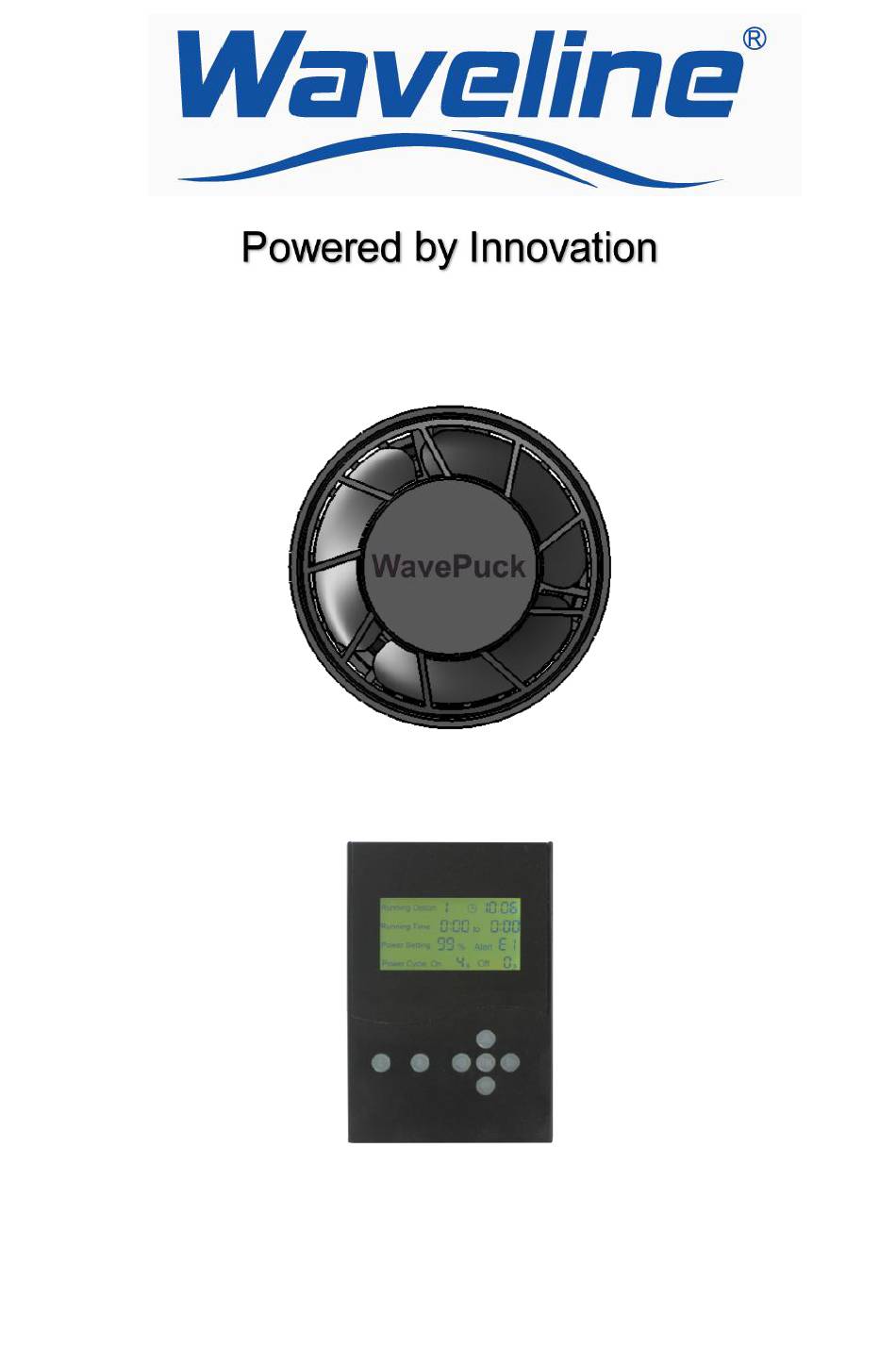

- Page 1 H2O Systems Inc...
- Page 2 , adjust parameter value; Push button to accept selection, the option item will not flash, the parameter is saved Running Option: Option 1: waveline mode powerhead running according to the parameter setting below. Option 2: VDM mode H2O Systems Inc...
- Page 3 APEX which provides right 0-10 DC voltage. The Waveline mapping follows the Apex mapping. Option 3: Feed mode When Feed mode button is pressed the powerhead will shutdown for 30 min and will restart automatically after the time expires .
- Page 4 Installation Pls check packaging list before installation Make sure the electricity specification mate the DC power supply’s nameplate Plumbing ready, then connect controller and DC power supply, steps is below: Switch off main switch of controller, than start to do as below Connect powerhead cable with controller cable, fix the nut Connect output cable of the DC power supply with controller cable Connect AC cable with DC power supply, then plug in socket...
