Summary of Contents for xG Technology xMax BSN200-3S

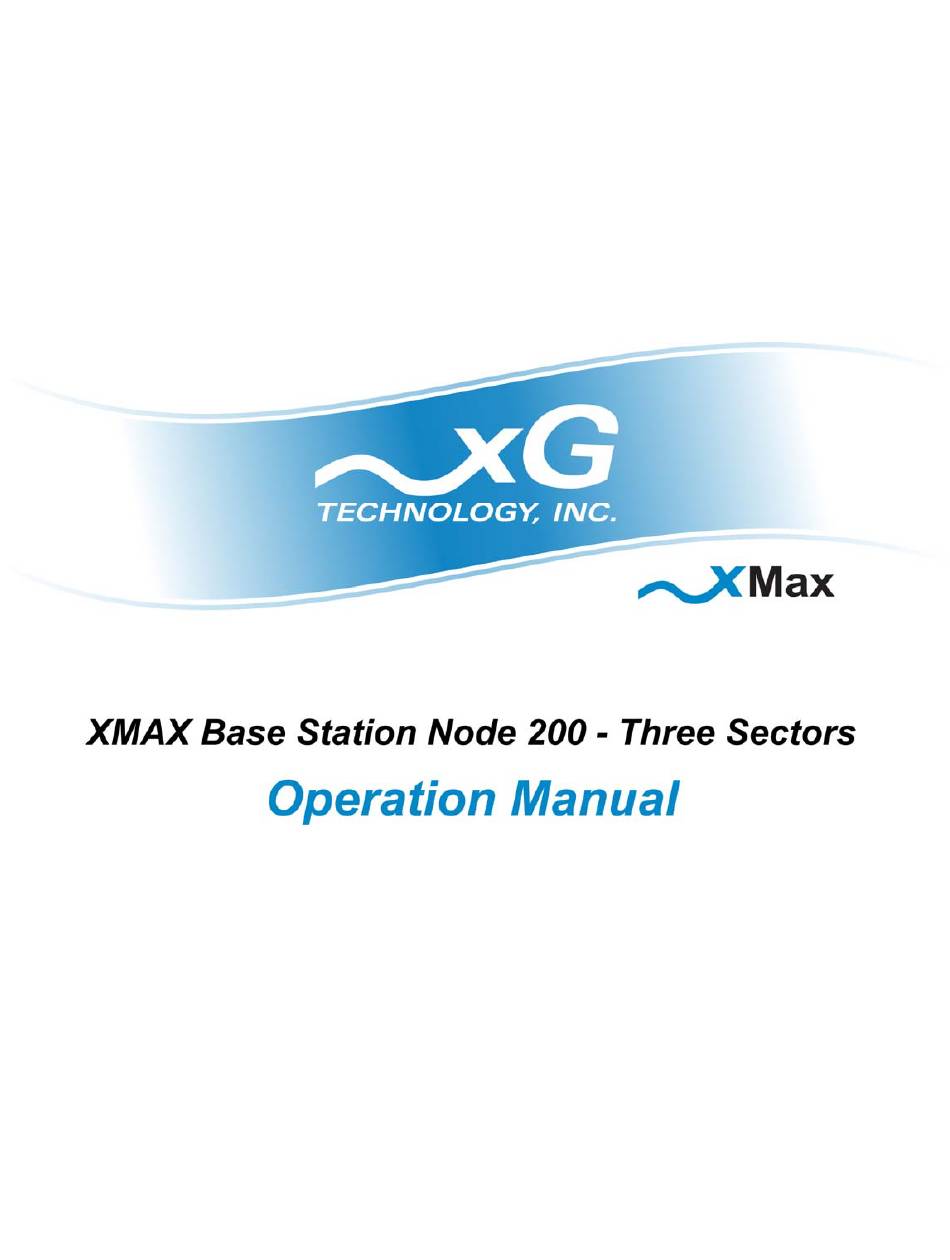

- Page 1 THE INFORMATION IN THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY. ANY UNAUTHORIZED RELEASE OF THIS INFORMATION WITHOUT THE PRIOR WRITTEN CONSENT OF XG TECHNOLOGY, INC. IS PROHIBITED.
-
Page 2: Table Of Contents
Antenna Ports ........................5 LEDs on the Ethernet Port ....................6 Front Panel Status Indicators ..................7 Powering ON the xMax BSN200-3S ................8 Powering OFF the xMax BSN200-3S ................8 Technical Support ......................9 ... -
Page 3: Introduction
900 MHz band. It is used for communicating with xMax Handsets and other CPE, for voice services. This manual provides basic operations instructions for the unit. Attention: where necessary, attention to some precautionary steps is signaled with the attention symbol to the left. xG Technology Proprietary and Confidential Information... -
Page 4: Physical Device
Physical Device The xMax BSN200-3S is housed in a standard rackmount 1U chassis. The dimensions of the device are 19” x 10.19” x 1.75”. The device is shown in the following images: Figure 1: xMax BSN200-3S - Front/Side View Figure 2: xMax BSN200-3S - Rear View... -
Page 5: Ac Power Connector
To turn ON the BSN200, both the rear and front switch have to be in the ON position (This is labeled ‘1’ on the switch). The BSN200 is turned OFF when either of the switches is flipped to OFF position (labeled as’0’ on the switch). xG Technology Proprietary and Confidential Information... -
Page 6: Antenna Ports
BNC connectors installed on the rear of the unit. The cable and antenna acts like a load to the xMax BSN200- 3S. Never turn the unit ON without first installing the cable and antennas. xG Technology Proprietary and Confidential Information... -
Page 7: Leds On The Ethernet Port
• OFF: Ethernet Left Yellow 10/100 100BaseT connection is 10BaseT • Ethernet connection is • OFF: No Ethernet Right Green Ethernet / Link available Connection • Flashing (1/4s on, 1/4s off): traffic on the Ethernet link xG Technology Proprietary and Confidential Information... -
Page 8: Front Panel Status Indicators
Front Panel Status Indicators There are five LEDs installed on the front Panel. These LEDs will turn Green, Yellow or Red depending on the status of the xMax BSN200-3S. The LEDs are shown in the following image: Figure 7: Status Indicator LEDs... -
Page 9: Powering On The Xmax Bsn200-3S
Powering ON the xMax BSN200-3S Follow the following steps to turn on the device: 1- Toggle the front and rear switch in the OFF position. 2- Connect the coaxial cable from the antenna to the antenna ports. 3- Connect the Ethernet cable to the Ethernet Port. -
Page 10: Technical Support
(FCC), Code of Federal Regulations (CFR), Title 47 - Telecommunication, FCC Part 15 Subpart B- Class A Requirements. A copy of the certification can be requested from xG Technology, Inc by submitting your request in writing. Our address is: xG Technology, Inc Attn: Support 7771 W.
