Summary of Contents for Sundrax RadioGate Solid RGS-X-DB-AC

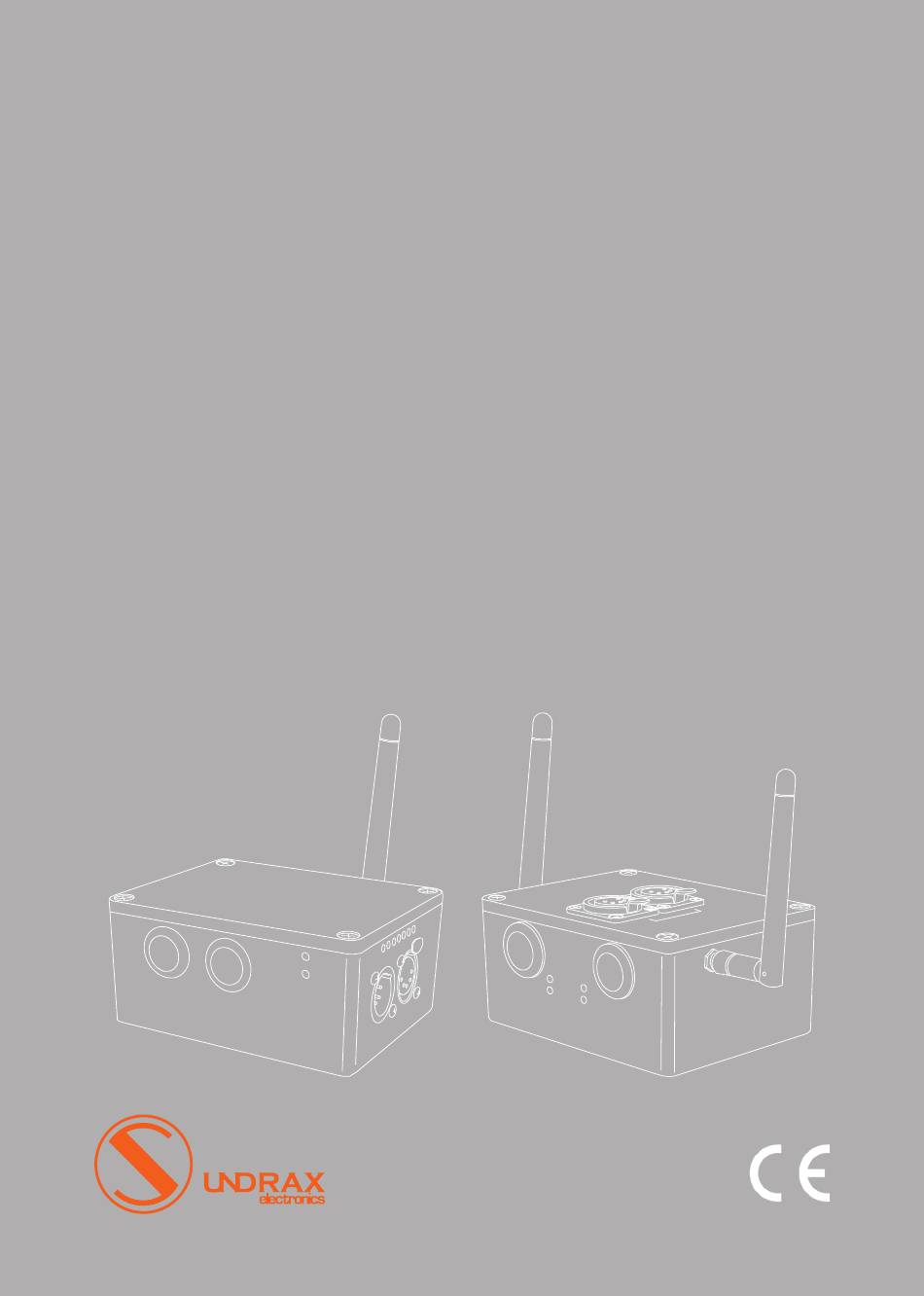

- Page 1 Version 1.03 June 20, 2017 User Manual RadioGate Solid RadioGate Arma RGS-X-DB-AC, RGS-X-2D2B-AC, RGS-X-DB-DC, RGS-X-2D2B-DC, RGA-0-DB-AC, RGA-0-2D2B-AC, RGA-0-DB-DC, RGA-0-2D2B-DC...
-
Page 2: Table Of Contents
Table of contents Visual appearance Specifications Safe operation General information Connection types Installation Device configuring Operation LED indication Troubleshooting Technical maintenance... -
Page 3: Visual Appearance
Visual appearance Pic.1 Main interfaces and indicators of RadioGates Solid DB и Solid 2D2B “SETUP” button 4 “LINK” and “STATUS” indicators “RESET” button DMX connectors Slave’s indicators Antenna Specifications Wireless channels 1 or 2 DMX ports 1 or 2 RF band 2.4 GHz Communication protocol Bluetooth v.2.0... -
Page 4: Safe Operation
Safe operation WARNING! The device uses hazardous voltage AC 230 V In installation, operation, preventive maintenance and repairs of the device, the requirements of the safety rules must be followed. To ensure safe and reliable operation of the devices, please ob- serve the following requirements: •... -
Page 5: Connection Types
Connection types DMX connections XLR 5-pin connectors are used to input/output DMX signals to/ from the device. If necessary, the device can be equipped with XLR three-pin connectors. DMX port has 2 connectors — one M con- nector and one F connector, which allow the port to pass-through the DMX bus. -
Page 6: Device Configuring
Device configuring Lid removal is permitted only when device powered off! All devices (except Arma modification) have the buttons- switch- ing setup mode. Thus, to toggle between the receiver/transmitter, removing the lid is not required. 1. Remove screws and remove the cover lid. 2. - Page 7 4. For dual channel device (2D2B) using section 5 set search/ connection mode: Connection mode Section 5 Each device port can connect only to the corresponding port of the multiport device. Each device port can connect to any port of multi- or singleport device.
-
Page 8: Operation
7. For dual channel devices repeat steps 2-6 to configure sec- ond channel. 8. Transmitter device and configured network is ready to work. Switching device mode (except Arma series): 1. Рower up the device. Depending on current settings saved in non-volatile memory, device starts either in transmitter mode (green LED “LINK”... -
Page 9: Led Indication
3. Pressing “RESET” button disconnects all connected receivers and reboots device. After rebooting transmitter restores connections with all connected receivers. Receiver mode: 1. When power is switched on, receiver waits for request for connection from transmitter. LED “STATUS” (red) is steady on. 2. -
Page 10: Troubleshooting
Receiver mode: “LINK” “STATUS” Status (green) (red) is on is off Normal operation, connected to transmitter. is off is on Normal operation, no connection with transmitter. Configuration mode, connected to transmitter being in the is off blinks slow network configuration mode. is off is off Off, non-functional or failure state. - Page 11 Please send all your warranty-related questions to support@sundrax.com All Sundrax products are covered by a 36 months warranty.
- Page 12 Sundrax Electronics, 6008, First Central 200 2 Lakeside Drive, Park Royal, London NW10 7FQ United Kingdom + 44 (0) 208 991 33 19 office@sundrax.com www.sundrax.com...
