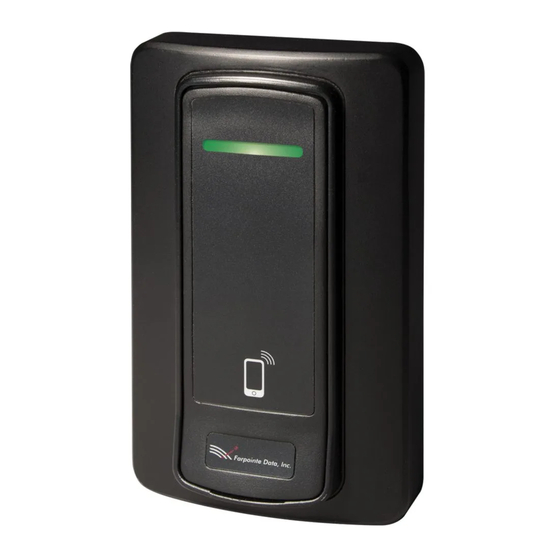

Farpointe Data CONEKT CSR-35P Quick Start Manual

QUICK START GUIDE
CONEKT MOBILE-READY
™
CONTACTLESS SMARTCARD READER
This Quick Start Guide is intended for experienced installing technicians. It is a basic reference to ensure all connections are properly made.
Models include Conekt CSR-35P presentation and CSR-35L long-range readers. For additional information please reference Farpointe Data's
website www.farpointedata.com.
1.0 Introduction
A key component of a physical security electronic access control system, a mobile-ready reader combining BLE and contactless smart card
technologies is based on RFID technology. In operation it is capable of reading data stored on a contactless smartcard credential via high
frequency—or reading data from mobile credential stored in a smartphone's wallet app via BLE technology—and without physical contact, and
then passing the data obtained to the physical access control system. Access control systems typically manage and record the movement of
individuals through a protected area, such as a locked door.
2.0 Mounting Provisions
Each reader may be installed either indoors or outdoors. Mounting options shown in the table below. Use supplied #6 mounting screws, or
equivalent security screws, for installation.
Mullion Mount
Single-gang Wall Mount*
*Plastic or metal.
3.0 Reader Wiring
Wiegand
Conductor Function
Red DC (8-14 VDC)
Black Ground
Green Data 0
White Data 1
Brown Red LED
a
Orange Green LED
b
Yellow Card Present
Blue Beeper
Violet Read Mode
Drain Shield Ground
4.0 Cable Requirements
24 AWG minimum, multi-conductor stranded with an overall foil shield, for example Belden 9535 or similar. Per the SIA's Wiegand specification,
maximum cable length is 500 feet (152 m).
5.0 Output Formats
Wiegand (industry standard 26-bit Wiegand and custom Wiegand formats)
Magnetic Stripe (ABA Track II, clock and data, with card present)
6.0 Grounding
Shield (drain) continuity must run from the reader to the access panel. Shield (drain) and reader ground must be tied together at the access panel
and connect to an earth ground at one point.
7.0 Power
Reader may be powered by the access panel. A linear power supply is recommended for best operation.
CSR-35P CSR-35L
• •
• •
Magstripe
Conductor Function
Red DC (8-14 VDC)
Black Ground
Green Data
White Clock
Brown Red LED
Orange Green LED
Yellow Card Present
Blue Beeper
Violet Read Mode
Drain Shield Ground
NOTES:
Single Line LED: This is the standard operating mode and does not
a
make use of the Orange conductor. The LED is Red when the reader is
idle and flashes when a card is presented. The LED turns Green when
the Brown Conductor is pulled low by the access control panel.
Dual Line LED: This mode makes use of both the Brown and Orange
b
conductors. The Brown conductor controls the Red LED and the Orange
conductor controls the Green LED. LED states are determined by the
access control system option and capability.
