Summary of Contents for Eckman Elite EKRM36
-

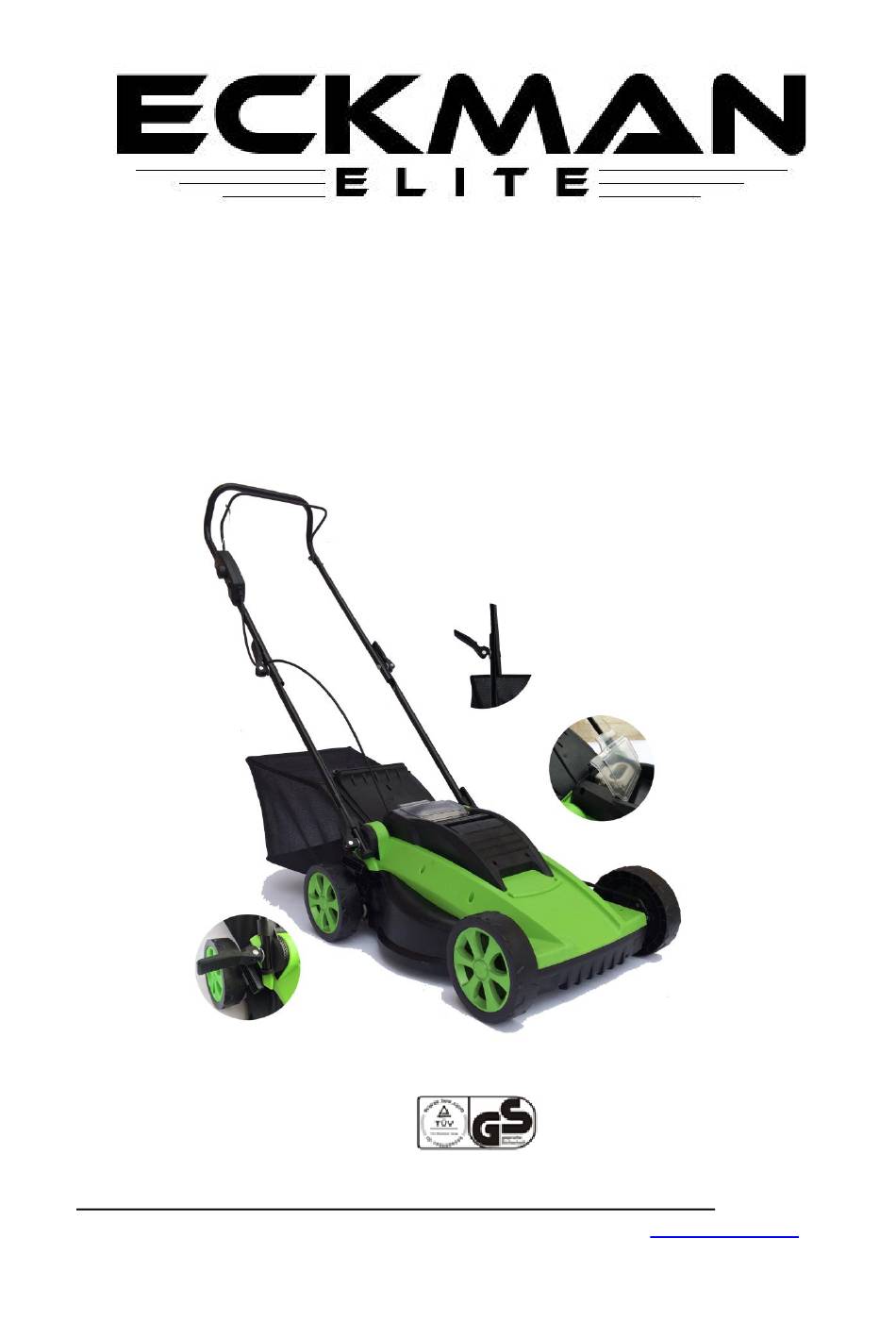

Page 1: Instruction Manual
36 V LI-ION ROTARY LAWN MOWER MODEL EKRM36 INSTRUCTION MANUAL PLEASE READ AND SAVE THE INSTRUCTION MANUAL FOR FUTURE REFERENCE Any questions please call the Eckman helpline on：0844 441 3011 or go to www.eckman.co.uk... - Page 2 Contents Product specification and symbols ......2 Safety Instructions...........3-4 Part Identification............5 Assembling lawn mower..........6-8 Operation ..............9-12 Maintenance Guidelines .........12 Guarantee..............13...
- Page 3 SPECIFICATION Eckman code/Factory code EKRM36/22013 Cutting width 370mm Rated voltage 36V DC Li-Battery 36V-3Ah Sumsung battery Recharge time 3 Hours No-load speed 3200rpm Mowing capacity per charge 200-400m² Plastic grass collector volume Litres Central height adjusting 5levels (25-75mm) Front wheel/Rear wheel 155MM /165mm N.W/G.W...
-
Page 6: Parts Identification
PARTS IDENTIFICATION Start handle Wheels Switch box Front cover Upper handle Motor housing Quick tighten clip Battery cover Lower handle Safety key Grass collection bag Height adjustment lever... - Page 7 This wire been attached in the factory and must be attached during operation.
- Page 8 IF THE STARTER WIRE REQUIRES ATTACHING TO THE STARTER HANDLE – PROCEED AS FOLLOWS:- 1.Using your fingers, gently pull the wire a little in order to aim the wire end connector to the hole of the starter handle ,please see Fig A below: FIG A 2.Insert the wire connector into the hole of the handle ,please see FIG B.
- Page 10 Green light on the charger indicates the battery is fully charged Red light on the charger indicates the battery is...
- Page 13 MAINTENANCE GUIDELINES...
- Page 14 GUARANTEE This product is guaranteed against faulty workmanship for a period of 24 months from date of purchase. It is not guaranteed against misuse, reckless use, abuse, or outside a domestic environment. Should you need to make a warranty claim, please contact your place of purchase for instructions. This is in addition to your statutory rights.
