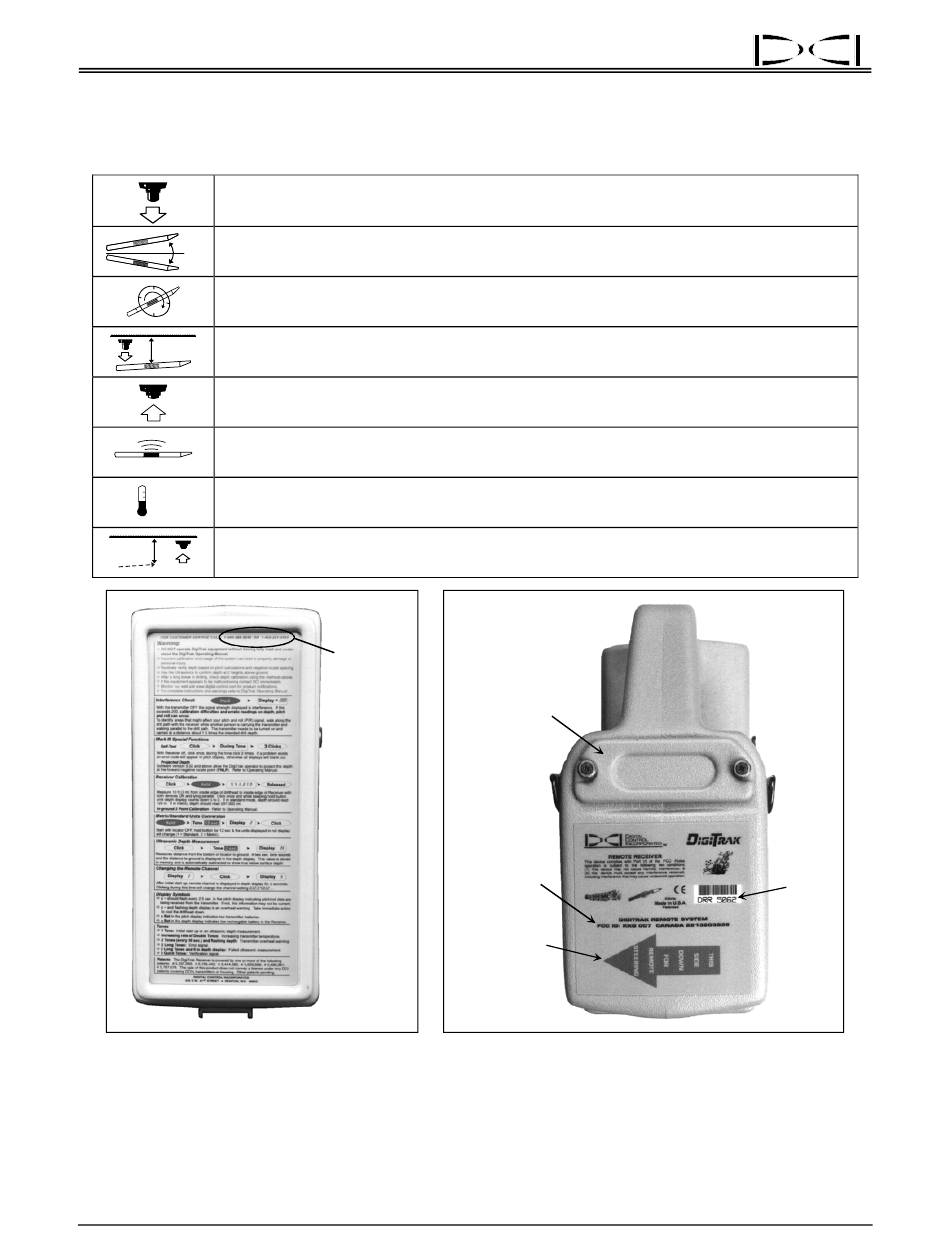

Display Window Icons - DCI DigiTrak Mark III Operator's Manual

Receiver
Trigger down – Trigger is released; display windows show pitch, roll, and
distance/depth of the transmitter.
Pitch – Numbers from 0% to ±100% show the inclination of the transmitter with
+%
respect to horizontal; 100% represents a 45° angle (top left window, trigger down).
- %
12
Roll – Numbers from 1 to 12 show the roll position (1 o'clock to 12 o'clock) of the
9
3
transmitter (top right window, trigger down).
6
x
Depth – The bottom window displays the depth or slant distance of the transmitter
with respect to the surface of the ground when the trigger is down.
Trigger up – Trigger is held in; display windows show signal strength, transmitter
temperature, and predicted depth when operator is at FNLP.
Signal strength – Numbers from 0 to 999 are displayed to show the strength of the
signal from the transmitter (top left window, trigger up).
Transmitter temperature – Temperature of the transmitter in degrees Celsius (top
o
C
right window, trigger up).
x
Predicted depth – The bottom window displays the predicted depth of the
+/ –
FNLP
transmitter at the FNLP when the trigger is up and the receiver is at the FNLP.
DigiTrak Receiver – Front Panel
Showing Condensed Instructions
The front panel of the receiver has condensed instructions for quick field reference and DCI's phone
numbers for troubleshooting assistance. There is also a sticker under the handle for temperature and dis-
tance conversions. The serial number is located on the back panel of the unit below the battery compart-
ment; it is preceded by the letters DR or DRR (for DigiTrak Receiver and DigiTrak Remote Receiver,
6

Display Window Icons

Customer
Service
Phone
Numbers:
Compartment
800-288-3610
and
425-251-0559
Telemetry
Information
Orange Arrow
Indicates
Remote
Capability
Battery
DigiTrak Receiver – Back Side
Showing Identification Information
®
DigiTrak Mark III Operator's Manual
®
Serial
Number
