JPM MotorLite Quick Programming Manual

MotorLite Quick Programming Guide

Programming Beeps

BEEP x 1 & BEEP x 2
Dot move setting
BEEP x 1 & BEEP x 3
The third limit position setting
BEEP x 1 & BEEP x 4
Delete limit
BEEP x 1 & BEEP x 4
Setting UP & DOWN limits
BEEP x 1 & BEEP x 6
Pairing motor to remote
BEEP x 1 & BEEP x 7
Add Emitter
BEEP x 1 & BEEP x 7
Delete emitter
BEEP x 7
Low Battery Signal. To be added in 2016 to new motors

Battery Recharge Options

The motor has a built-in battery. The battery can be recharged using the following options;
1. Model DC264, 240/12 volts plug in power supply charger. The charger light changes
from red to green indicating when the battery is fully charged
2. Model DC683B solar panel. When using a solar panel ensure the solar panel is
directed towards the sun & is installed inside in a water free environment to protect
from the weather.
JPM Blinds, Awnings & Security
FS 10. 08. 05
Acknowledgement of Programming Steps
Revision E. 29th November 2015.

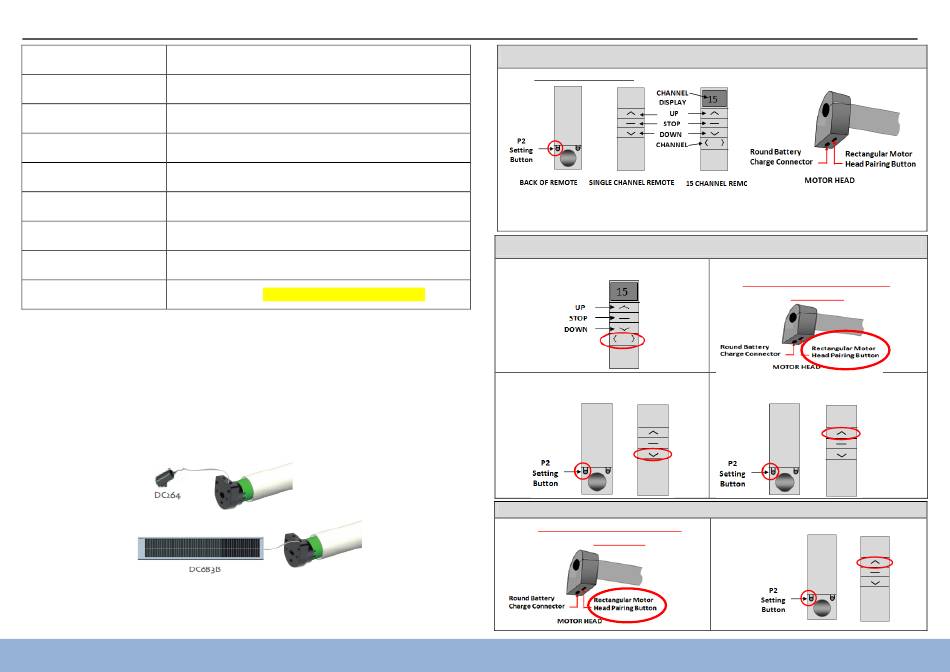

MotorLite Quick Programming Guide
OVERVIEW OF REMOTE BUTTONS & MOTOR BATTERY CHARGE CONNECTOR
Log on www.jpm-speed.com & click video to view online programming guides
 Remove cover on the back of the remote to access the P2 programming button
 NOTE: Maximum 5 second time interval between each programming step otherwise
the motor will drop out of programming mode and loose any steps

STEP 1 - PAIRING MOTOR TO REMOTE

1. SELECT REMOTE CHANNEL
3. CLOCKWISE MOTOR ROTATION
Press P2 x 2 then press DOWN x 1
STEP 2 – CHANGE MOTOR ROTATION CLOCKWISE TO ANTI CLOCKWISE (Select channel)
1)
Press pairing button (bent paper clip) for
~ 3 seconds, until motor jogs & BEEP x 1
JPM Blinds, Awnings & Security
FS 10. 08. 05
2. ACTIVATE MOTOR PAIRING
Press pairing button (bent paper clip) for ~
3 seconds, until motor jogs & BEEP x 1
4. ANTI CLOCKWISE MOTOR ROTATION
Press P2 x 2 then press UP x 1
2) Press P2 x 2 then press UP x 1
Revision E. 29th November 2015
