User's Manual for TPMS-203 Display
The Third Edition
Copyright 2010 reserved
VALOR HONG KONG COMPANY LIMITED reserves the right to change the contents of
this manual at any time and without notice. The information contained in this manual is
proprietary and must not be reproduced without prior written consent from VALOR HONG
KONG COMPANY LIMITED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPMS-203 and is the answer not in the manual?

Questions and answers

Summary of Contents for Valor TPMS-203

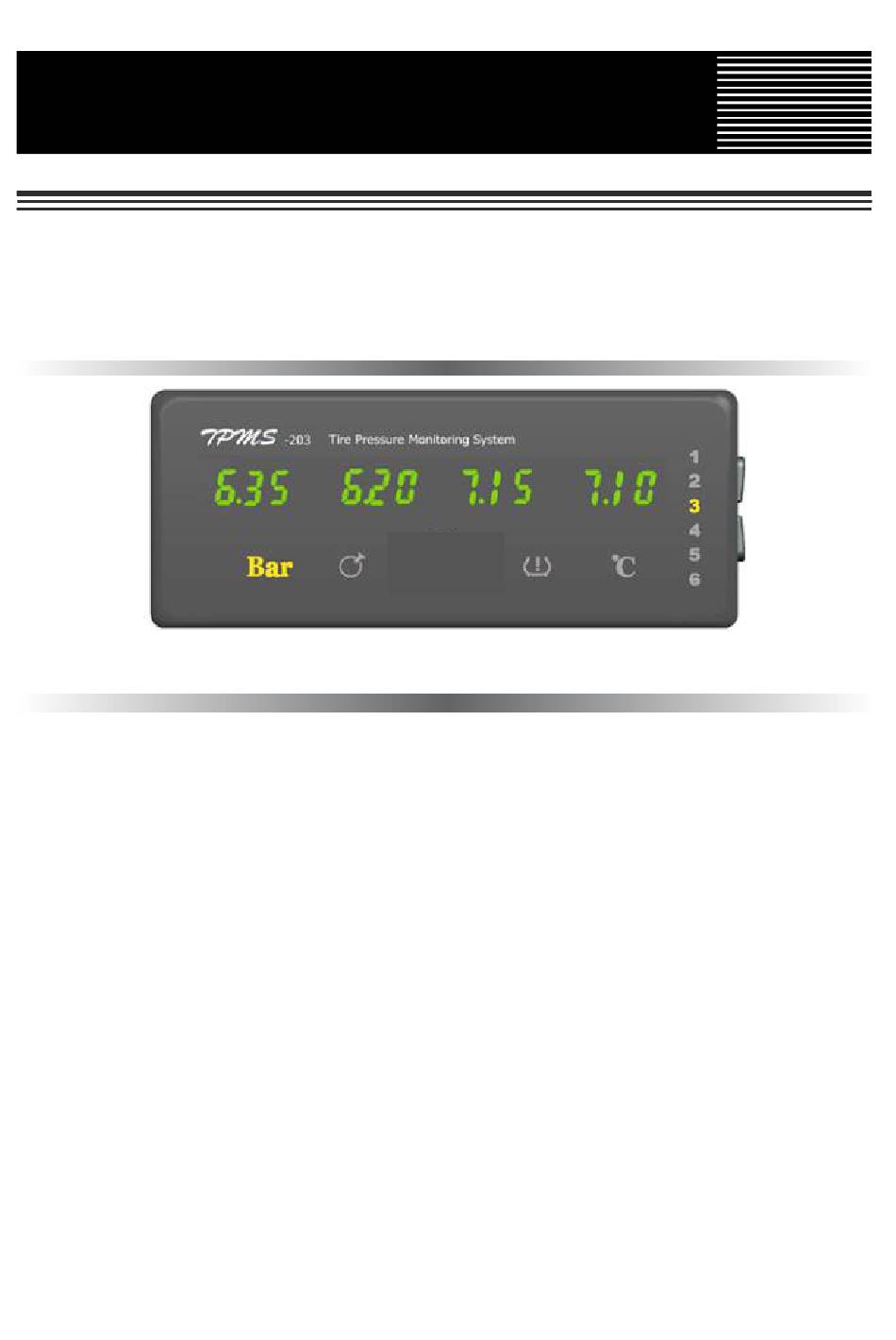

  • Page 1 The Third Edition Copyright 2010 reserved VALOR HONG KONG COMPANY LIMITED reserves the right to change the contents of this manual at any time and without notice. The information contained in this manual is proprietary and must not be reproduced without prior written consent from VALOR HONG...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.1 I .............................. 2 NTEGRATED ISPLAY 1.2 G ..............................3 ETTING TARTED 1.3 C ..........................4 HECKING ONDITIONS 1.4 T ................................4 ETTING 1.5 L ............................5 RESSURE ARNING 1.6 H ............................. 5 RESSURE ARNING 1.7 L ..............................
  • Page 3: Integrated Display

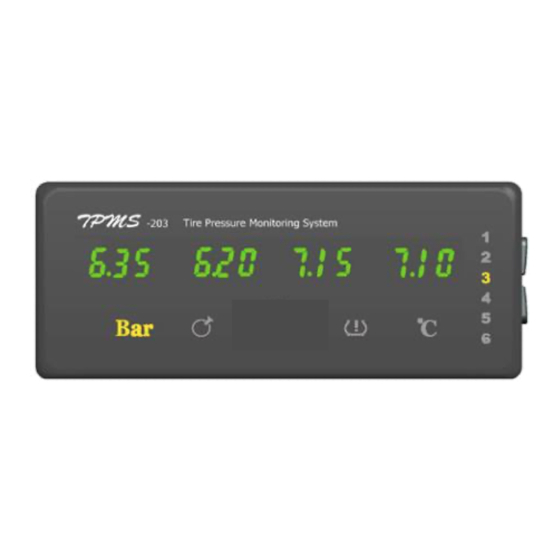

    1.1 Integrated Display The display monitors pressure and temperature information of each tyre in a visual form continuously. It can provide 6 axles up to 24 tyres’ data as well as enabling baseline pressure adjustment to suit different tyres. Controls and Indicators Functions Press it to circularly show the data of each axle...
  • Page 4: Getting Started

    1.2 Getting Started --- For tractor with trailer: turn on the integrated display and trailer ID box, register trailer into integrated display (see 4.1 in this manual) and set the baseline pressure for each axle. 1.2.1 Set the Baseline Pressure of Tractor The baseline pressure has been set in the factory at 6Bar (87PSI) for all wheel positions.
  • Page 5: Checking Tyre Conditions

    1.3 Checking Tyre Conditions --- After data from all transmitters is received, the display will show each axle’s data for 5 seconds and automatically shift to next axle when all tyres are normal. You can also press Axle Switch to look up tyre data quickly. --- The display just circularly shows the axles with abnormality when there are abnormal tyres.
  • Page 6: Low Pressure Warning

    1.4.3 Press the Pressure & Temp. Switch to change the time value. 1.4.4 You must press the Axle Switch for 8 seconds to exit time setting mode, if not, the time setting will not come into effect. A sound “DI” will follow the normally exit. 1.5 Low Pressure Warning When current pressure in the tyre is 20% lower than baseline pressure: ①Display shows the pressure of axle with abnormal tyre;...
  • Page 7: Leakage Warning

    The figure above shows “3B” tyre is over-inflated and ”3A” tyre is under-inflated. The display just shows axle3 until the problems are corrected. 1.7 Leakage Warning If over 0.33 Bar / 4.78PSI pressure loss in 16 seconds: ①Display shows the pressure of axle with abnormal tyre;...
  • Page 8 Rotate the wheels in position “2A” and “2D” Change their corresponding ID modules’ position, restart display and trailer ID box...
  • Page 9: Trouble Shooting

    2.1 Trouble Shooting Problems Possible Reasons Solutions Problems of antenna Check antenna connection Both pressure connection value and The antenna is broken (all temperature value Replace antenna transmitters are well) of all tyres are Use a pair of transmitter & ID module "000"...
  • Page 10: Parameters Of The Products

    show incomprehensible codes Values are not being received at Replace the old ID module with a new The ID number for the a tyre location one came with the new transmitter. transmitter at that location is after a transmitter Restart the system and set baseline not programmed into the was replaced or a pressure.
  • Page 11: European Regulations Announcements

    used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. You can test that if this equipment does cause harmful interference to radio or television reception by turning the equipment off and on. Caution content: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
