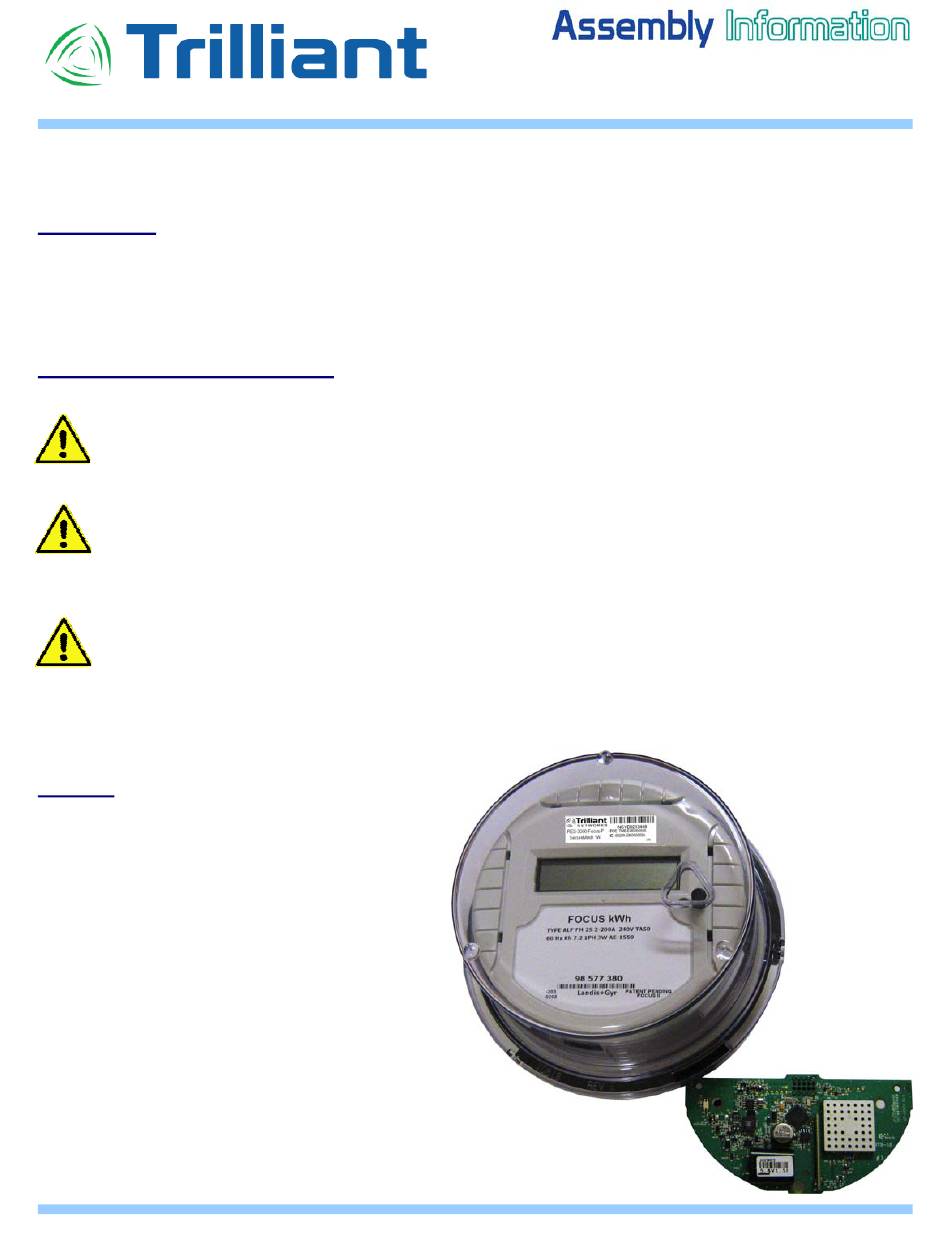

Introduction
This document will help the SecureMesh user to retrofit the product model RES-3000-
Focus/FocusAX in a Landis &Gyr Focus
Safety and Assembly Cautions
- Warning: The meter carries lethal voltages. The meter must be completely
disconnected from any external circuits. Failure to observe this practice can result in
serious injury or death.
- Caution: These devices are electrostatic sensitive. It is best to use a grounded
electrostatic mat and wrist strap to prevent electrostatic discharge.
- Important: It is not necessary to completely separate the top of the meter from the base
of the meter for this retrofit procedure. However, if the two parts are completely
disconnected and separated, it is extremely important to keep each meter component
together for re-assembly. This is due to the top section of the meter containing
calibration "characterization" programming for the CTs in the meter base. If these
components get mixed up with other meter components, current measurement errors will
occur.
Material

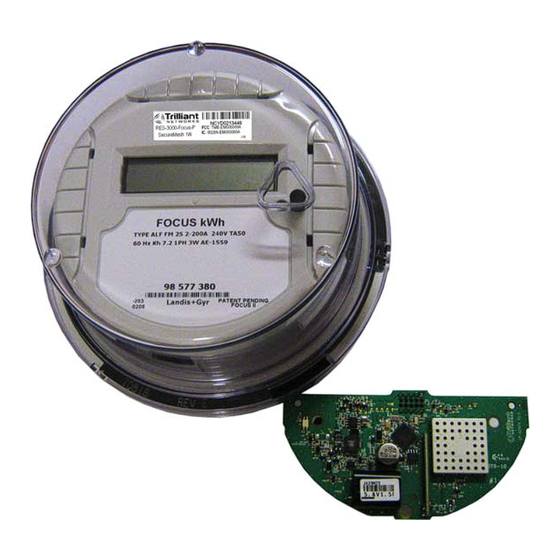

• Focus meter (must be AMR configured)
• Trilliant SecureMesh RES-3000-
Focus/FocusAX .
• Mounting Screws - QTY=3 (provided by
L&G,
ref.Trilliant # HS-0029B & HS-0029C)
•
Self-Retaining Spacers-QTY=3
(provided by L&G,
0033C & HE-0033D)
• Serial # & FCC/IC label (provided by
L&G, ref Trilliant #.: HI-0307A)
PA-0129A Rev. 1.0
SecureMesh retrofit for Focus/FocusAX meter
ref. Trilliant # HE-
®
meter as intended.
June 18, 2010
RES-3000-Focus
RES-3000-FocusAX
Page 1 of 4
Advertisement
Summary of Contents for Trilliant SecureMesh RES-3000- Focus
- Page 1 Material • Focus meter (must be AMR configured) • Trilliant SecureMesh RES-3000- Focus/FocusAX . • Mounting Screws - QTY=3 (provided by L&G, ref.Trilliant # HS-0029B & HS-0029C) • Self-Retaining Spacers-QTY=3 (provided by L&G, ref. Trilliant # HE- 0033C & HE-0033D) •...
- Page 2 Meter TOP portion Post receptacles HE-0033C Short Spacer 2. Snap the 3 plastic spacers into the Trilliant SecureMesh RES-3000- Focus/FocusAX PCB as showm. Be careful to not damage Plastic components and or PCB spacers HE-0033D traces when inserting spacers.
- Page 3 RES-3000-Focus RES-3000-FocusAX 4. Attach the three (3) mounting screws through the SecureMesh PCB into the 3 plastic spacers so that the SecureMesh board is held securely in place. Screw Ref: HS-0029B Screw Ref: HS-0029B Screw Ref: HS-0029C 5. Affix any missing label (Ref.: HI-0307A) on the meter Top Portion, finalize inspection &...
- Page 4 RES-3000-Focus RES-3000-FocusAX SecureMesh Radio Specifications: • IEEE Standard : IEEE 802.15.4 • Power Output : +30 dBm • Radio Sensitivity : -99 dBm • RF Data rate : 250 kbps • Operating Frequency : 2.400-2.483 GHz • Network Topology : Mesh •...
