Summary of Contents for Ecofit GTY110

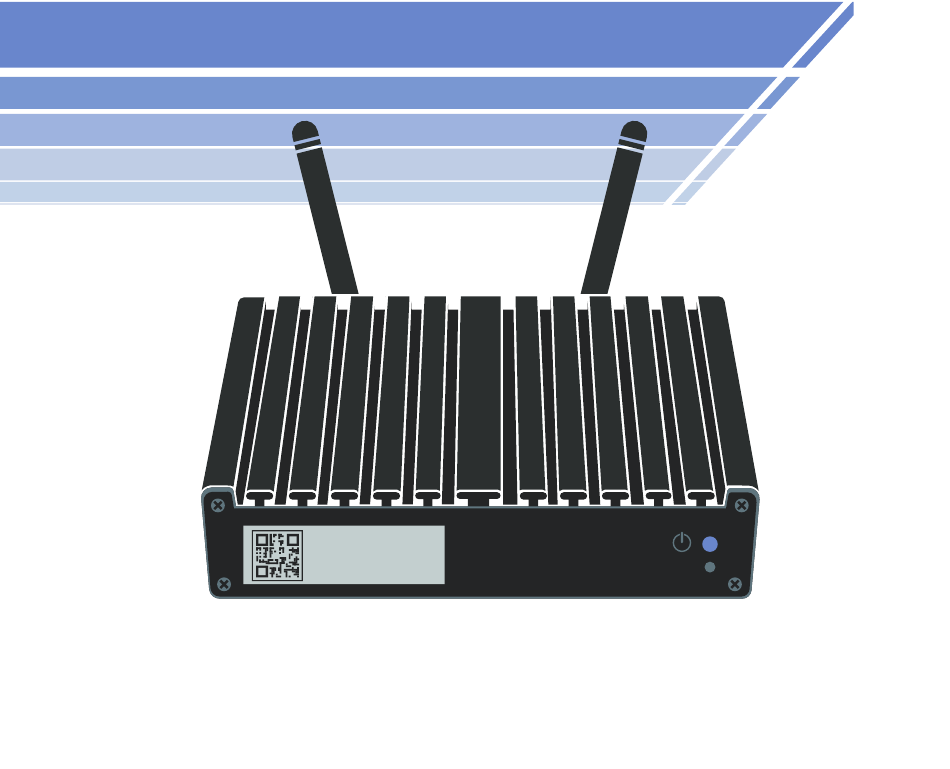

- Page 1 ECOFIT Gateway Model: GTY110 Rev: 1.1 Gateway 001-256-55801 ECOFIT Networks Inc Warranty and Quick Start Guide...
-
Page 2: Table Of Contents
Contents Contents..................... 1 Networking Considerations ............2 Gateway Installation................ 3 Gateway Mounting................4 User Notice ..................6 Warranty Statement ..............7 Certification Information............... 8... -
Page 3: Networking Considerations
If required, a static IP address can be set on the Gateway. This is done by logging into the Gateway and manually setting the IP address in the Network Settings. Full step by step instructions can be found on the ECOFIT Help Center. -
Page 4: Gateway Installation
1 - Ethernet Cable 1 - Antennas 1. Connect both antennas to Gateway. 2. Connect active ethernet port. 3. Connect to power supply to active 4. Gateway will automatically power up. outlet. Visit the ECOFIT Help Center for configuration information. -
Page 5: Gateway Mounting
Gateway Mounting To Wall Mount the System: 2. Place the mounting panel on 1. Locate the 2 screw holes the Gateway. Fasten compatible reserved for mounting on the screws to secure the Gateway. bottom of the Gateway PC 3. Screw the mounting pad to the wall using the above marked screw holes. - Page 6 Gateway Mounting To VESA Mount the System: 1. Locate the 2 screw holes 2. Place the mounting panel on reserved for mounting on the the Gateway. Fasten compatible bottom of the Gateway PC screws to secure the Gateway. 3. Remove the reserved screws 4.
-
Page 7: User Notice
User Notice Environmental Safety Instruction Avoid dust, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0-40 Centigrade is the optimal operating temperature. COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 8: Warranty Statement
(24) months from the original purchase date. The liability of ECOFIT under the Limited Warranty shall be limited to, at ECOFIT’s sole discretion: the cost of parts and labor provided by ECOFIT to repair defects in materials and / or workmanship of the defective product;... -
Page 9: Certification Information
(e.i.r.p.) is not more than that necessary for successful communication. The minimum distance where the maximum permissible exposure limit is reached is 3.01 cm from the GTY110 with the 2dBi antenna.
