SANLI MT426 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MT426
Please read this instruction manual carefully
before operating your machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT426 and is the answer not in the manual?

Questions and answers

Summary of Contents for SANLI MT426

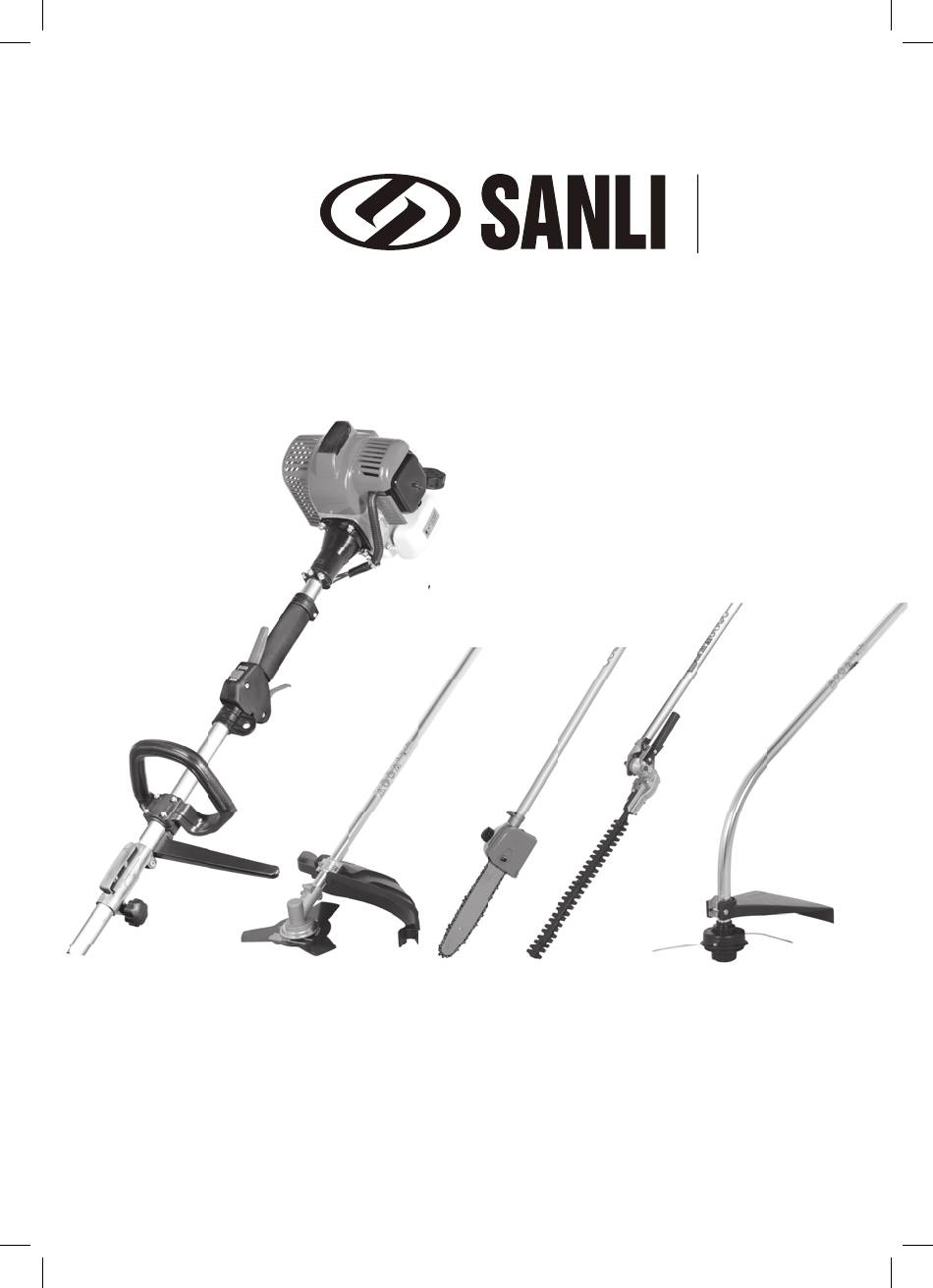

  • Page 1 MT426 Please read this instruction manual carefully before operating your machine.
  • Page 2  ...

  • Page 3: Table Of Contents

    24 month warranty. Inside this guide you will find out all you need to know to correctly operate your new Sanli Multi tool. To ensure that you use your new multi tool responsibly and get the best results possible, please read all of the safety and operating instructions carefully.
  • Page 4 Multi Tool Features. Fuel tank Air cleaner Starter Housing Throttle cable Throttle interlock Throttle trigger Engine switch Operate handle Harness hook Handle Shaft Blade guard Gear case Blade Cutting line spool Gear case Blade Oil tank Saw chain Guide bar Gear case Connector...

  • Page 5: Tips On Multi Tool Safety

    Sanli recommends that you wear ear protectors, safety goggles and safety boots when using a multi tool. All servicing and repair work under warranty must be carried out by an Authorised Sanli Dealer, otherwise the warranty may be void.

  • Page 6: Attaching The Handle

    Attaching the handle - straight shaft. Place the upper ergonomic handle in the desired position (Fig 1) then while holding the lateral handle underneath in position, insert the screws and tighten with the allen key provided. Fig 1 Insert the attachment shaft into the engine shaft, ensure the locator on the engine shaft meets the hole on the attachment shaft (Fig 2).

  • Page 7: Attaching The Safety Guard

    Attaching the safety guard - straight shaft. While placing the multi tool on the ground, place the guard as shown in (Fig 4) and locate the screws through the tension plates as indicated and tighten screws Attaching the cutting blade. Fig 4 (straight shaft model only) When heavy duty cutting is required...

  • Page 8: Attaching The Trimmer Head

    Attaching the trimmer head - bent shaft. Tighten clockwise the trimmer head. Use the black plastic spanner provided on the nylon head to tighten it (Fig 8). Fig 8 Replacing trimmer line – bent shaft. Take approximately 4-5 metres of 2.0- 2.4mm diameter trimmer line, fold in half to make a loop.

  • Page 9: Attaching The Pruner

    In order to stop the line from unraveling, slip each end into the lugs on the bottom edge of the spool, shown in (Fig 11). Fig 11 Insert ends of the trimmer line through the holes in side of the spool casing and place the spool into the centre of the casing (Fig 12).

  • Page 10: Attaching The Hedge Trimmer Attachment

    Using an Allen key. Tighten the bolt provided, to fix the mechanism into place (Fig 14). Fig 14 Filling up with oil Fill the oil tank with chainsaw oil before using. (Fig 15) Attaching the hedge trimmer attachment. Fig 15 Remove the screw from the end of the hedgetrimmer attachment.

  • Page 11: Starting Your Multi Tool

    Starting your multi tool. Before operating your multi tool, mix 40 parts of regular unleaded petrol to 1 part 2- stroke oil (40:1). Do not overfill the tank as this can risk fuel spilling on hot components when in use. It is recommended that you make your mixture with a fuel mixing bottle Slide the ignition switch, away from the STOP position (Fig 18).

  • Page 12: Using Your Accessories

    To stop the engine, simply move the ignition switch back to the STOP position (Fig 21). Fig 21 Using your accessories. The shoulder strap see (Fig 22) can be adjusted in length for the convenience of the operator and hooks onto the eyelet on the shaft.

  • Page 13: Technical Specifications

    Technical Specifications. Model number MT426 Auto clutch, spiral bevel gear, rigid Drive train shaft: line trimmer flexible shaft: pruner, hedge trimmer, brush cutter Reduction gear ratio 2-stroke vertical piston valve Engine type SL1E34F-2 petrol engine Engine model 40:1 regular unleaded petrol to...

  • Page 14: Fast Troubleshooting

    Often, a depleted, loose, or dirty spark plug is responsible for a multi tool not being able to start, but there can be a number of other reasons. Refer below to the list of potential problems you may encounter, along with suggested remedies. For servicing and all warranty work, contact your local Authorised Sanli Dealer. Problem Likely cause...

  • Page 15: Basic Maintenance Made Easy

    Basic maintenance made easy. WARNING! If the multi tool is not serviced correctly, you could void warranty and reduce its ability to operate effectively. 1. Spark plug. Wait until the engine has cooled before disconnecting the spark plug located under the rubber cover and then removing the spark plug with the box spanner supplied.

  • Page 16: Maintenance Chart

    4. Maintenance Chart Every Every Every Before System/component Procedure Note hours hours hours after after after Fuel leaks or spillage √ Wipe out Fuel tank, air filter, fuel filter Replace,if √ √ Inspect /clean necessary Idle adjusting screw √ Spark plug Clean and re- √...

  • Page 17: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY Fujian Jinjiang Sanli Engine Co., Ltd. declares that the following equipment manufactured by Fujian Jinjiang Sanli Engine Co.,Ltd conforms to the following Directive(s): 98/37/EC amended by directive 2004/26/EC on polluting particles,2006/42/EC,2006/95/EC(low voltage directive) and 2000/14/EC on the noise emission in the environment by equipment for use outdoors, amended by Directive 2005/88/EC.
  • Page 18 INSTRUCTION MANUAL NOTE PAGE 18...
  • Page 19 2YEARS MULTI TOOL / MT426...
