USER GUIDE
ELEVATOR // PB-440
Review 01/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Promeba PB-440

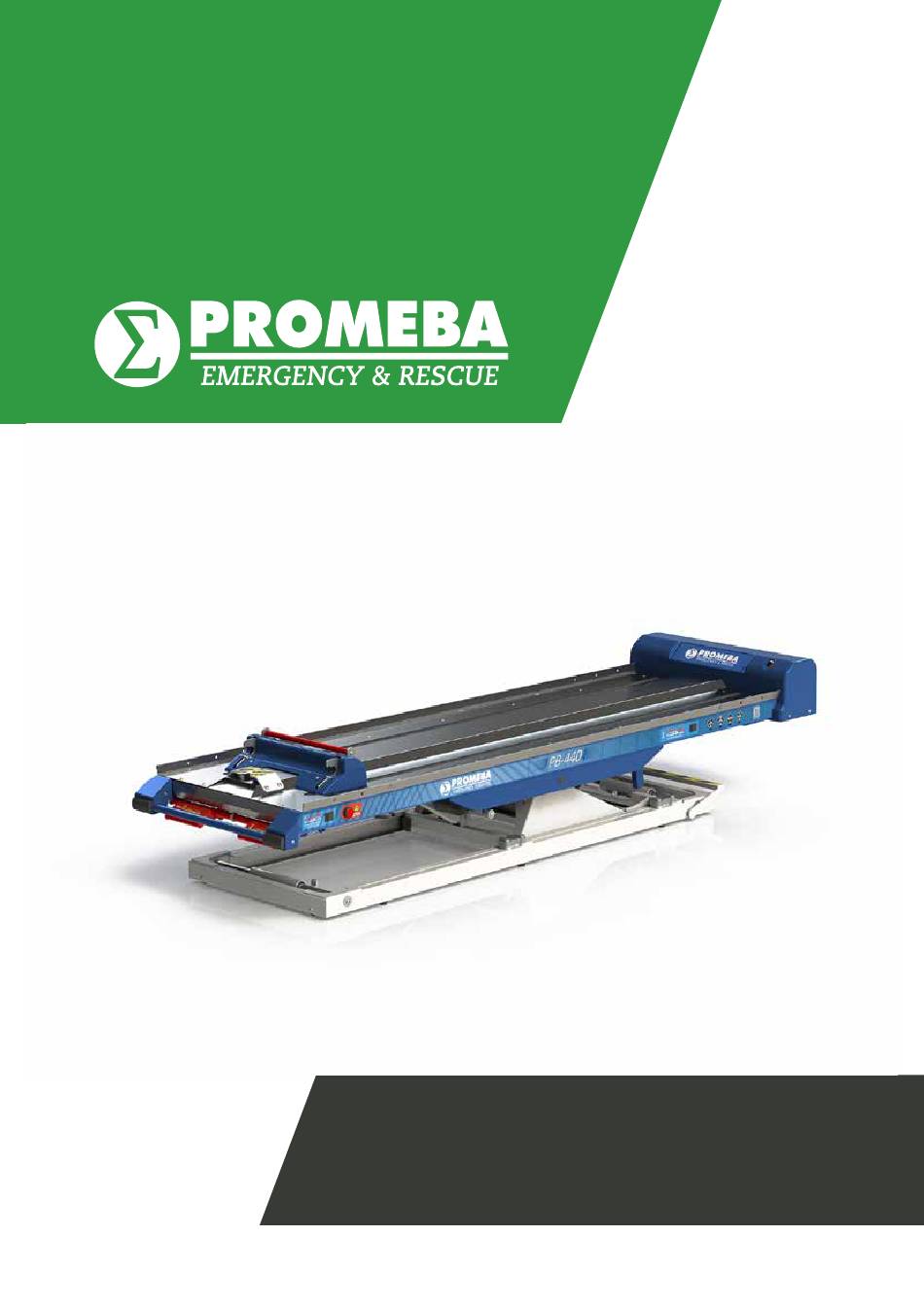

  • Page 1 USER GUIDE ELEVATOR // PB-440 Review 01/19...

  • Page 3: Table Of Contents

    04.5 Listado de referencias plataforma superior PB-440/2 04.6 Conjunto plataforma base PB-440/5 · PB-440/2 04.7 Listado de referencias conjunto plataforma base PB-440/5 · PB-440/2 04.8 Explosionado carro elevador PB-440/5 · PB-440/2 04.9 Listado de referencias carro elevador PB-440/5 · PB-440/2 04.10...

  • Page 5: User Manual // Elevator Pb

    USER MANUAL // ELEVATOR PB-440 Review 01/19 INTRODUTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.

  • Page 6: Technical Data Sheet

    USER MANUAL // ELEVATOR PB-440 Review 01/19 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PB-440/2 + PB-440/5 WITH SIDE MOVEMENT LENGHT 2018 mm/ 2218 mm ELECTRIC SUPPLY 12 V. CC. WIDTH 630 mm POWER CONSUMPTION 100A HEIGHT 425 mm TRENDELEMBURG -15º...
  • Page 7 USER MANUAL // ELEVATOR PB-440 Review 01/19 INSTALATION 02.1 Transport and unpacking First carefully remove the packaging to prevent the da- mage of the outside of the stretcher support. 1. Transport with a crane (high load) · Thread tapes through the upper platform for its trans- port (as shown in graphs) ·...

  • Page 8: Anchorage Points

    USER MANUAL // ELEVATOR PB-440 Review 01/19 INSTALATION 02.2 Anchore points Before putting the bench into operation, ensure that each and every anchorage points are placed and clasped. ANCHORE FOR PB-440/5 (8 anchorage points) 12,5 1285 ANCHORE FOR PB-440/2 (8 anchorage points)
  • Page 9 USER MANUAL // ELEVATOR PB-440 Review 01/19 INSTALATION 02.3 Connection to the mains power supply To make the connection follow the steps below. Be particularly careful when connecting the bench to the required voltage of 12V direct current and do not leave cables in passageways and or moving elements.

  • Page 11: Commands

    USER MANUAL // ELEVATOR PB-440 Review 01/19 OPERATING 03.1 Commands Crank Third anchor point Security sensors Extraction lever Manual loading lever Charge / discharge button Emergency stop pushbutton Side movement pedal Push button position trendelemburg Status indicator led Manual unlocking hooks...

  • Page 12: Elements Of The Manual System

    USER MANUAL // ELEVATOR PB-440 Review 01/19 OPERATING 03.2 Elements of the manual system Lateral displacement Hand lever Operate the lever located on the rear of the right side of the bench, making a slight effort with the foot and accompanying this movement by sliding your hands.
  • Page 13 USER MANUAL // ELEVATOR PB-440 Review 01/19 OPERATING...

  • Page 15: Electric Motion Within The Ambulance

    USER MANUAL // ELEVATOR PB-440 Review 01/19 OPERATING 03.4 Electric motion within the ambulance The following predefined movements can be completed with the hand control. ZERO POSITION OR REST POSITION Zero position, also known as rest position, is where the bench is fully horizontal and folded on itself (1). This position can be switched with the hand control by pressing the button (No.

  • Page 17: Main Exploded View

    USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.1 Main exploded views PB-440/5 TOP PLATFORM SEE DETAIL ON PAGE 18 PB-440/2 TOP PLATFORM SEE DETAIL ON PAGE 26 · PB-440/5 PB-440/2 BASE PLATFORM SEE DETAIL ON PAGE 34 ·...
  • Page 18 USER MANUAL // ELEVATOR PB-440 Review 01/19 04.2 Top platform set PB-440/5...
  • Page 19 USER MANUAL // ELEVATOR PB-440 Review 01/19 04.2 Top platform set PB-440/5 DETALLE A ESCALA 1 : 5 DETALLE AA ESCALA 1 : 5 DETALLE E ESCALA 1 : 5 DETALLE C ESCALA 1 : 5 DETALLE D ESCALA 1 : 5...
  • Page 20 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.2 Top platform set PB-440/5 DETALLE B ESCALA 1 : 4...
  • Page 21 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.2 Top platform set PB-440/5 DETALLE N ESCALA 1 : 5 DETALLE M ESCALA 1 : 7...
  • Page 22 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.2 Top platform set PB-440/5...
  • Page 23 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.3 Bill of materials TOP PLATFORM SET PB-440/5 NUM. ELEMENT CODE - DESCRIPTION UNITS 02.1 PB4405-05012 - SuBconjunt Plataforma SuPerior llarga 02.2 PB4400-00300 - conjunt coStella arraStre 02.3 PB4400-00390 - final De carrera 02.4...
  • Page 24 PB4184-00060 - cantonera PlaStic Safata 02.106 PB4400-00700 - cuBre Perfil auto-aDHeSiu SPgSg-6 02.110 ec-051129-2 - Perfil co-extruSionaDo 02.111 PB4405-00090 - Pati tercer Punt eleVaDor PB-440 02.115 PB4010-00060 - terminal funDa caBleS t01-05 02.116 PB4400-00370 - motor-reDuctor m050 fB 1-7 12V Dc 800W S2 3000rPm 02.117...
  • Page 25 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.3 Bill of materials TOP PLATFORM SET PB-440/5 NUM. ELEMENT CODE - DESCRIPTION UNITS 02.127 PB4400-00410 - PulSaDor rocKer (rl23-23-c-6-BKBK-P4-3) 02.128 PB4400-00410 - PulSaDor rocKer (rl23-23-c-6-BKBK-P4-3) 02.129 PB4400-05232 - SuPort Per Detector inDuctiu central 02.130...
  • Page 26 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.4 Top platform set PB-440/2...
  • Page 27 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.4 Top platform set PB-440/2 DETALLE AA ESCALA 1 : 5 DETALLE A ESCALA 1 : 5 DETALLE E ESCALA 1 : 5 DETALLE C ESCALA 1 : 5 DETALLE D...
  • Page 28 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.4 Top platform set PB-440/2 DETALLE B ESCALA 1 : 4...
  • Page 29 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.4 Top platform set PB-440/2 DETALLE N ESCALA 1 : 5 DETALLE M ESCALA 1 : 7...
  • Page 30 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.4 Top platform set PB-440/2...
  • Page 31 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.5 Bill of materials TOP PLATFORM SET PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 03.1 PB4402-05012 - SuBconjunt Plataforma SuPerior corta 03.2 PB4400-00300 - conjunt coStella arraStre 03.3 PB4400-00390 - final De carrera 03.4...
  • Page 32 PB4402-00700 - cuBre Perfil auto-aDHeSiu SPgSg-6 03.108 ec-051129-2 - Perfil co-extruSionaDo 03.109 PB4010-00060 - terminal funDa caBleS t01-05 03.112 PB4405-00090 - Pati tercer Punt eleVaDor PB-440 03.114 PB4400-00370 - motor-reDuctor m050 fB 1-7 12V Dc 800W S2 3000rPm 03.116 PB4402-05232 - SuPort encoDer motor 03.122...
  • Page 33 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.5 Bill of materials TOP PLATFORM SET PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 03.125 PB4400-00410 - PulSaDor rocKer (rl23-23-c-6-BKBK-P4-3) 03.126 PB4400-05240 - PulSaDor rocKer (rl310-11-g-2-BKBK-P5-0) 03.127 PB4400-05232 - SuPort Per Detector inDuctiu central 03.128...
  • Page 34 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.6 Base platform set PB-440/5 · PB-440/2...
  • Page 35 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.7 Bill of materials BASE PLATFORM SET PB-440/5 & PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 06.2 PB4400-03000 - conjunt carro eleVaDor 06.4 PB4400-00180 cilinDre electric motor 06.5 PB4400-00180 cilinDre electric VaSteg 06.7...
  • Page 36 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.8 lift truck set PB-440/5 · PB-440/2...
  • Page 37 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.9 Bill of materials LIFT TRUCK PB-440/5 & PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 08.1 PB4400-03012 - SuBconjunt carro eleVaDor 08.2 PB4100-03212 - SuBconjunt SufriDera carro 08.3 PB4100-03110 - roDa nylon 08.4...
  • Page 38 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.10 Elevator guide set PB-440/5 · PB-440/2...
  • Page 39 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.11 Bill of materials ELEVATOR GUIDE SET PB-440/5 & PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 10.3 PB4400-02000 - conjunt guia eleVaDor 10.6 PB4400-00310 - caDena PortacaBleS (uniflex 0345.030.020 Kr38) 10.10...
  • Page 40 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.12 Elevator guide PB-440/5 · PB-440/2...
  • Page 41 USER MANUAL // ELEVATOR PB-440 Review 01/19 MOUNTING AND COMPONENTS 04.13 Bill of materials ELEVATOR GUIDE PB-440/5 & PB-440/2 NUM. ELEMENT CODE - DESCRIPTION UNITS 12.1 PB4400-02012 - SuBconjunt guia eleVaDor 12.2 PB4100-02251 - torrio fixaDor lateral 12.3 PB4100-02332 - SuBconjunt actuaDor moViment lateral 12.4...

  • Page 43: Printed Circuit Board

    USER MANUAL // ELEVATOR PB-440 Review 01/19 ELECTRICAL CIRCUIT DIAGRAM 05.1 Printed circuit board Components Loading position (Control command) Tilt switch 2 Micro-sensor (Loading handle) Tilt switch 1 Zero position (Control command) Micro-switch for loading position (common) Micro-sensor (Unloading handle)

  • Page 44: Pin Conector Hand Control

    USER MANUAL // ELEVATOR PB-440 Review 01/19 ELECTRICAL CIRCUIT DIAGRAM 05.2 PIN conector Hand control Female connector diagram 9 (common) FRONTAL VIEW CONECTOR DIN - FEMALE -...
  • Page 45 USER MANUAL // ELEVATOR PB-440 Review 01/19 ELECTRICAL CIRCUIT DIAGRAM Male connector diagram 9 (common) FRONTAL VIEW CONECTOR DIN - MALE -...

  • Page 46: General Maintenance

    USER MANUAL // ELEVATOR PB-440 Review 01/19 GENERAL MAINTENANCE CLEANING WEAR AREAS Keeping the equipment cleaned is essential to ensu- Regularly examining the system’s components to re a good use and durability of the set. It is necessary check if they are wearing out is a preventive measure to make a periodical thorough cleaning, especially in that can reduce breakdowns.

  • Page 47: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication.

  • Page 48: Product Warranty

    Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...
  • Page 50 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
