4.2 Assemble hopper to base

1. Remove safety guard, front and back clamp bars from base. Remove 4 = ¼" x ¾" bolts, washers and
locknuts and set aside. Remove angle lock handle and washer.
2. Remove the 2 = ½" x 1-½" pivot bolts and locknuts and set aside.
a) Lay top frame on base.
3. Install the 2 = ½" x 1-½" pivot bolts through the pivot points on the top frame. Do not fully tighten so that
the bolts are free to turn.
a) Reinstall angle lock handle and washer, and back top frame in raised position.
4. Attach hopper canvas bottom. Align holes that are punched into the lower part of the hopper fabric with
holes on the base. Reinstall the clamp bars using the ¼" x ¾" bolts that were set aside.
5. Reinstall the safety guard using 4 = ¼" x ¾" bolts, washers and locknuts that were set aside, and put
through holes on hopper canvas.
6. Insert auger retaining pin into auger end support bracket.
PIVOT POINTS
If you have any questions regarding assembly of the adjustable hopper phone:
GATCO Help Line: 1-306-778-3338
MANUAL AH

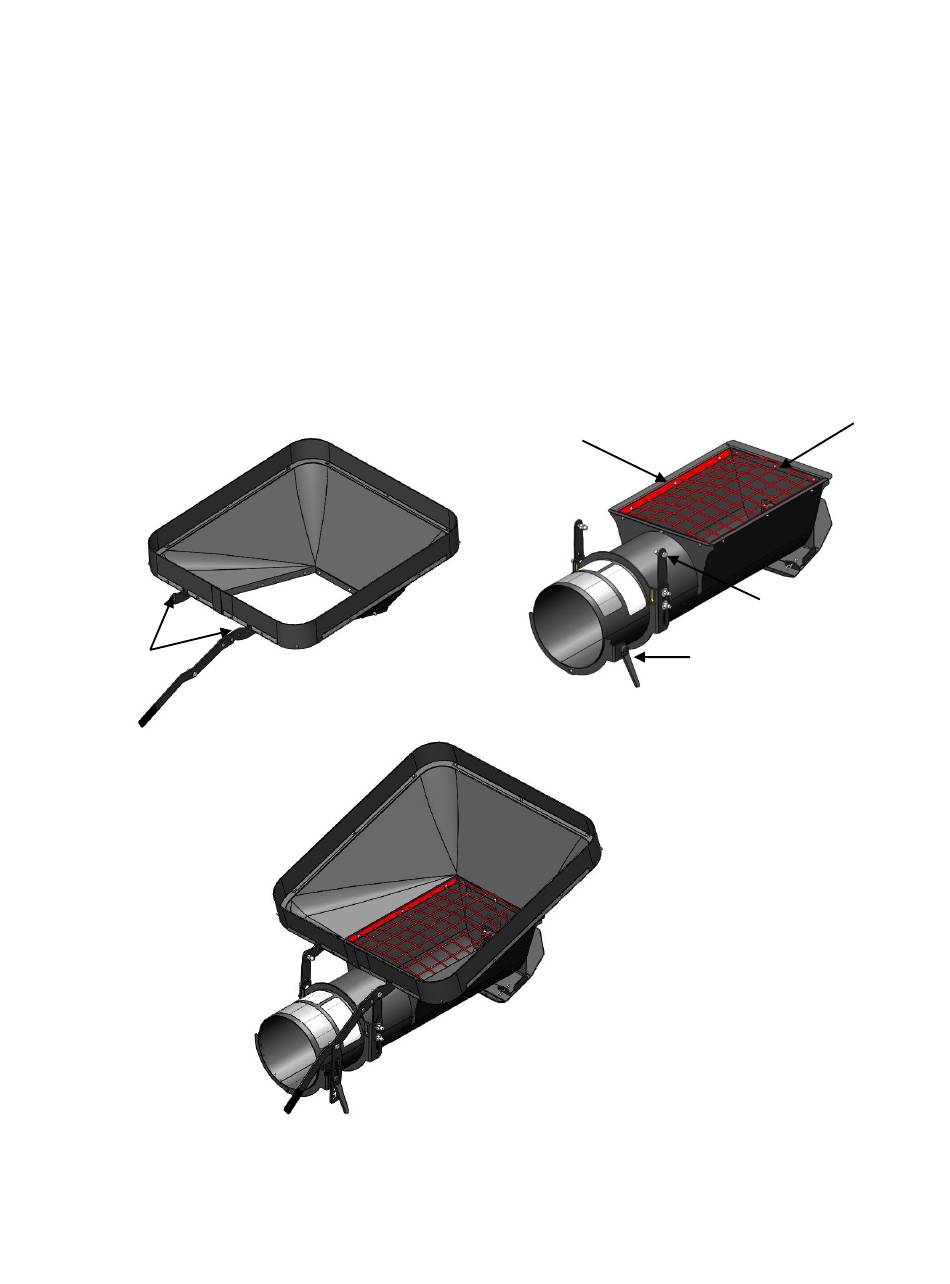

Fig. 4.2a TOP FRAME
CLAMP BAR
Fig. 4.2c COMPLETE
SAFETY GUARD
PIVOT BOLTS
ANGLE LOCK HANDLE
AND WASHER
Fig. 4.2b BASE
