Cutler-Hammer 11100A6513 Instruction Manual

Cutler-Hammer
Instruction Manual:
Comet
Models covered in this manual:
Viewing Style:
Sources Wide Beam
Long Range
Detectors Wide Beam
Long Range
THESE PRODUCTS ARE NOT DESIGNED, TESTED, OR RECOM-
MENDED FOR USE IN HUMAN SAFETY APPLICATIONS.
USE #4 MOUNTING HARDWARE ONLY! LARGER HARDWARE
WILL DAMAGE THE SENSOR AND MAY CREATE AN ELECTRI-
CAL SHOCK HAZARD. TIGHTEN THE HARDWARE JUST TO THE
SENSOR BODY SO THAT NO DEFLECTION OF THE BODY
OCCURS.
DURING INSTALLATION, CORRECT POWER CONNECTIONS
MUST BE MADE FIRST TO ENSURE FAIL-SAFE SHORT CIRCUIT
PROTECTION OF THE OUTPUTS. REFER TO THE WIRING
DIAGRAMS IN THIS MANUAL.
DO NOT USE TOOLS TO APPLY TORQUE DIRECTLY TO SENSOR
BODY. ALIGN SENSOR BY HAND BEFORE TIGHTENING
MOUNTING HARDWARE.
THE GAIN AND LIGHT/DARK ADJUSTMENT POTS ARE 3/4
TURN POTS. ANY RESISTANCE ENCOUNTERED WHILE
ADJUSTING THESE POTS INDICATES YOU HAVE REACHED THE
ADJUSTMENT LIMIT STOP. TURNING PAST THIS STOP WILL
DAMAGE THE SENSOR.
USE ONLY A SUITABLE ADJUSTMENT TOOL OR FLATBLADE
SCREWDRIVER WHEN TURNING ADJUSTMENT POTS. SHARP
OBJECTS CAN DAMAGE THE POT AND RESULT IN ELECTRICAL
SHOCK.
AC/DC CONNECTOR VERSION SENSORS ARE EQUIPPED WITH
AN AC-TYPE CONNECTOR. THE USE OF DC POWER WITH AC-
TYPE CONNECTORS MAY NOT CONFORM WITH ESTABLISHED
STANDARDS.

INTRODUCTION

Thru-beam sensors consist of a source and detector posi-
tioned on opposite sides of a detection zone. The source emits
infrared and visible red light, which is received by the detector.
The detector output switches when this beam of light is either
blocked (when set for dark operation), or completed (light
operation). Note that a wide beam source will not work with a
® Series Thru-Beam Sensors
AC/DC Models w/ Cable AC/DC Models w/ Connector
Forward Right Angle Forward
11100A6513 11100R6513 11100AQD03
11102A6513 --- 11102AQD03
12100A6513 12100R6513 12100AQD03
12102A6513 --- 12102AQD03
WARNING
DC-only Models w/ Cable
Right Angle Forward
11100RQD03 11100A6517
--- 11102A6517
12100RQD03 12100A6517
--- 12102A6517
long range detector and a wide beam detector will not work
with a long range source .

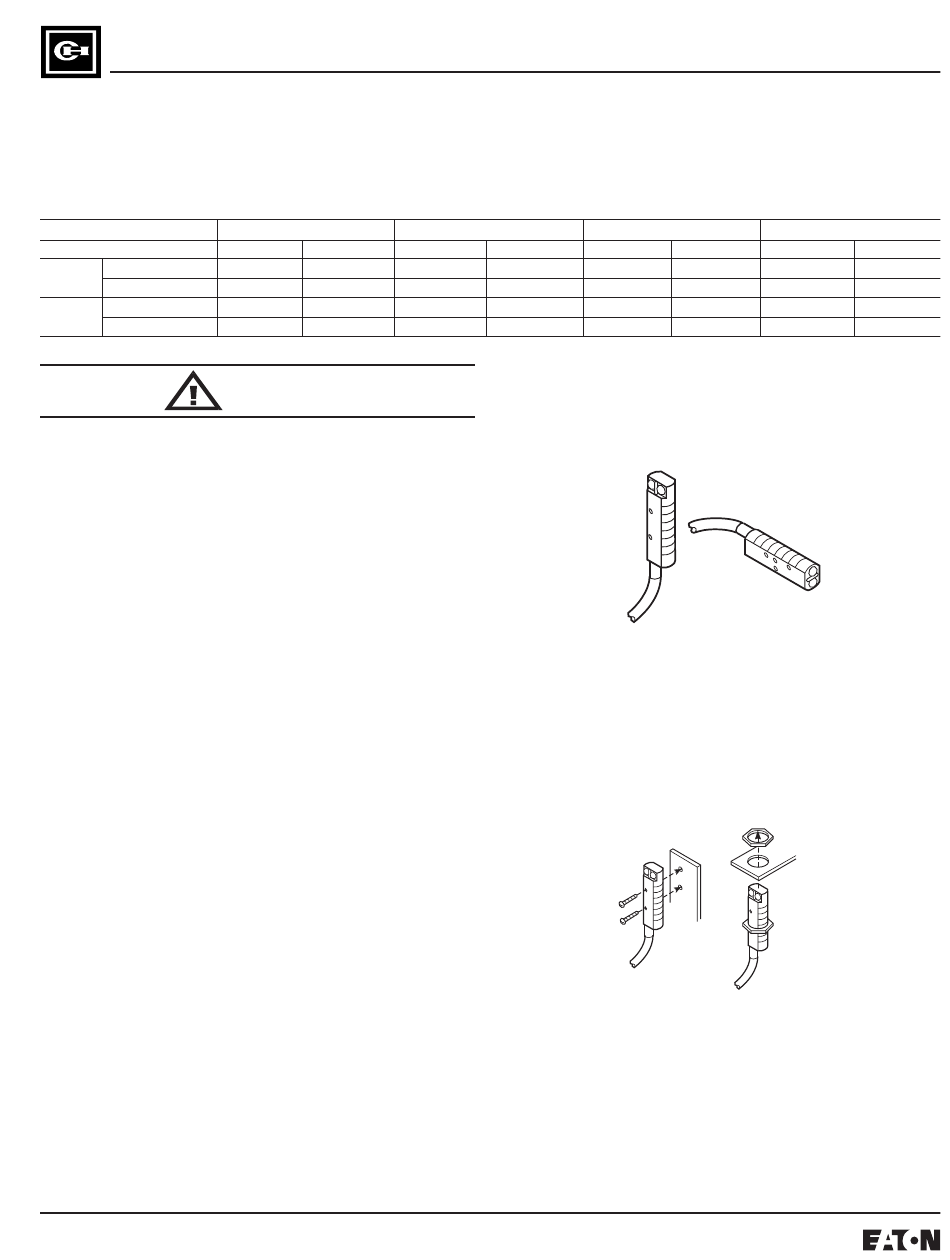

This manual covers both forward viewing and right angle
viewing models. Although the units differ in the location of the
lenses, the basic fundamentals of installation, setup, and
Right Angle
Viewing
operation are nearly identical. The two types of sensors may be
intermixed with no change in optical performance.

MOUNTING

The Comet sensor features a threaded housing and includes
jam nuts and washers. This allows mounting into any 0.75 inch
hole, or a model 6161A-6501 "L" bracket. Use caution to avoid
Mounting
sensor using
#4 hardware.
cross-threading the jam nuts on the sensor body. Tighten nuts
to less than 4 N•m (36 in.-lbs. or 3 ft.-lbs.) torque to avoid
stripping threads.
A second mounting method is to use #4 hardware in the 0.125
inch diameter mounting holes in the flat sides of the sensor.
This is ideal for mounting the Comet against a wall, piece of
equipment, rail, mounting bracket, etc.
109818-100 Rev 05
DC-only Models w/ Connector
Right Angle Forward
11100R6517 11100AQD07
--- 11102AQD07
12100R6517 12100AQD07
--- 12102AQD07
Forward
Viewing
Mounting
sensor
using
jam nuts.
Right Angle
11100RQD07
---
12100RQD07
---
