UniStrong Odin Quick Start Manual

www.unistrong.com/english

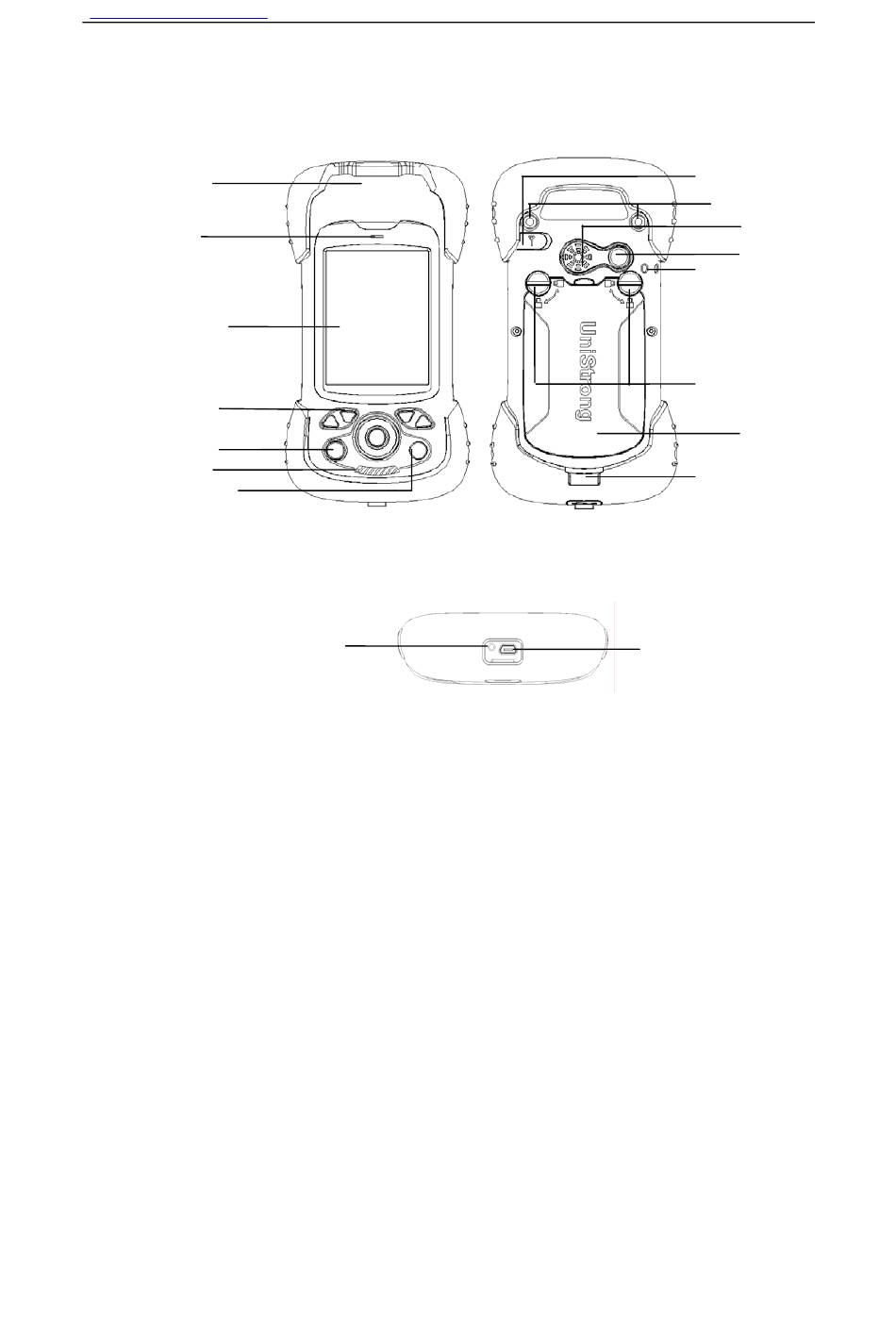

1. Appearance
Antenna
Earpiece
Touch panel
Other function
keys
Power
Microphone
Start menu
Reset button
2. Operating steps：
I. Charging
II. Fix TF card/SIM card/battery
III．Turn on the collector
IV. Connect to PC to install application or data
V. Collect GIS data with internal GPS and GIS application
VI. Upload data
•
Charging
Insert the Li-ion battery into the battery charger to charge.
Remark: mini USB cable can also be used to charge the receiver. When normally charged, there is
charging icon in the screen if receiver is off and there is charging icon to the top right corner in the screen
if receiver is on.
•
Fix TF card/SIM card/Battery
1、Turn the back cover screw to the open position according to the instruction on the back
cover and take off the back cover(figure 1).
2、Fix the SIM card and TF card according to the instruction in the battery cabin(figure 2).
3、Fix the battery.
4、Fix the back cover and turn the back cover screw to the lock position according to the
Odin Series Quick Start
Front
Bottom
Back
Mini USB socket
底部
Quick Start for Odin
External antenna
connector
Back strap screws
Speaker
Camera
Lanyard tether point
Back cover screw
Back cover
Back strap holder
