Summary of Contents for Boston Life Labs H-Box

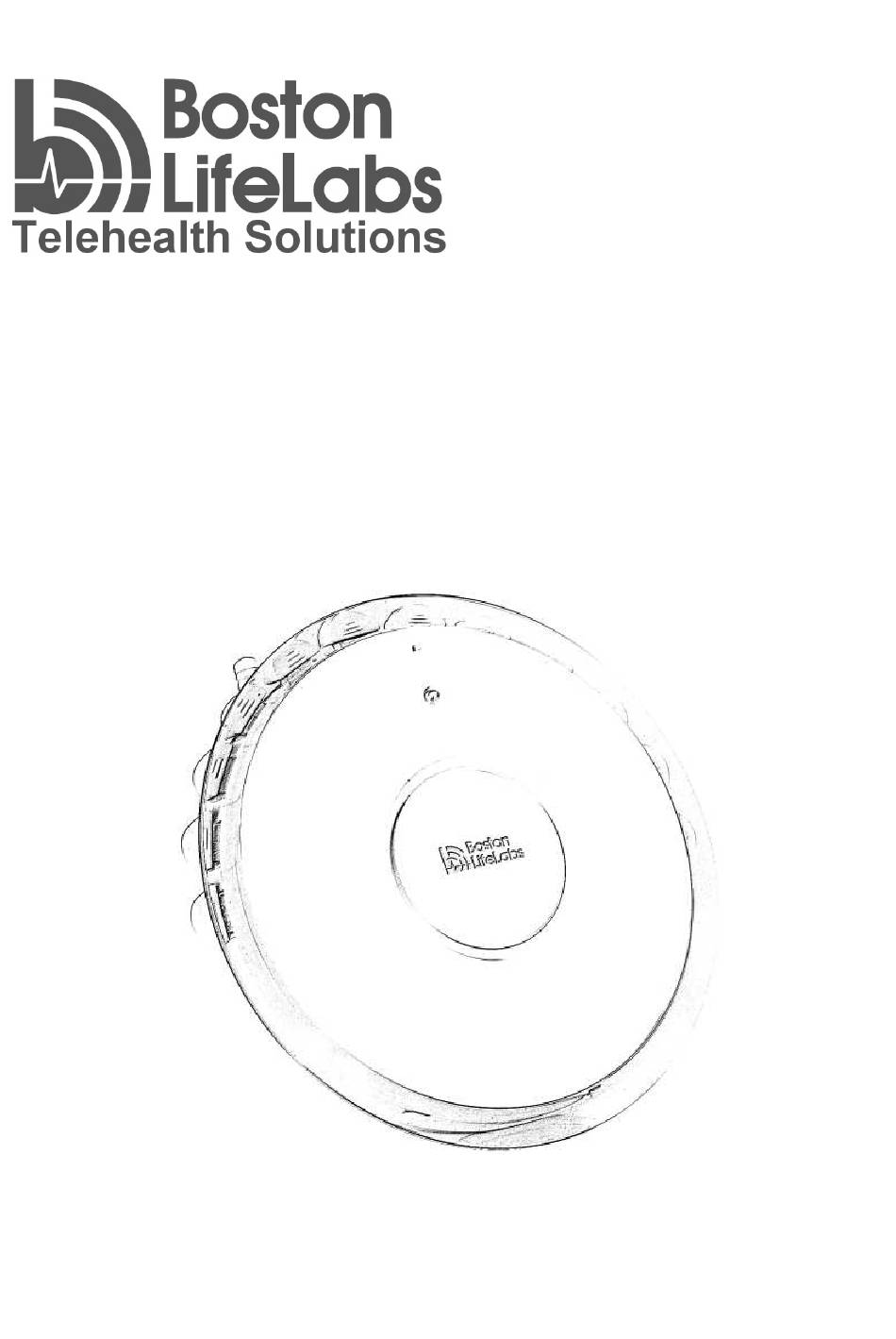

- Page 1 Wireless Telehealth Hub H-Box Boston Life Labs LLC.
- Page 2 User Manual for H-Box Wireless Telehealth Hub Instructions to User Dear Users, Thank you for purchasing our product. Please read the manual carefully before using this device. Failure to follow these instructions cause measuring abnormality or equipment damage. The Manual is published in English and Boston Life Labs LLC.
- Page 3 User Manual for H-Box Wireless Telehealth Hub Notes: The contents contained in this manual are subject to change without notice. Information furnished by our company is believed to be accurate and reliable. However, no responsibility is assumed by us for its use, or any infringements of patents or other rights of third parties that may result from its use.
- Page 4 User Manual for H-Box Wireless Telehealth Hub Warnings The local law must be followed when disposing of the device. Attentions Keep the device away from dust, vibration, corrosive substances, explosive materials, high temperature and moisture. The device should be kept out of the reach of children.
-
Page 5: Table Of Contents
User Manual for H-Box Wireless Telehealth Hub Table of Contents 1 OVERVIEW ............1 1.1 A ........... 1 PPEARANCE 1.2 F ............2 EATURES 1.3 N .......... 2 AME AND ODEL 1.4 A ......2 PPLICATIONS AND COPE 2 BASIC OPERATIONS ........2 2.1 P... - Page 6 User Manual for H-Box Wireless Telehealth Hub 4.4 S & T ..........7 ETUP 5 RFID TAG READING ......... 8 6 EXCEPTIONAL SITUATIONS ......8 7 TECHNICAL SPECIFICATIONS...... 9 8 MAINTENANCE ..........9...
-
Page 7: Overview
User Manual for H-Box Wireless Telehealth Hub 1 Overview 1.1 Appearance GSM antenna Microphone Dongles RFID antenna (not included) Speaker Wireless button Phone button ON/OFF switch Download SIM card slot serial port H-Box Front GSM antenna Dongles (not included) Power prongs... -
Page 8: Features
User Manual for H-Box Wireless Telehealth Hub The Wireless Telehealth Hub includes 12 dongle slots located all around the upper part of the equipment. Each dongle slot can receive one dongle. 1.2 Features The Wireless Telehealth Hub is a GSM-based equipment with telehealth and social alarm functions. -
Page 9: Power Supply
User Manual for H-Box Wireless Telehealth Hub any complex user action to function. 2.1 Power Supply The device is either powered by a standard AC socket or by its internal batteries (capacity of up to 12 hours). Each time the Wireless Telehealth Hub plugged in or out of the AC socket, a deep “beep”... -
Page 10: Power Off
User Manual for H-Box Wireless Telehealth Hub 2.3 Power Off At anytime, slide the ON/OFF switch to the right, the Wireless Telehealth Hub will shut down with a sharp “beep”. 3 Telehealth Function 3.1 Enable/Disable Wireless Device In order for the Wireless Telehealth Hub to be enabled... -
Page 11: Data Transfer
User Manual for H-Box Wireless Telehealth Hub 3.2 Data Transfer If a wireless device is enabled with the Wireless Telehealth Hub (see above) and the user makes a measurement (also make sure the wireless device is properly setup, see specific user manual for details), the... -
Page 12: Social Alarm Function (Option)
User Manual for H-Box Wireless Telehealth Hub 4 Social Alarm Function (option) 4.1 Description The social alarm function (also called P.E.R.S. for Personal Emergency Response System) allows the holder a panic button to automatically call the emergency services by simply pressing the button. -
Page 13: Setup & Test
User Manual for H-Box Wireless Telehealth Hub that signal triggers a phone call to a preset number. When the phone call is established, a 2 way conversation is enabled; the remote emergency service center operator already has all the information about the caller and can take further action according to the conversation outcome. -
Page 14: Rfid Tag Reading
User Manual for H-Box Wireless Telehealth Hub 5 RFID Tag Reading An RFID reader antenna is located between the LED and the speaker. When the RFID reader is powered on, it can read any compatible RFID or NFC tag and the Wireless Telehealth Hub can trigger an action based on the software version. -
Page 15: Technical Specifications
User Manual for H-Box Wireless Telehealth Hub 7 Technical Specifications A. Model No: H-Box B. Color: White C. Dimensions: ￠170mm*70mm D. Weight: TBD E. External Power: AC 110V-240, 50/60Hz F. Internal Power: 3.7V Li-ion battery G. Indicator: LED with Red, Green, Orange color H. - Page 16 User Manual for H-Box Wireless Telehealth Hub Do not immerse the device in liquid. It is recommended that the device should be kept in a dry environment. Humidity may reduce the life of the device, or even damage it. -10-...
- Page 17 User Manual for H-Box Wireless Telehealth Hub Appendix Key of Symbols Symbol Description Wireless button Phone button To power on or off the equipment Serial number Separate collection for this device. -11-...
- Page 18 User Manual for H-Box Wireless Telehealth Hub Boston Life Labs LLC. Address: Cambridge Innovation Center One Broadway 14th Cambridge, MA 02142, U.S.A. Tel: +1 (617) 440-4271 Email: info@bostonlifelabs.com Website: www.bostonlifelabs.com -12-...
- Page 19 User Manual for H-Box Wireless Telehealth Hub FCC ID: YTKH-BOXU This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation.
- Page 20 User Manual for H-Box Wireless Telehealth Hub NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 User Manual for H-Box Wireless Telehealth Hub from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
