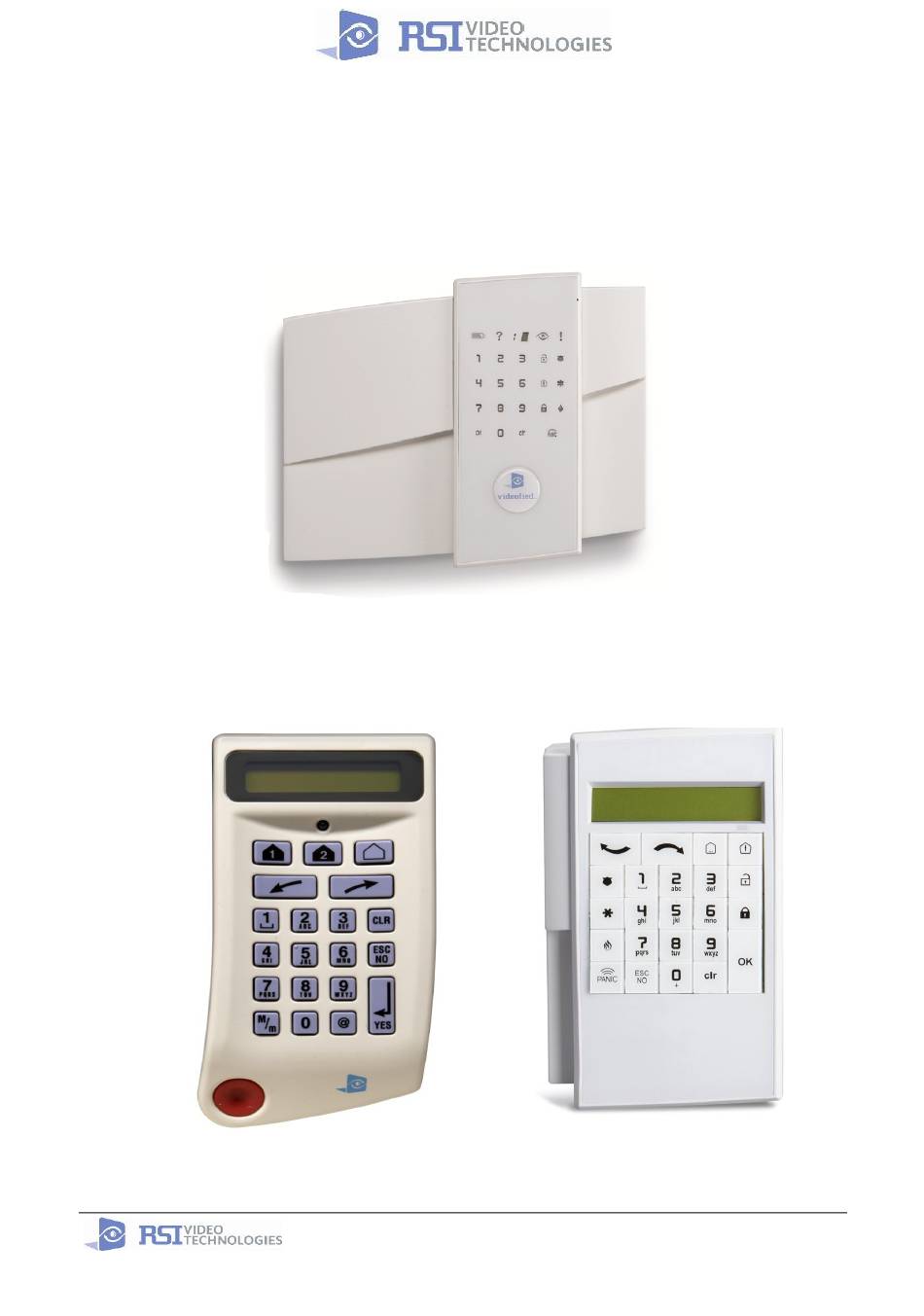

Document # 2012-XLIN
COMPLETE SETUP AND PROGRAMMING MANUAL
FOR

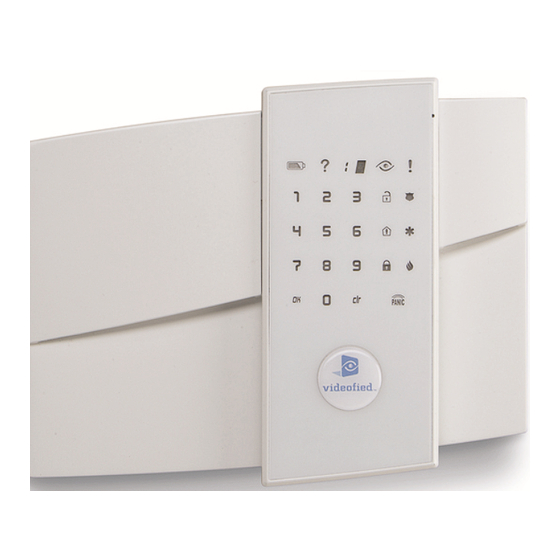

XL600 GPRS PANEL
XL600 GPRS
*A Videofied CMA601 or XMB611/XMA611 Alphanumeric Keypad is required for
programming and maintenance
CMA601
XMB611/XMA611
1375 Willow Lake Blvd. #103
Vadnais Heights, MN 55110
877-206-5800

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL600 and is the answer not in the manual?

Questions and answers

Summary of Contents for RSI XL600

  • Page 1 Document # 2012-XLIN COMPLETE SETUP AND PROGRAMMING MANUAL XL600 GPRS PANEL XL600 GPRS *A Videofied CMA601 or XMB611/XMA611 Alphanumeric Keypad is required for programming and maintenance CMA601 XMB611/XMA611 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110 877-206-5800...

  • Page 2: Table Of Contents

    2011/11/28 E2.5 Installation Manual for XL600GPRS Table of Contents Page FCC Guidelines Basic Guidelines Initial Programming 6-11 After Initial Programming Flow Chart 12-13 Entering Badges and Access Codes Disabling Monitoring Choosing Siren Options Testing to Central Station Scheduling 18-20 Mounting the XL Testing GPRS Level Testing RF Level User Functions...
  • Page 3 Installation Manual for XL600GPRS Regulatory Information for USA and Canada FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI VideoTechnologies may void the FCC authorization to operate this equipment. FCC Part 15.105 Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Initial Programming

    5800 EXT 45, or you can reach live support chat and additional technical notes at support.videofied.com. Sleeping mode and Wake-up on the XL600: Most of the time, the keypad is in a sleeping mode (backlight off). This mode is automatic after a few minutes of inactivity.
  • Page 5 2011/11/28 E2.5 Installation Manual for XL600GPRS UL Installation Guidelines In order for an installation to be UL compliant you must follow the specifications in the table below: Type Specifications Location In Manual When a MotionViewer is installed on the system you Audio Page 26 may not have the siren sound...
  • Page 6 2011/11/28 E2.5 Installation Manual for XL600GPRS Programming the XL Control Panel Install the SIM card Put the SIM card on the plastic (take care to respect the right direction). Slide it in the connector. *The SIM card must NOT be inserted or removed while the panel is powered* Power the Control Panel Option 1...
  • Page 7 Press the programming button and release on the XL for the enrollment of a CMA/XMB/XMA programming keypad. LED will Dance Programming Keypad <======XX======> RSI (c)2005 www.RsiAlarm.com CLR & ESC/NO Press both ESC/NO and CLR keys on the programming keypad. KEYPAD 1 RECORDED ...

  • Page 8: Initial Programming

    2011/11/28 E2.5 Installation Manual for XL600GPRS ENTER THE INSTALLER CODE Wait while the screen changes 4 TO 6 DIGITS THEN YES From here until the end of the programming you will not be able to step back to a previous parameter. All parameters can be changed after initial programming has been INSTALLER CODE: completed.
  • Page 9 2011/11/28 E2.5 Installation Manual for XL600GPRS DATE (Minutes) : 10:00   Use the to set the minutes. DATE (Minutes) : 10:53  03/06/09 10:53 ENTRY COMPLETE CONNECTED TO  YOU MUST ALWAYS CHOOSE ‘YES’ MONITOR.STATION? ACCOUNT NUMBER? Use the Alphanumeric Keypad to enter in 4-8 digit account number provided by the Central Station ACCOUNT NUMBER: The system will send a test to the central station every 24...
  • Page 10 2011/11/28 E2.5 Installation Manual for XL600GPRS  GPRS PARAMETERS ? Your APN (Access Point Name) code is given to you by your APN CODE  Cellular Provider. Press YES to enter into the parameter   and use the Keypad to complete the code. Press YES to ...
  • Page 11 2011/11/28 E2.5 Installation Manual for XL600GPRS GPRS LEVEL?  During the GPRS Level test the Modem will boot and attempt to gain access to the internet to post a Level out of 5 or an error Code that will help troubleshoot why it cannot connect.
  • Page 12 2011/11/28 E2.5 Installation Manual for XL600GPRS 12 | P a g e...

  • Page 13: Scheduling

    2011/11/28 E2.5 Installation Manual for XL600GPRS Configuration Menu Structure for XL CONFIGURATION GENERAL ALARM MODES RESPONDING AREAS AND CONFIGURATION PARAMETERS PROGRAMMABLE PARTY LIST DEVICES MONITOR STATION SITE VIDEOMAIL ALARM MONITORING FULLY ARMED DEVICES IDENTIFICATION ADDRESS PARAMETERS AREAS: 1234 SELECT/MODIFY MONITORING PHONE NUMBER ADD A NEW DEVICE STATE: AAAA...
  • Page 14 2011/11/28 E2.5 Installation Manual for XL600GPRS Entering a Badge or Access Code for Arming/Disarming After Initial programming has been completed, you are not able to arm and disarm the system until you enter a user code or badge (the installer code cannot arm and disarm the system). Codes can be 4-6 digits and the 4 digit must be 2 values higher or lower than any other code on the system: Example: User code 1234, next code cannot be 1235, 1236, 1233, or 1232 –...
  • Page 15 2011/11/28 E2.5 Installation Manual for XL600GPRS How to Disable Monitoring Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the panel to find a good GPRS level, disabling monitoring will ensure that you will have access to programming and that unnecessary signals are not sent to the monitoring station.
  • Page 16 2011/11/28 E2.5 Installation Manual for XL600GPRS Changing Siren Options In some situations it is required to silence the siren permanently or just for the testing of the system.  10/12/27 10:53 Press the arrow to move to ACCESS LEVEL 3. DISARMED LVL:3 ACCESS LEVEL 3 ...
  • Page 17 2011/11/28 E2.5 Installation Manual for XL600GPRS How to Test to the Dispatch Center Testing to the dispatch is done twice during installation. Once while you are programming the system and then again once the installation has been completely finished. Although both will use the same steps the initial test will be just confirmation using one device to verify the programming.
  • Page 18 2011/11/28 E2.5 Installation Manual for XL600GPRS 18 | P a g e...
  • Page 19 2011/11/28 E2.5 Installation Manual for XL600GPRS 19 | P a g e...
  • Page 20 2011/11/28 E2.5 Installation Manual for XL600GPRS 20 | P a g e...
  • Page 21 2011/11/28 E2.5 Installation Manual for XL600GPRS How to Mount the Control Panel and GPRS Test How to Mount the Control Panel?  Fix the back casing on the wall  with 4 screws () and one ) screw for the tamper ( ...
  • Page 22 2011/11/28 E2.5 Installation Manual for XL600GPRS How to RF Test for Deployment of Devices Running the RF test during the mounting of devices is key to a successful Videofied installation. This test will ensure that all devices have adequate communication with the control panel. All Videofied devices are bi-directional which allows the system to ping the device and expect a response.

  • Page 23: User Functions

    2011/11/28 E2.5 Installation Manual for XL600GPRS User Functions The user can arm and disarm the system. The user has to acknowledge the events after disarming the system or in disarmed mode. Arming the system:  Wake up the touchpad  For a full arming (AWAY mode) Put your badge on the reading area =>...
  • Page 24 2011/11/28 E2.5 Installation Manual for XL600GPRS XL Touch pad Control Panel Keypad Status after Reset or Power: After the powering on or after a resetting the panel, all symbols and keys of the touchpad are lighted for a few second before the num-pad lights up alone. Keys and symbols presentation: Symbols for events Meaning...
  • Page 25 2011/11/28 E2.5 Installation Manual for XL600GPRS Press on to cancel the PANIC call. Keys and symbols for Meaning code entry To enter a code Press on to confirm the input. Press on to suppress the last input. Additional Notes 1. When securing the cover with the provided screw you MUST make sure that the XL panel is fully closed and to take care not to pinch/damage the GPRS antenna.
  • Page 26 2011/11/28 E2.5 Installation Manual for XL600GPRS 3. There are two layers to the plastic on the XL control panel. The first is a full protective layer and the second is for the touchpad/reader portion. You must remove both layers in order for the touchpad and reader to function properly.

  • Page 27: Troubleshooting

    2011/11/28 E2.5 Installation Manual for XL600GPRS Troubleshooting Monitoring Station is not getting ANY video but is getting signals: Good communication between the MotionViewers and the Control Panel is key to getting successful video to the monitoring station. During mounting of any device on your Videofied system you must run the Radio Range/Device Locating test to ensure that the mounting location is with-in range of the Control Panel.

  • Page 28: Panel Saying Connected With Monitor Station

    2011/11/28 E2.5 Installation Manual for XL600GPRS No Signals are received at the Monitoring Station Run GPRS Level GPRS Error test in Maintenance GPRS Level GPRS Level 3/5-5/5 0/5-2/5 GPRS LEVEL RECEIVED GPRS errors can be found on Page 16 of the manual. Check the panel event Your signal strength must be 3/5 log.

  • Page 29: Unable To Record Device Or Getting 'Pairing Failure' Error

    2011/11/28 E2.5 Installation Manual for XL600GPRS Unable to record device or getting ‘Pairing Failure’ error This usually occurs when the device still has a pairing key from a previous system or setup. To perform a pairing key override: 1. Remove all batteries from the device. 2.
  • Page 30 2011/11/28 E2.5 Installation Manual for XL600GPRS 30 | P a g e...
